Garage Door Weather Strip
Click the link below for an overview of garage door weather seal.

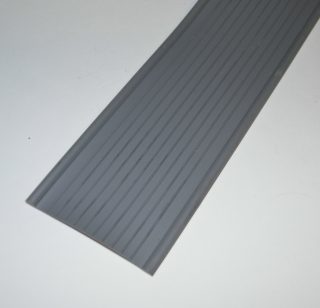

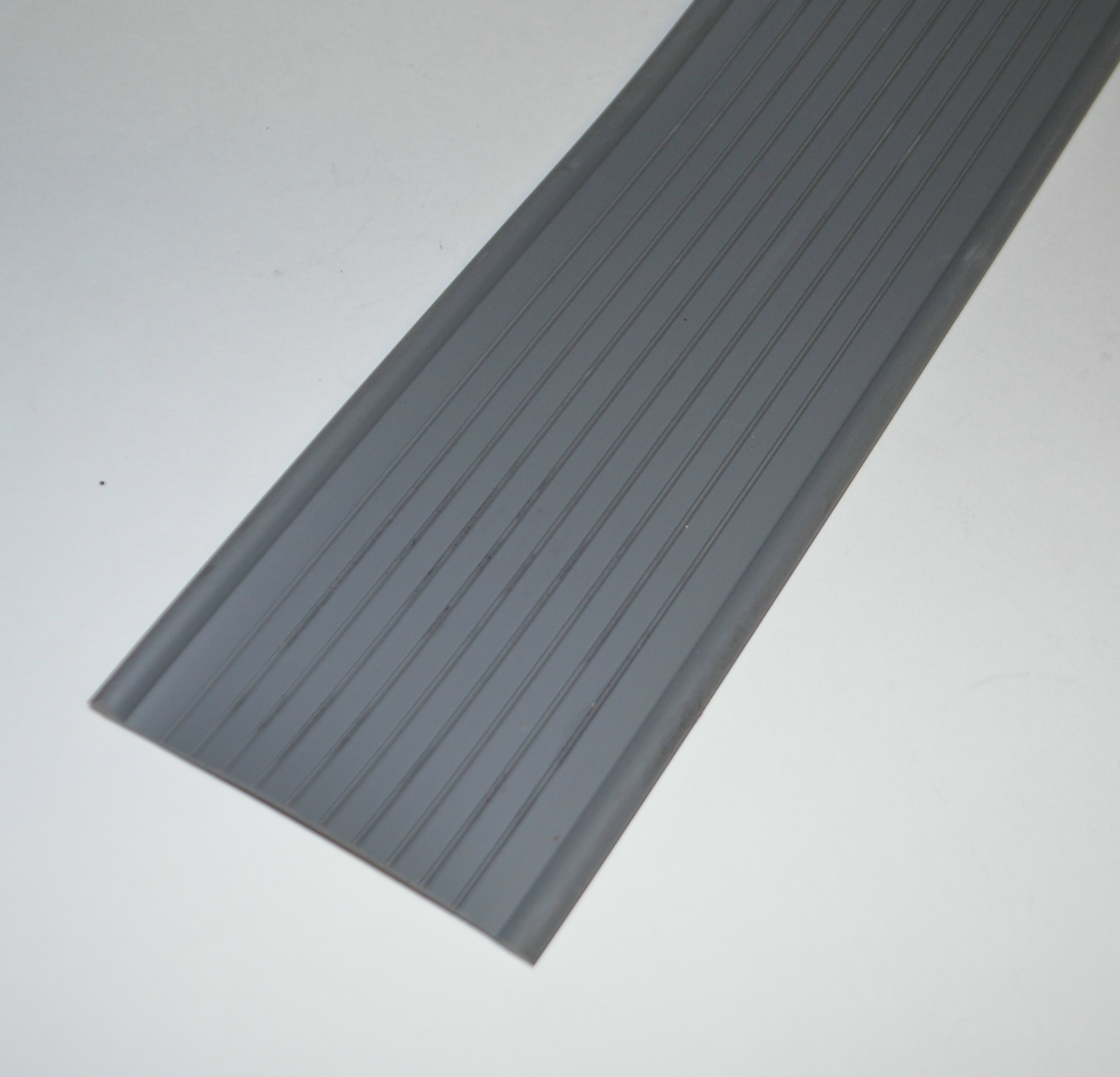

Garage door bottom seal.
Heavy duty high quality vinyl.
Choose from 3″ OR 4″ wide.

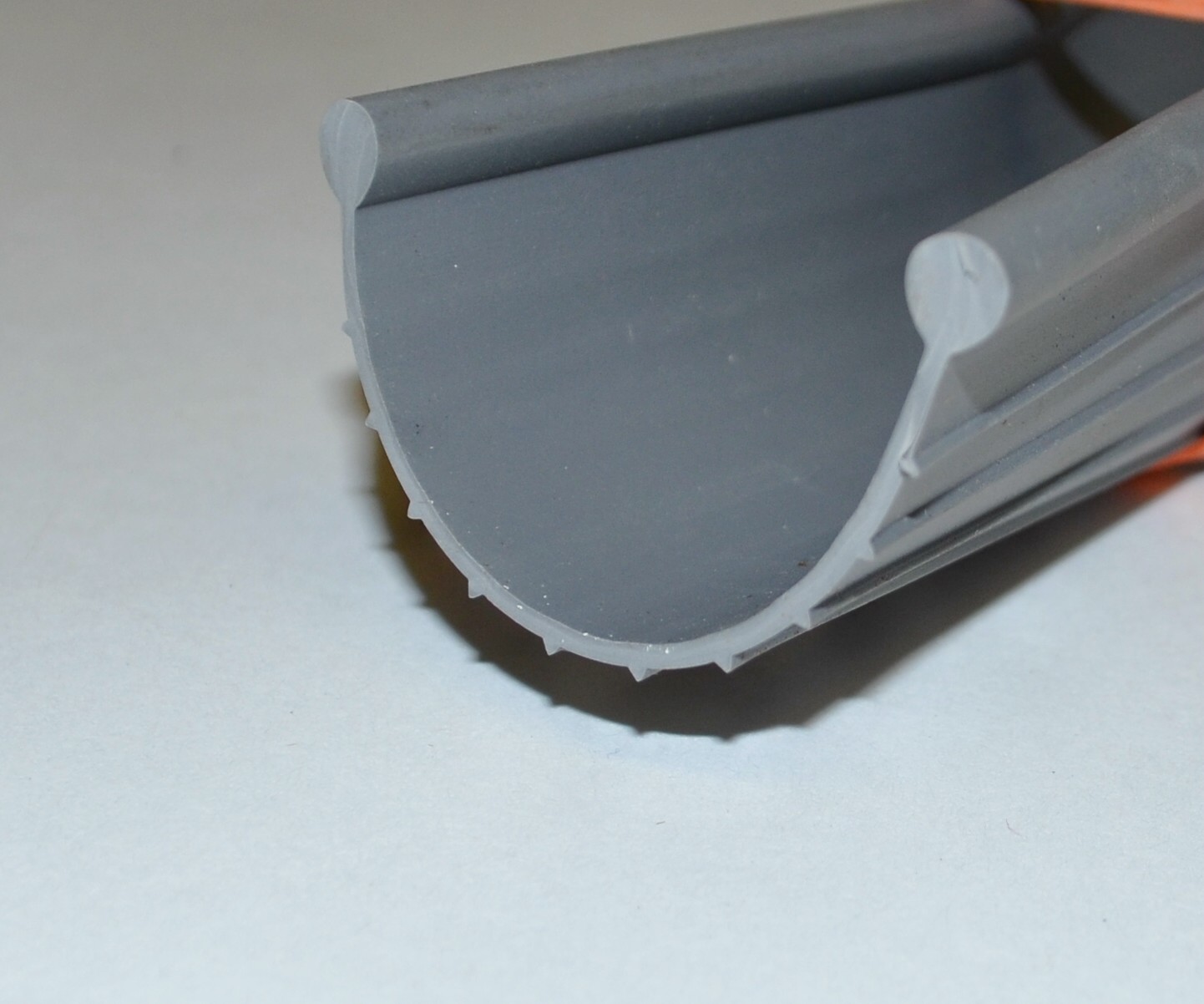

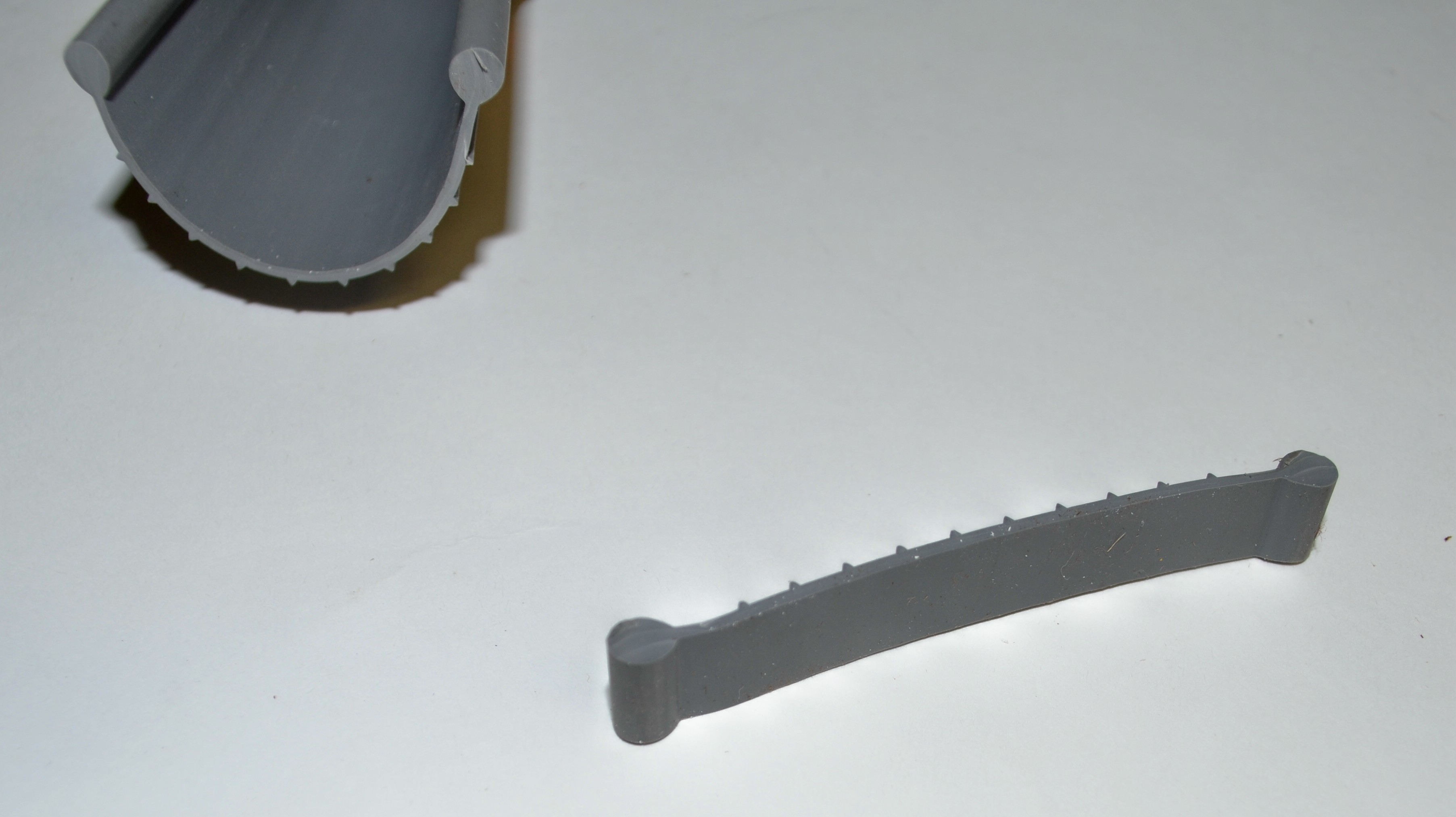

Round bead ends measure 3/16″ – Gray, also available in Black PVC. Black available in up to 6″ wide.
Ribbed on the outside to help prevent freezing to the floor.
Designed to slide into a round channel on the bottom of the door.
The beads are perfectly round, do not confuse with the similar Wayne Dalton style that is not completely round.
This garage door bottom weather stripping is an exact match to Taylor brand and other garage doors.
All lengths are 2″ minimum longer than lenght stated for a perfect fit.
We also stock the smaller bead seal common to Finish Line Doors.
If you have a situation that requires a wider seal, or if there is a gap issue that
will not be corrected with this standard weather seal, consider replacing the bottom retainer to a
more standard 1/4″ T style. That will allow you to use a wide variety of types and styles
of weather seal. We stock many different bottom retainers and a wide variety of weather seal in the common 1/4″ style.
Easy to install, remove old weather seal, clean and straighten the bottom retainer if needed.
Check the ends of the retainer, they may have been pinched at time of original install, open those ends up if needed.
Spray lubricant into the channels of the retainer. One person guides the seal into the tracks, one person pulls the
weather seal. Do not stretch the weather seal tight, move it along the bottom of the door until it is not
being stressed or stretched, cut off any access and lightly crimp the ends of the channel
to hold the garage door bottom weather stripping in place.
