Description

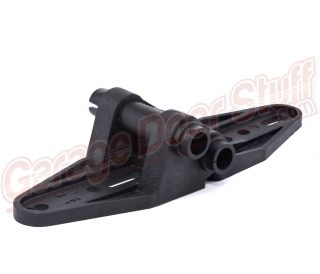

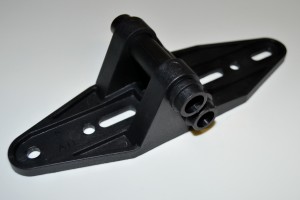

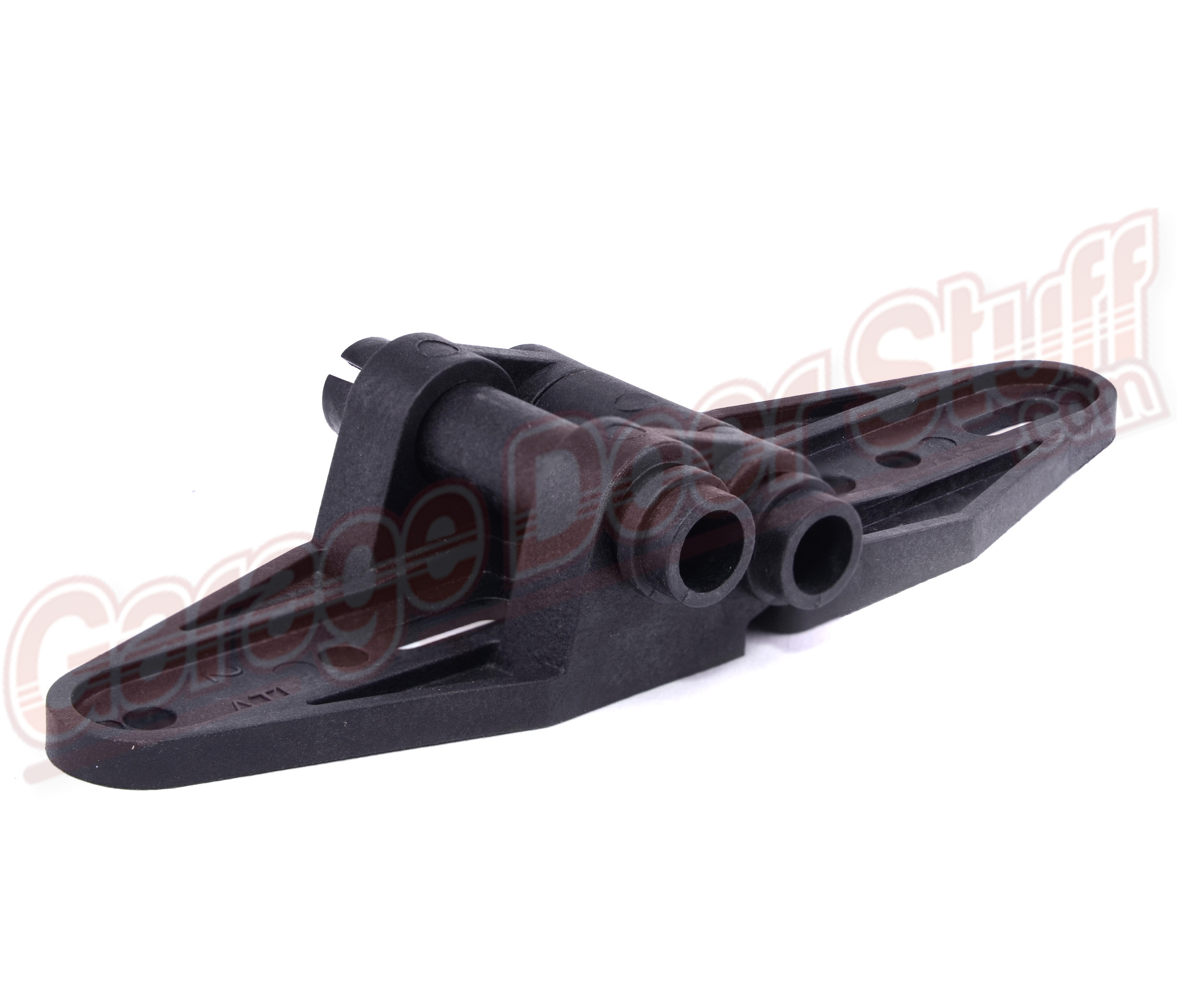

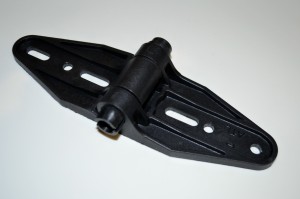

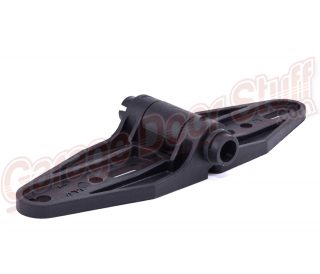

Nylon garage door hinge
Fiberglass reinforced Nylon
Rated for doors up to 400#
Corrosion resistant
Standard mounting pattern
7-3/4″ Long x 2-1/4″ – barrels = 3″ Wide
We sell these in a kit that includes rollers and lube
Here, you can add hinges for doors requiring
additional hinges to Quite Kit
Or purchase these hinges separately.
The # 1 hinge is used as a center hinge and also as an end hinge
#2, – #3, & #4 Hinges are end hinges
End hinges are stepped away from the door from the
bottom of the door moving up.
Your existing hinges are numbered, replace with the same # hinge.
# 4 is the highest these hinges go.
These hinges will quite the door down considerable, used with our
nylon rollers and lube the door will be quieted down up to 75%
