1″ Sealed Bearing


Free Shipping On This Item

Garage Door Bearing

Truck door bearing



1″ Sealed Bearing

1″ Sealed Bearing

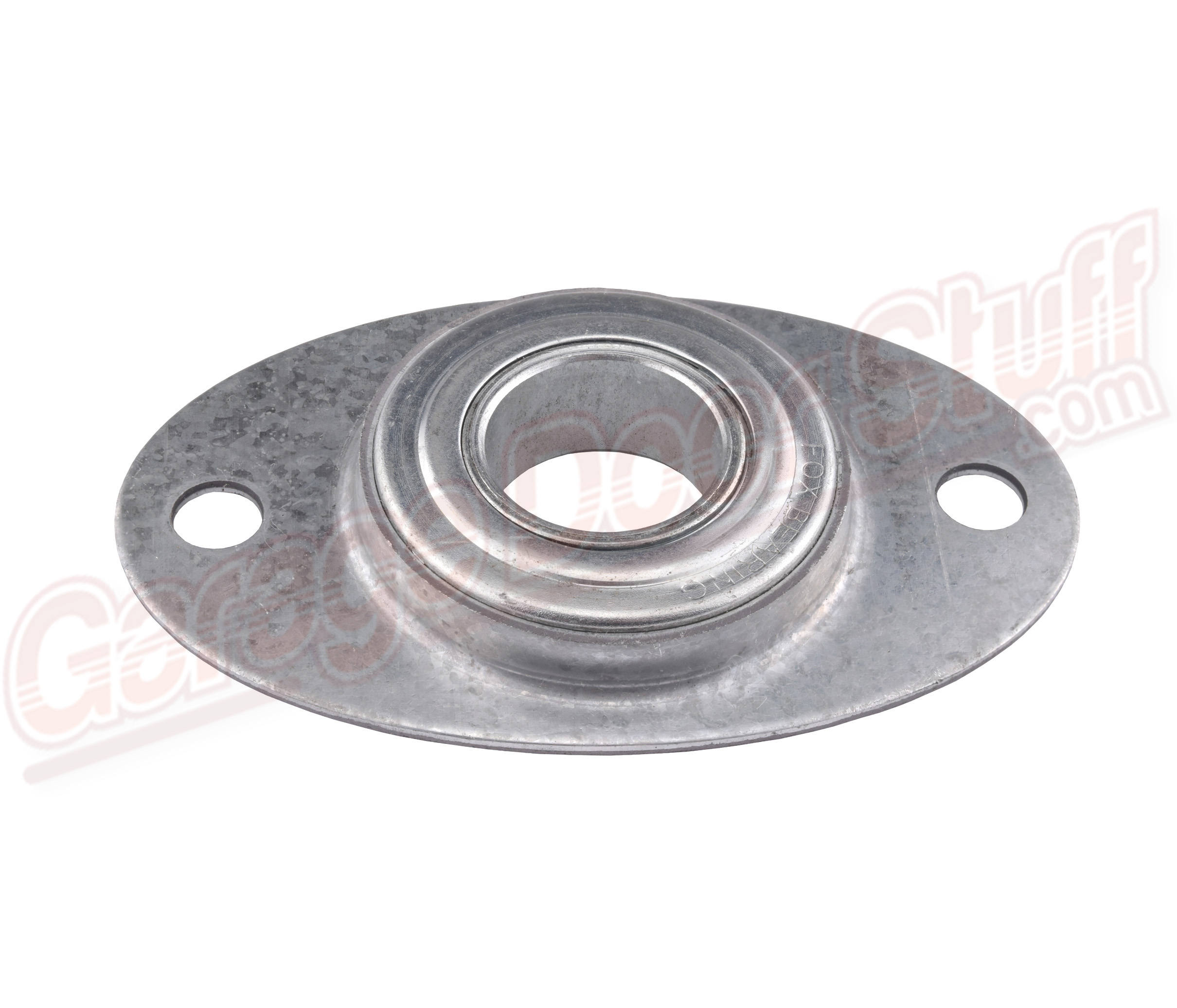

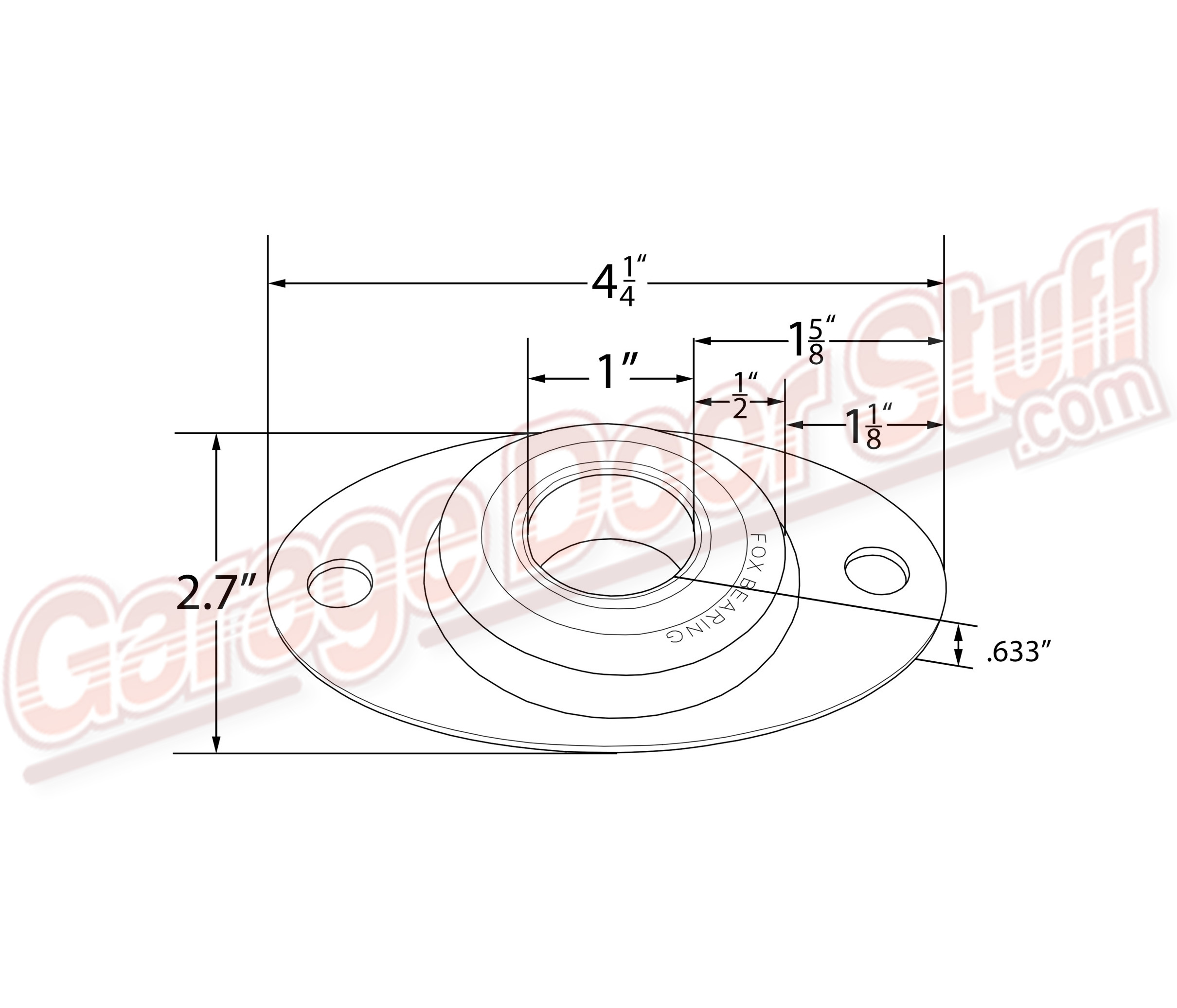

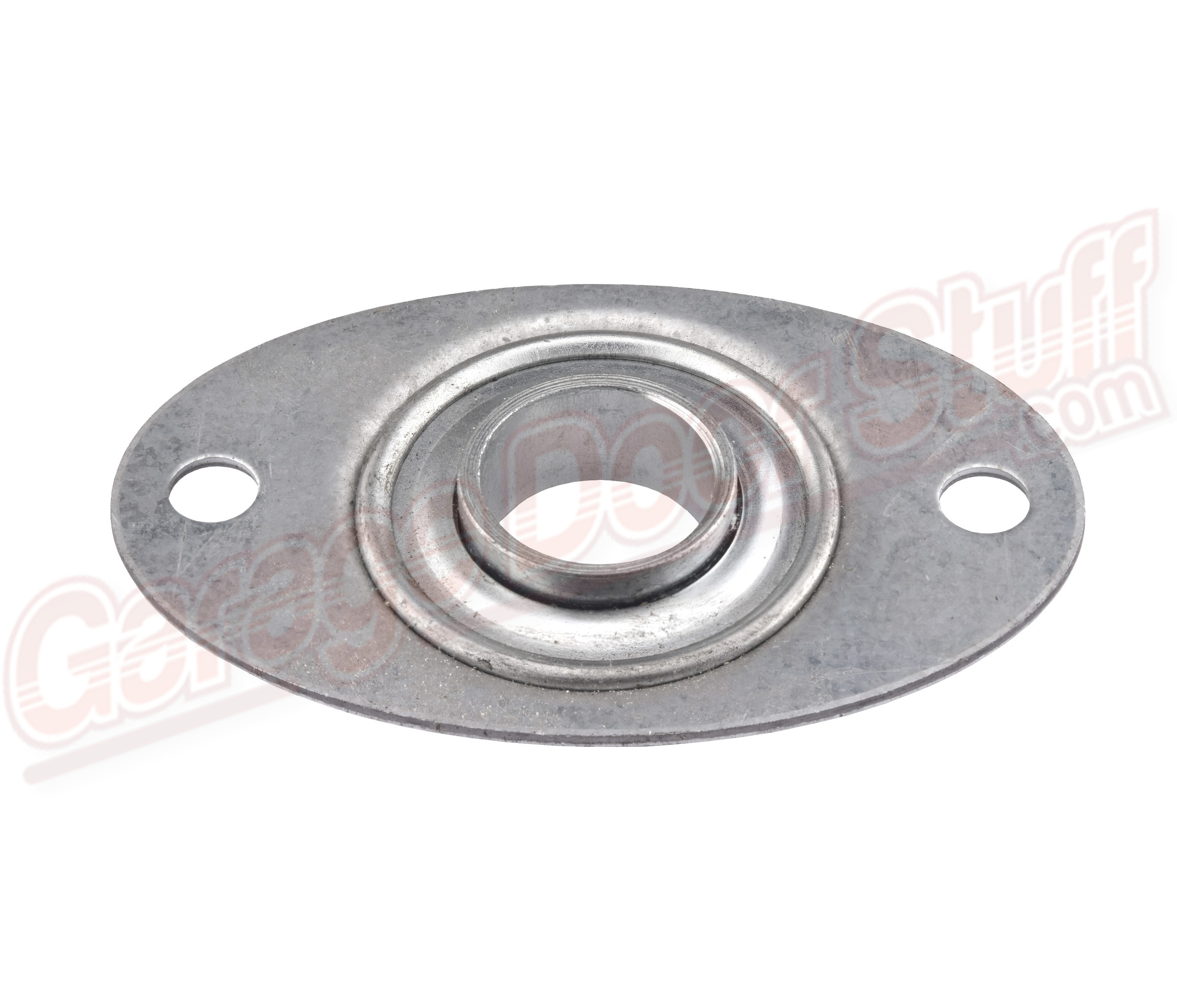

1″ ID X 2″ OD Sealed Steel Bearing

Oval Flange / Plate

Mounting holes are 3/8″ ID

3-3/8″ Center to Center

.077 Thick (plate)

1″ Sealed Bearing

Used in a variety of garage door, truck & trailer door applications. Common to garage doors, truck doors, gates and other applications.


Used as a end bearing, center bearing and with other mounting hardware as a support bearing.

The bearing, with the included flange, is great for repairs in tight conditions where removal and installation of just the bearing itself is not feasible.

Sliding this bearing with attached plate onto the shaft will allow you to use the existing mounting holes or drill or weld as needed to get a bearing in place in a pinch.

We carry plenty of these on all our trucks and these have got us out of binds more than once. This is a very nice bearing & bearing plate option that can be used in a multitude of situations.

Common to garage doors and trailer doors but will work on many other applications.

Heavy duty for all light commercial, residential, truck & trailer doors

These bearings rarely get properly lubricated, this inexpensive part should be replaced anytime you are replacing springs or cables.

We offer discounts on quantities of more than 25, just call or email us for a QUICK quote

For any questions or special ordering please Send us an email or call.
1″ Sealed Bearing

Additional information

Weight .8125 lbs
Dimensions 4 × 3 × 1 in
