Garage Door Opener Mounting Kit

Install your garage door opener like the professionals do.

Material provided with the garage door opener is inadequate and will not allow you to properly mount your garage door opener.

This kit gives you everything you need to attach the garage door opener to the ceiling or structure.

This kit also includes a Garage Door Opener Mounting Bracket to attach the opener to the garage door.
It is imperative that the garage door opener is properly attached to the garage door, this garage door opener bracket will do just that.

To get a closer look at the garage door opener mounting bracket, click here –  GARAGE DOOR OPENER BRACKET

We also sell this mounting kit WITHOUT the door bracket here – GARAGE DOOR OPENER HANGER KIT

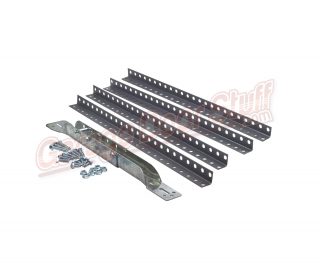

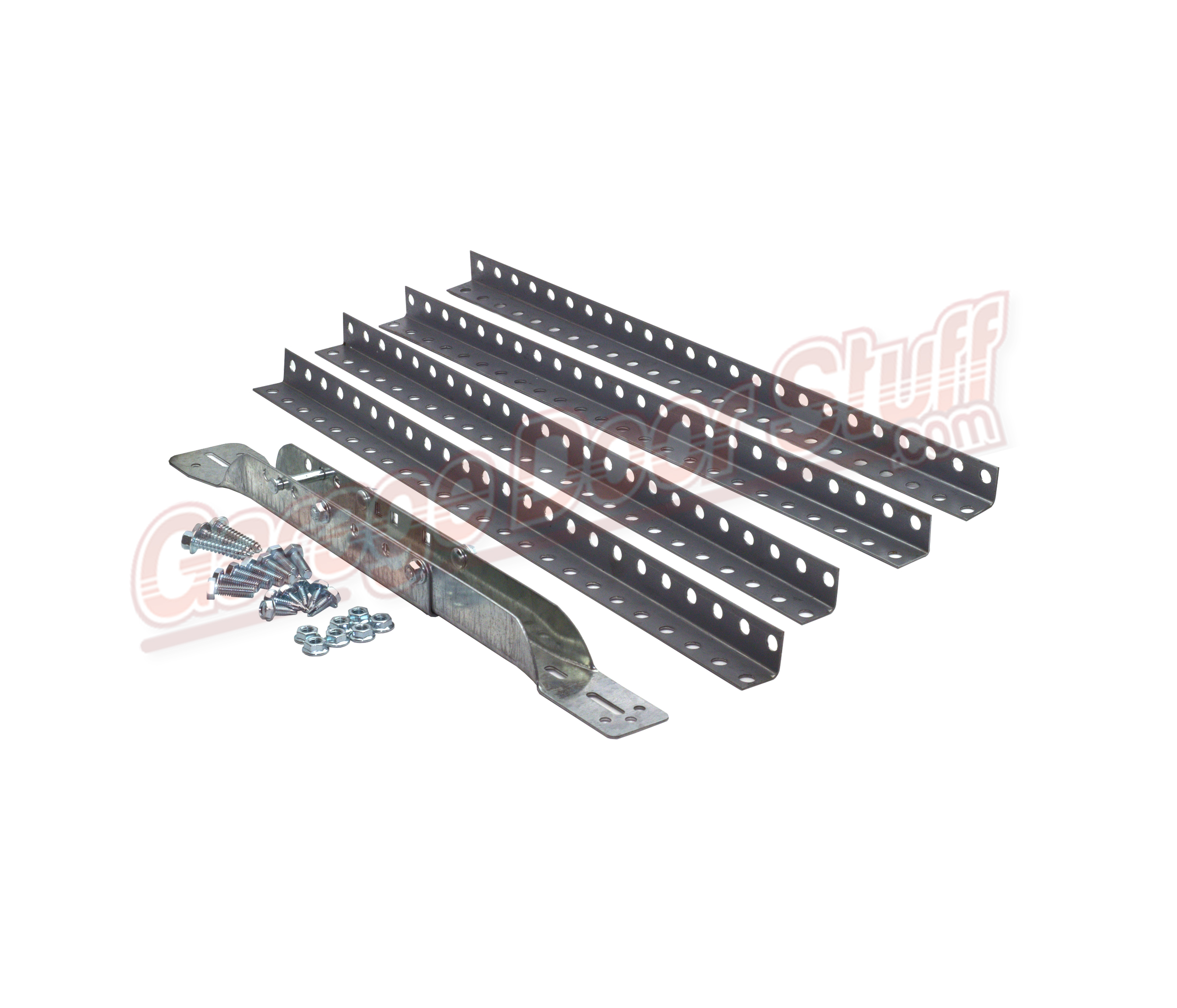

Included in this kit:

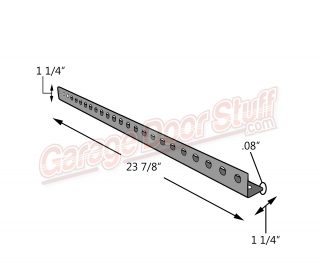

4 – 24″ Long – 1-1/4″ X 1-1/4″ Punched Angle

3 – 5/16″ X 1-5/8″ Lag Bolts

7 – 5/16 Bolts

7 – 5/16 Nuts

6 – Self drilling / tapping screws

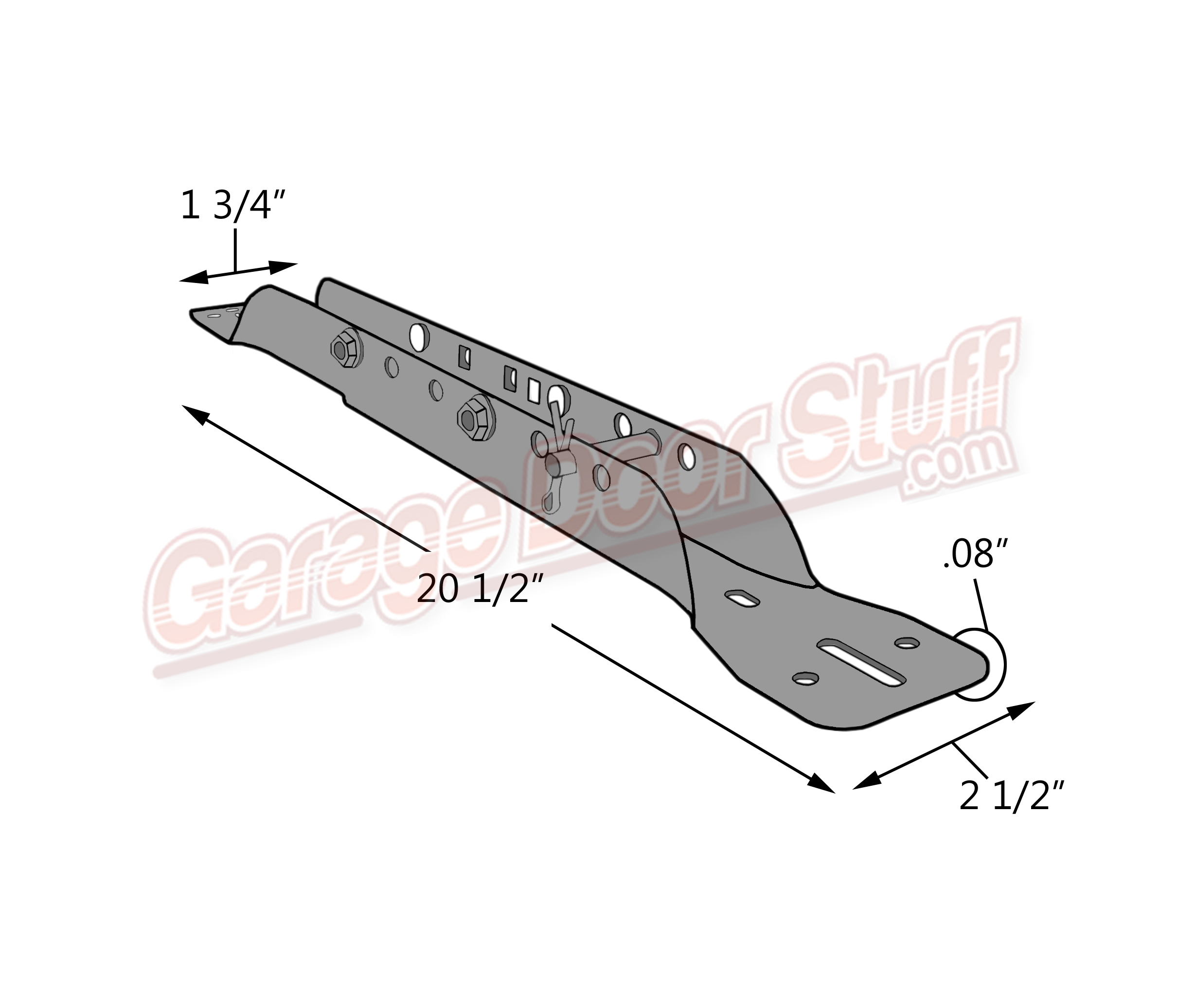

1 – Garage Door Opener Bracket

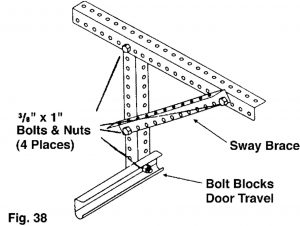

angle kit guide

Typically the material supplied with garage door openers is light weight, flimsy and just not adequate to properly fasten the garage door opener to the ceiling. The photo above is the correct method of supporting and bracing your garage door opener. Span across the ceiling fastened to the joist, 2 drops from the span to the garage door opener and a brace placed at an angle to prevent side to side movement.  We include a 4th length of angle in case you need to extend either the drops of the span. Using our garage door opener mounting kit will mount your garage door opener securely and properly.

This method of installing your garage door opener will keep the opener in place and prevent it from flexing and moving. Movement and flex can cause issues, primarily wear of the drive mechanism.  All of the parts associated with the drive can be effected by movement of the garage door opener, regardless is the opener is chain, screw or belt drive. Wear to the carriage and associated parts and the chain, screw or belt is often caused by an incorrectly installed or supported garage door opener. A properly installed and supported garage door opener will increase the life span of the garage door considerably. It is well worth the additional cost and effort to install the opener correctly and if it is already installed with thin and flimsy materials to replace them.

Garage Door Opener Mounting Kit

Additional information

Weight 7 lbs
Dimensions 26 × 4 × 2 in
