Garage Door Weather Stripping T Style
GARAGE DOOR BOTTOM WEATHER SEAL
Click the link below for an overview of garage door weather seal.
Garage Door Weather Seal Overview
Heavy duty, high quality vinyl astragal weather stripping.
The thickness of this product is key, please do not be duped by inferior products
We carry only the best, heavy duty weather seal.
We use this exact product in the field for both commercial & residential doors.
We sell only quality, heavy duty weather seal, this particular product is made in the USA.
This is the most common type, style and sized garage door weather seal in use today.
1/4″ T – U Shape, .060 – 1/16″ Thick.

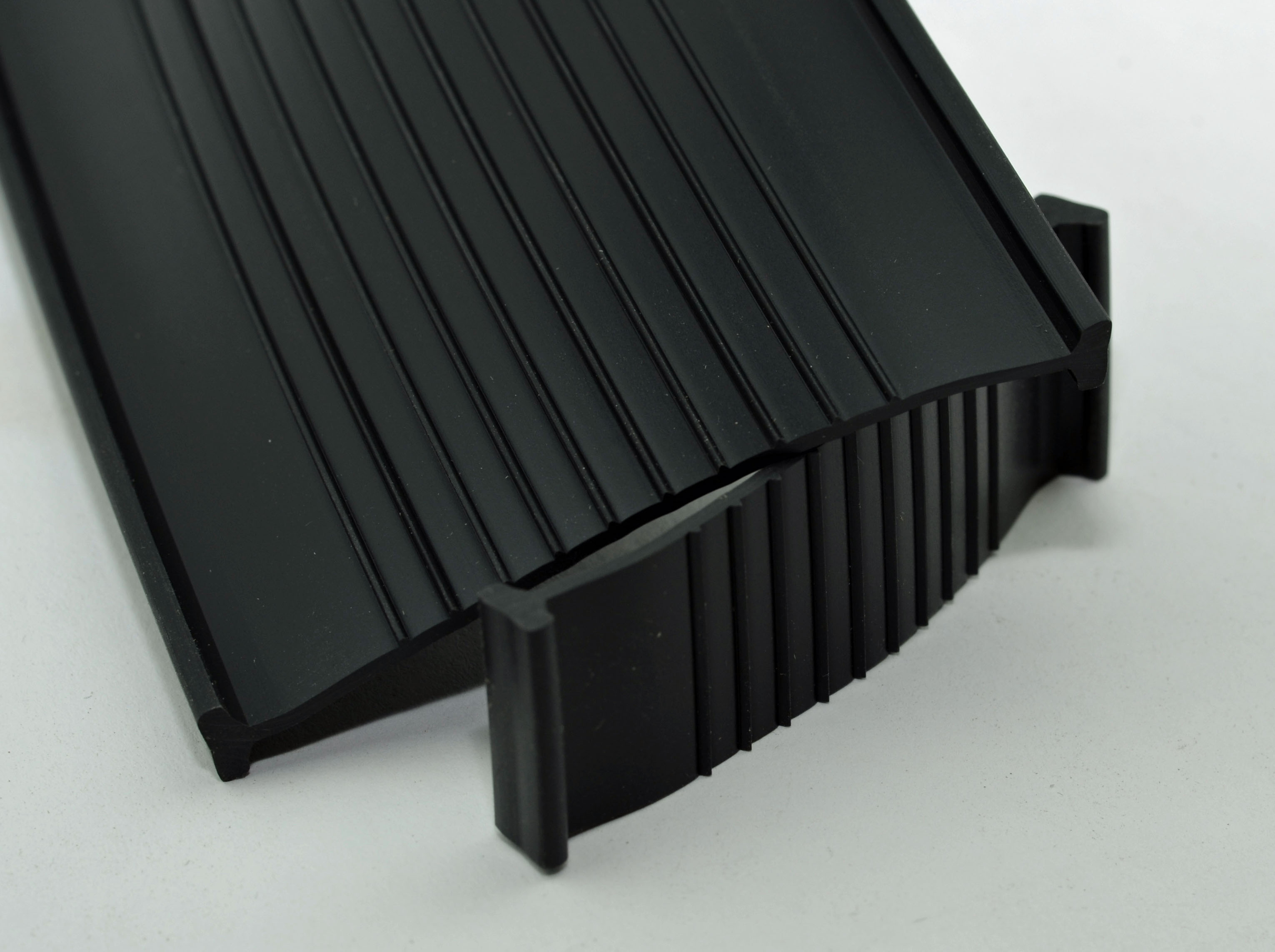

Multiple ridges on the outside of the seal help to
prevent freezing to the floor.
We cut all lengths a minimum of 2″ longer than the size listed for
a perfect fit.

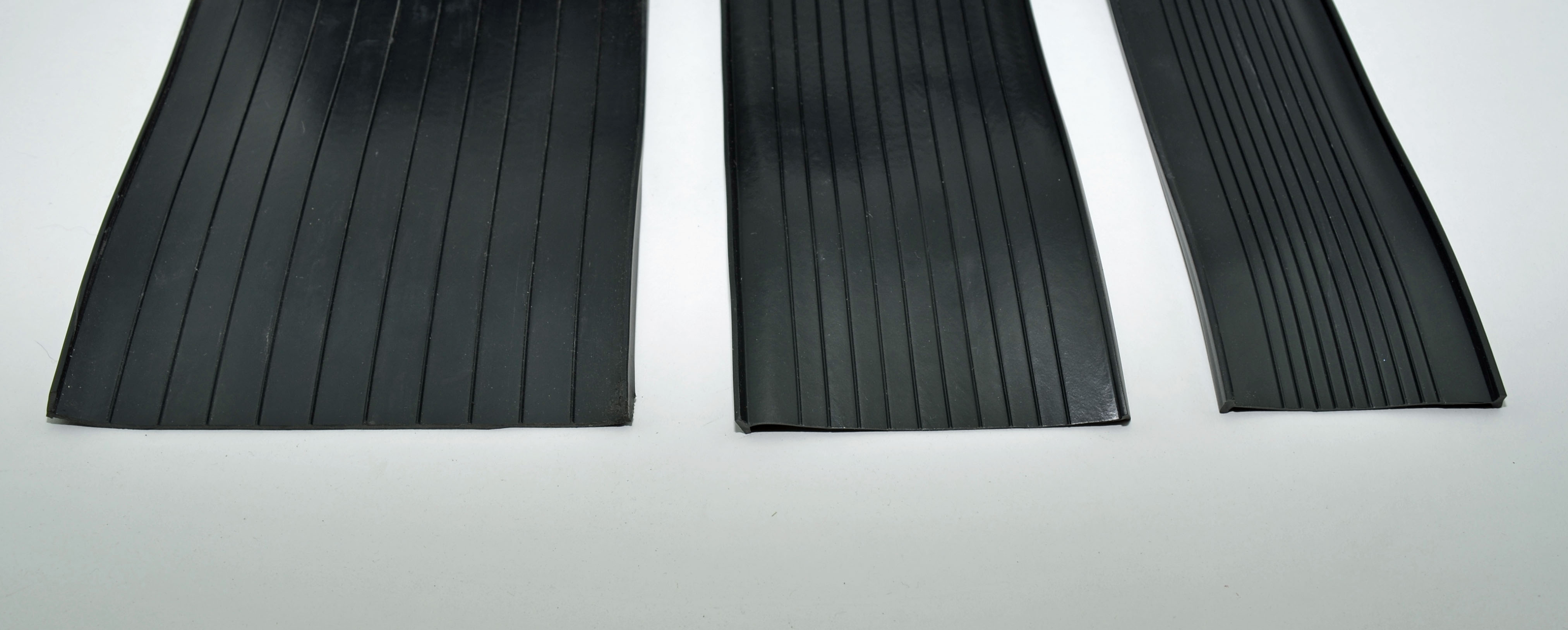

Choose from 3″, 4” & 6″ wide version for any floor type or job site condition.
Click the photos to enlarge.

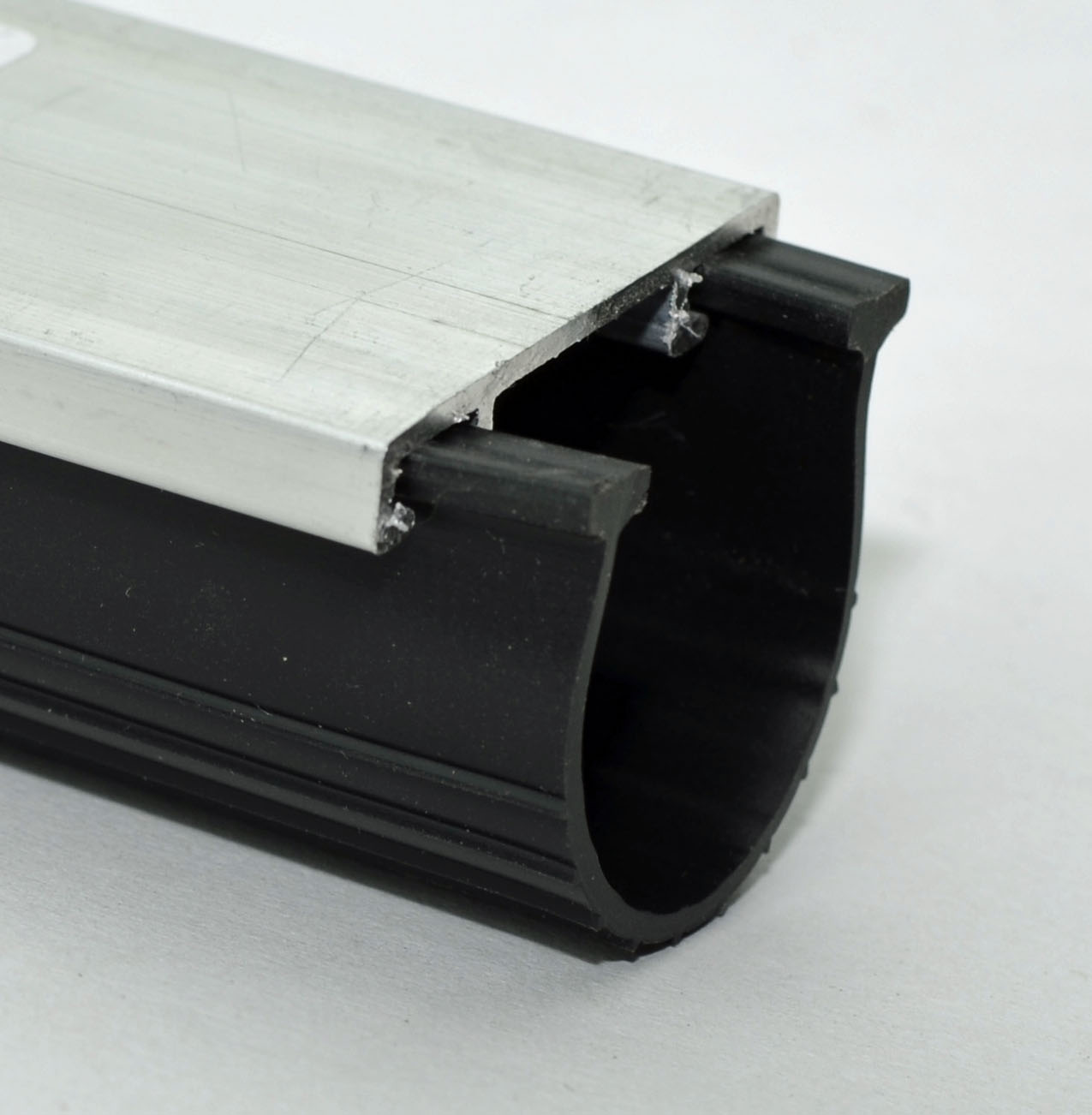

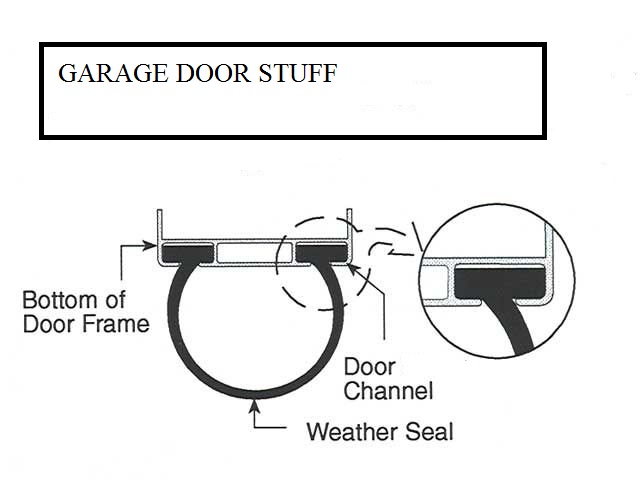

Additionally, we carry a wide selection of bottom retainers that
accept this type and style of weather seal. Replacing the existing retainer
and using this style of weather seal will allow you to
upgrade an older door that may have poor or unavailable weather seal.
This is a very robust product with a surprising long life. Good for any weather
conditions, hot or cold.
Easy to install, remove old weather seal, clean and straighten the bottom retainer if needed.
Check the ends of the retainer, they may have been pinched at time of original install, open those ends up if needed.
Spray lubricant into the channels of the retainer. One person guides the seal into the tracks, one person pulls the
weather seal. Do not stretch the weather seal tight, move it along the bottom of the door until it is not
being stressed or stretched, cut off any access and lightly crimp the ends of the channel
to hold the garage door bottom weather stripping in place.
