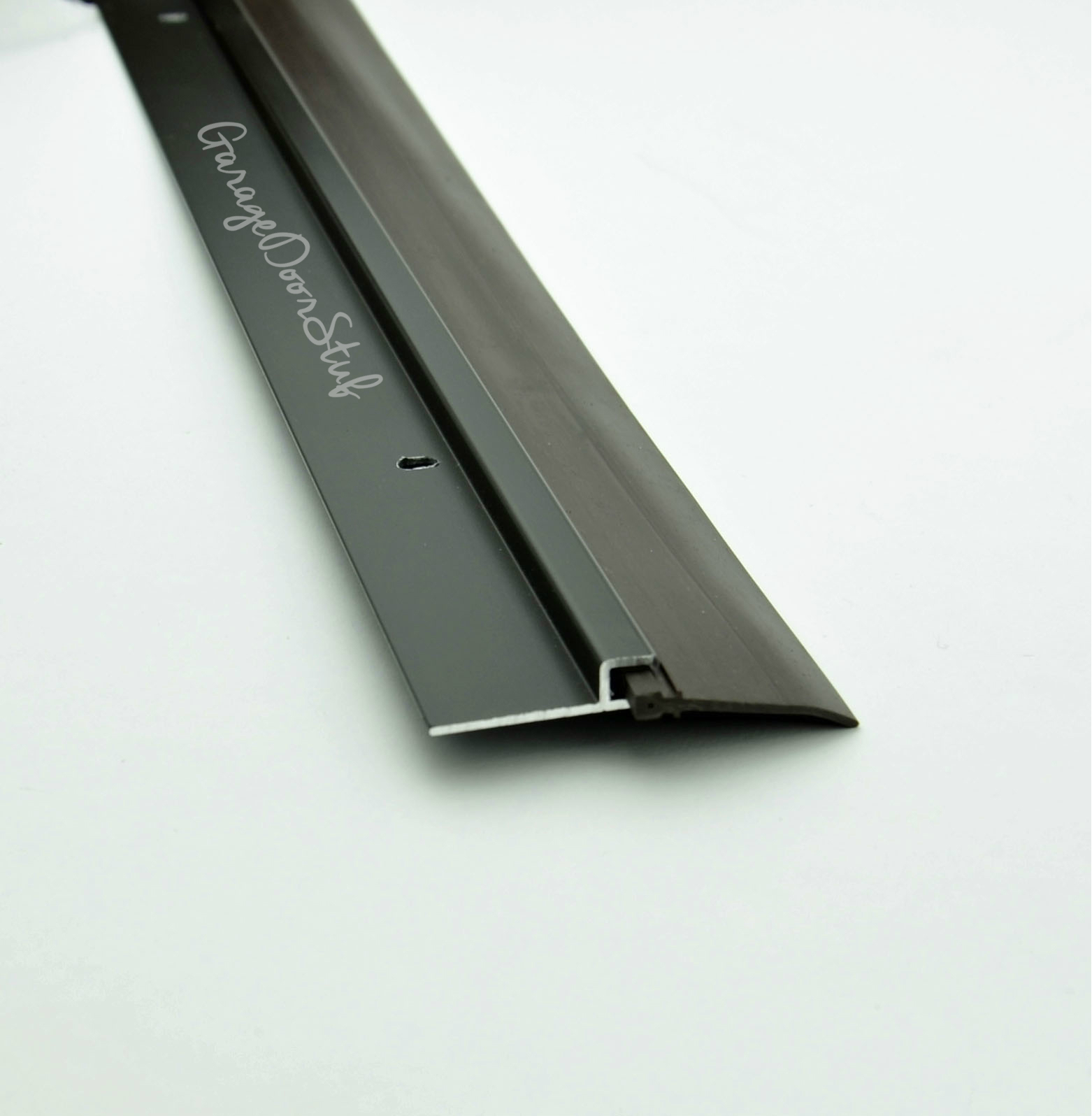

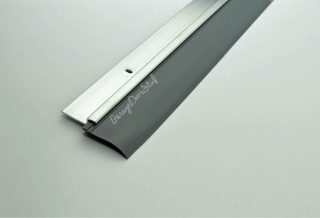

Commercial Door Sweep


This item has a shipping fee due to its size/weight

Door Sweep

Weather Seal

Door Insulation

SKU: N/A Category:


Commercial Door Sweep

Commercial door sweep, complete kit, mounting hardware and instructions included.

Door sweeps helps keep out the elements and unwanted pests by creating a barrier and seal between the outside and the door.

Aluminum weather seal retainer and a vinyl weather seal, available in mill (aluminum) or brown finish in 3 or 4 foot widths.

Kit Includes:

3′ or 4′ x 1- 1/4″ Brown or Mill Pre-Punched Retainer
3′ or 4′ x 1-3/8″ Door Sweep
Matching Screws
Quick Installation Guide


We offer several other door sweep options here – DOOR SWEEPS


Very easy to install

Door Sweep is installed on the inside of the door.

Remove any existing door sweep. Close the door and working from the inside, position the door sweep on the bottom of the door, keep one edge flush with the edge of the door and mark the other end of the retainer of the commercial door sweep at the other edge of the door. Pull the weather seal out past the mark on the retainer where you will be cutting. Using a hack saw, cut the retainer, then pull the weather seal back into place and leave 1/2″ of extra weather seal sticking out of both ends, then cut the weather seal. After the install is complete you will trim off any excess weather seal, it is best to use a utility knife with a new, sharp blade to cut the weather seal. Now, position the sweep on the bottom of the door with both edges of the retainer even with the edge of the door, bring the sweep down to the floor. With the sweep making contact with the floor, mark all the pre drilled slots onto the door. Typically, drilling pilot holes at the bottom of the slotted mark on the door will allow you the perfect amount of adjust-ability downward with the sweep to get a perfect seal along the entire bottom of the door. Once all the holes are pre drilled, simply install the sweep and press the sweep down so that the screws are at the top of the slots on the sweep and tighten the screws. Once the door sweep is installed trim the weather seal as needed and lightly crimp the retainer on the ends to hold the weather seal in place.
These sweeps can be used for interior and exterior doors, doors such as Masonite exterior doors, modern door, home door, screen doors, back door, side door, garage entry doors, entrance doors, double doors. This is a great upgrade to any entry door and the energy savings realized will quickly off set the low up front cost of the door sweep


Consider a brush type door sweep if you have an irregular floor or other issues in sealing to the floor.

Call or email if you need any help in deciding which type of seal you need we’re happy to help, sending us photos via email is a great way for us to help you determine the correct products for your needs.

Commercial door sweep


Additional information

Weight 2 lbs
Dimensions 36 × 3 × 2 in

3', 4'


Mill, Brown
