Garage Door Pulley Cast Iron

$13.99$599.99

Garage Door Pulley

Cast Iron Pulley Wheel

Cast Iron Barn Pulley

Clear
SKU: 3CIPLY Category:

Description

Garage Door Pulley Cast Iron

Cast Iron Pulley

Cast Iron Sheaves

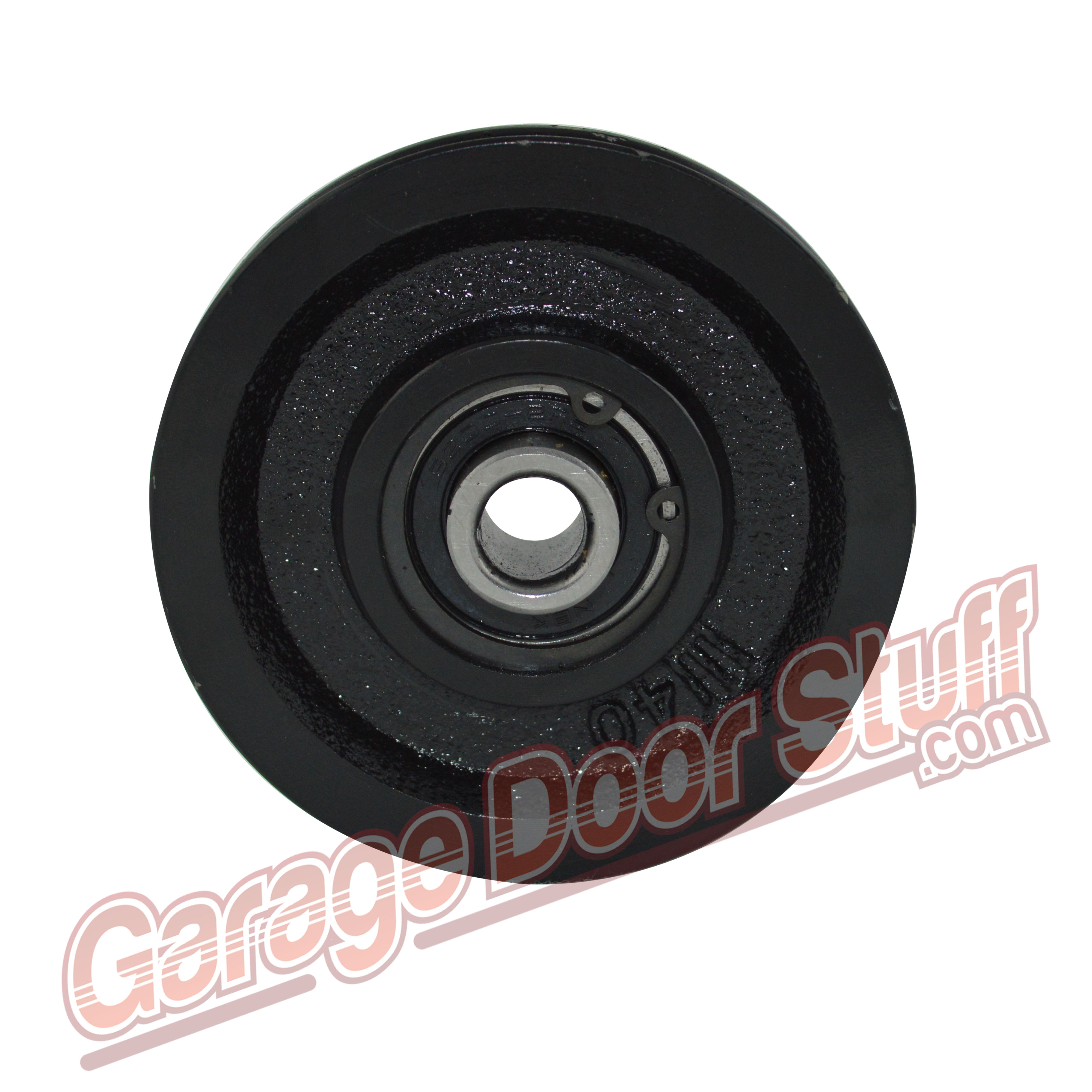

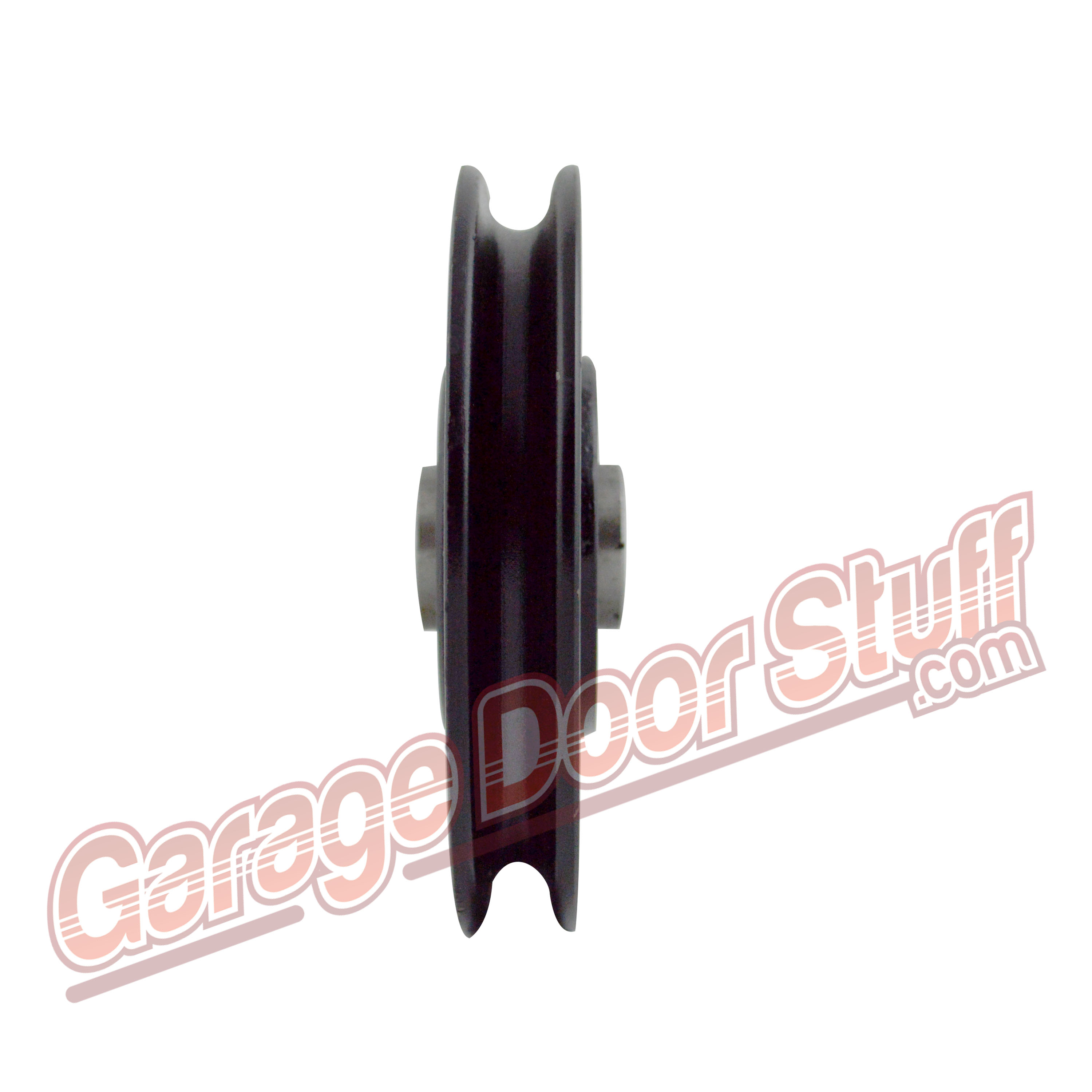

3″ Cast Iron Pulley

Dimensions:

.399″ ( 3/8+)  Bore

1/2″ Wide

3″ Across

Sealed ball bearing pressed into the sheave.

Accepts up to 3/16″ Cable



We stock other pulleys including another cast iron pulley here – PULLEY – SHEAVES

We stock cable in any length up to 500′ in:

1/16″, 3/32″, 1/8″, 5/32″, 3/16″ & 1/4″

See our cable and cable fittings here – GARAGE DOOR CABLE

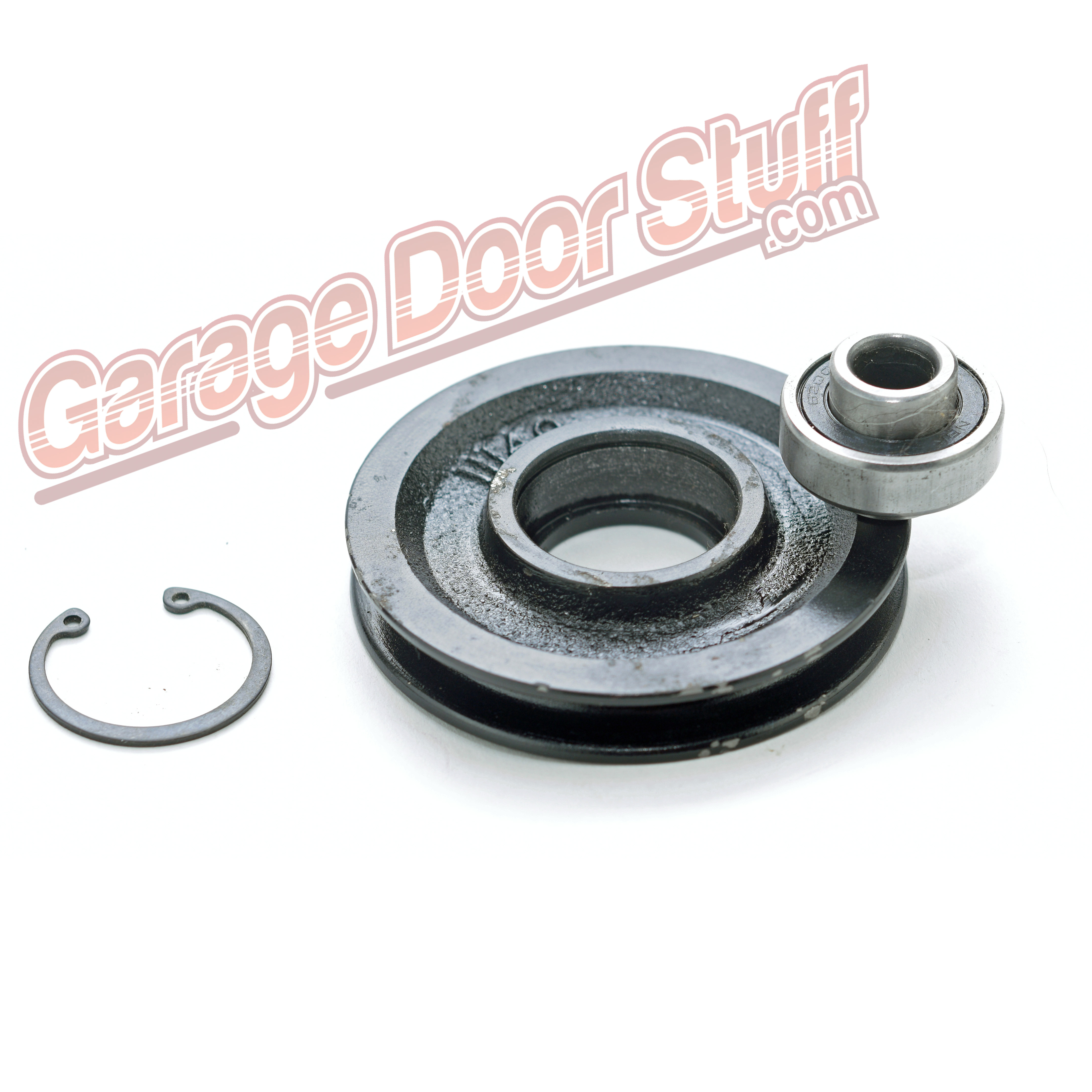

Comes with a sealed bearing held in place with a  CIR Clip that can be easily removed  so you can use bolts or other means of fastening or attaching. Bearing is pressed into the pulley but is easy to tap out.

There is a shoulder on one side that holds the bearing in place, that shoulder can be ground out if needed, you will then have a 1-3/16″ opening. That is if you need to remove the bearing to customize this pulley.

This is a heavy duty cast iron pulley wheel that can be used for any number of uses.

Commonly referred to as a Pulley and or a Sheave this is an item that has been around a very long time and as stated has near unlimited uses and potential. If you need a heavy duty pulley this may be just what you need. These are good to have on hand, great for rigging up material lifts using rope but typically used with cable.

We stock what we sell and we ship as fast as possible, same or next working day six days a week in fact. We know you need your items and we take pride in shipping all our orders as we can. If you have any questions about an item or if you have any special needs give us a call or drop us an email and we will be glad to help. If you have a special project and perhaps some of our items can be used, send us some drawings if you need some feedback or input. Many of the things we carry can be used for things other than garage doors, garage door openers and gates.

Garage Door Pulley Cast Iron

Additional information

Weight .5 lbs
Dimensions 3 x .5 x 3 in
3" Cast Iron Pulley

1 Pulley, 2 Pulleys, 4 Pulleys, 10 Pulleys, 25 Pulleys, 50 Pulleys, 100 Pulleys
