3″ Garage Door Pulley With Cable Restraint – Heavy Duty

$9.99$184.99

Garage Door Pulley

Garage Door Sheave

Clevis Pulley

Clear
SKU: 3HDPLYWSTRAPGD Category:

Description

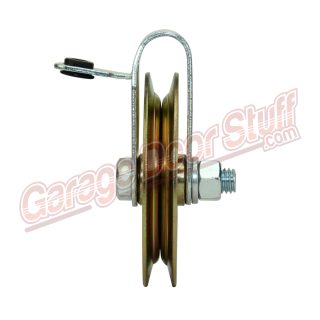

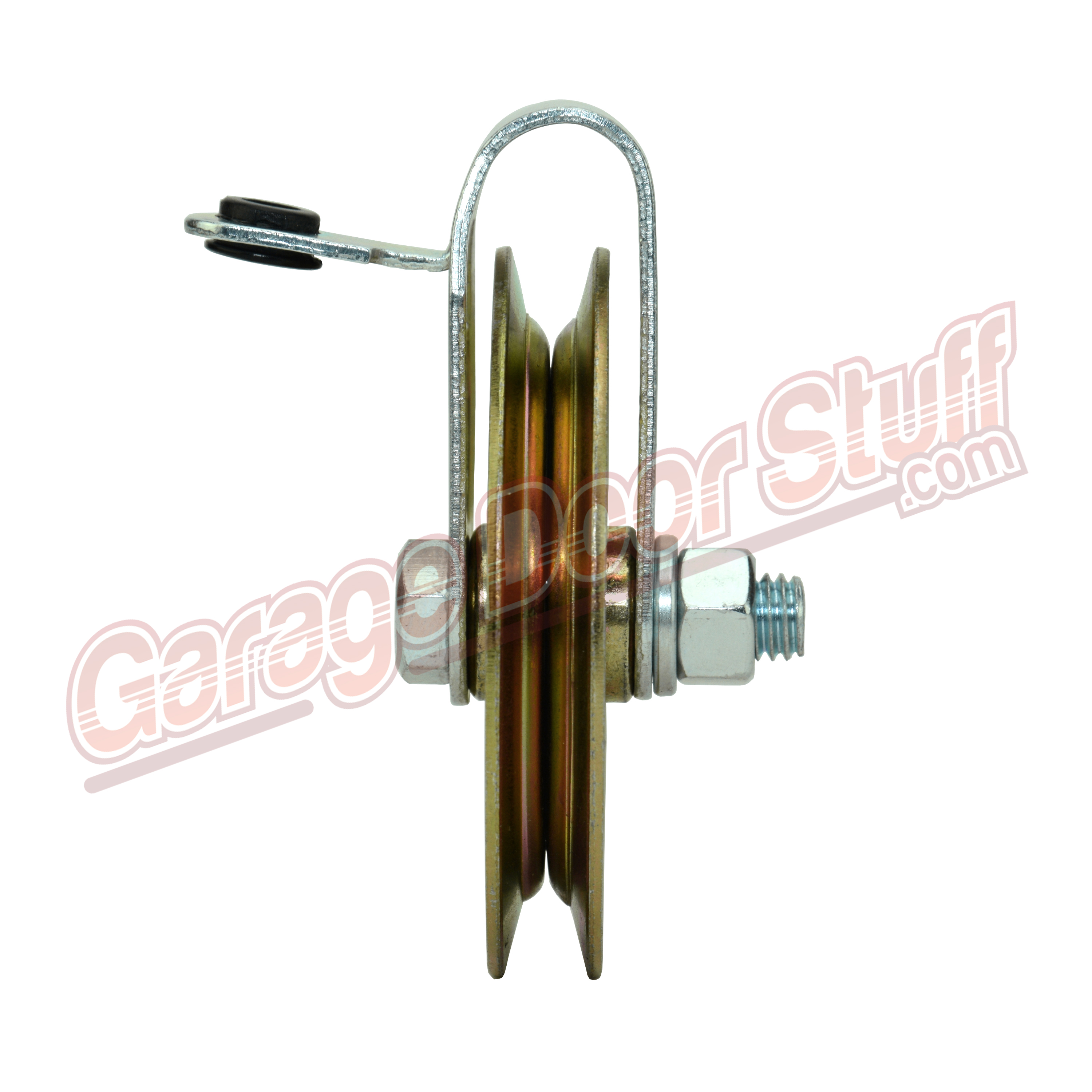

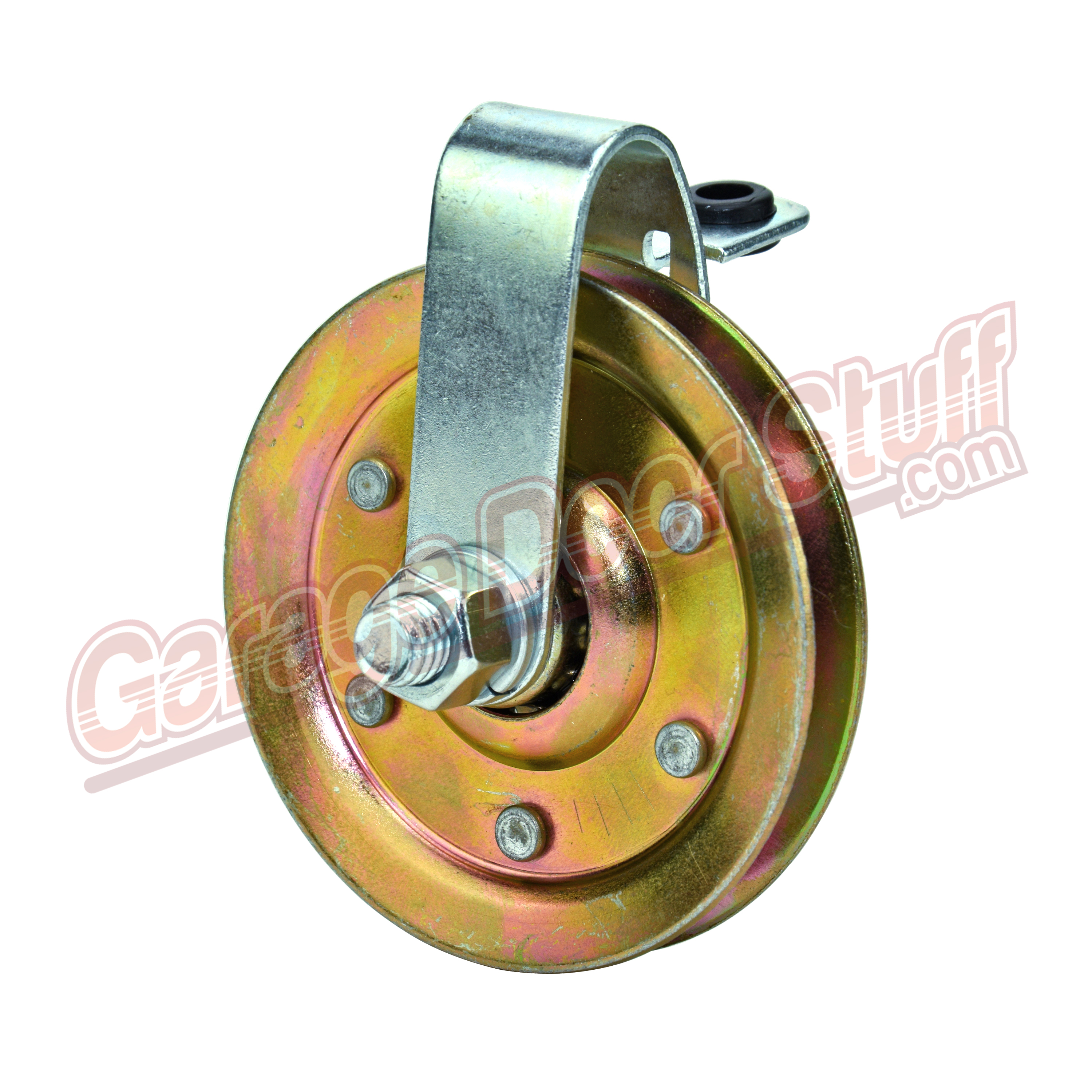

3″ Garage Door Pulley With Cable Restraint – Heavy Duty

Garage Door Clevis Pulley – 3″ – Heavy Duty

Heavy Duty Garage Door Spring Pulley

3″ Heavy Duty Sheave

Clevis Pulley with fork, 3/8 Bolt, Nut & Lock Washer

We stock this pulley with out the fork here – GARAGE DOOR PULLEY

Rated at 200 Pounds @ 10K Cycles of a 8′ Tall Overhead Garage Door

3/8″ Bore

1/2″ Wide

3″ Across

Ball bearings

6 – pressed rivets holding the pulley together

Accepts up to 1/4″ cable but we use this pulley for up to 3/16: max diameter cable.

We stock other pulleys including another cast iron pulley – CLICK HERE

We also stock cable in any length up to 500′ in:

1/16″, 3/32″, 1/8″, 5/32″, 3/16″ & 1/4″

Center race holds 9 ball bearings that are pre lubricated but will still need periodic lubrication.

Heavy duty pulley wheels can be used for any number of uses. On garage doors it can be used as a fixed stud pulley or by adding a pulley strap, used as a clevis pulley.

Commonly referred to as a Pulley and or a Sheave this is an item that has been around a very long time and as stated has near unlimited uses and potential. If you need a heavy duty pulley this may be just what you need. These are good to have on hand, great for rigging up material lifts using with rope for many different uses but typically used with cable.

3″ Garage Door Pulley With Cable Restraint – Heavy Duty
