3/8″ Pan Head Bolt


Pan Head Bolt

Garage Door Bolt


SKU: 154551 Category:

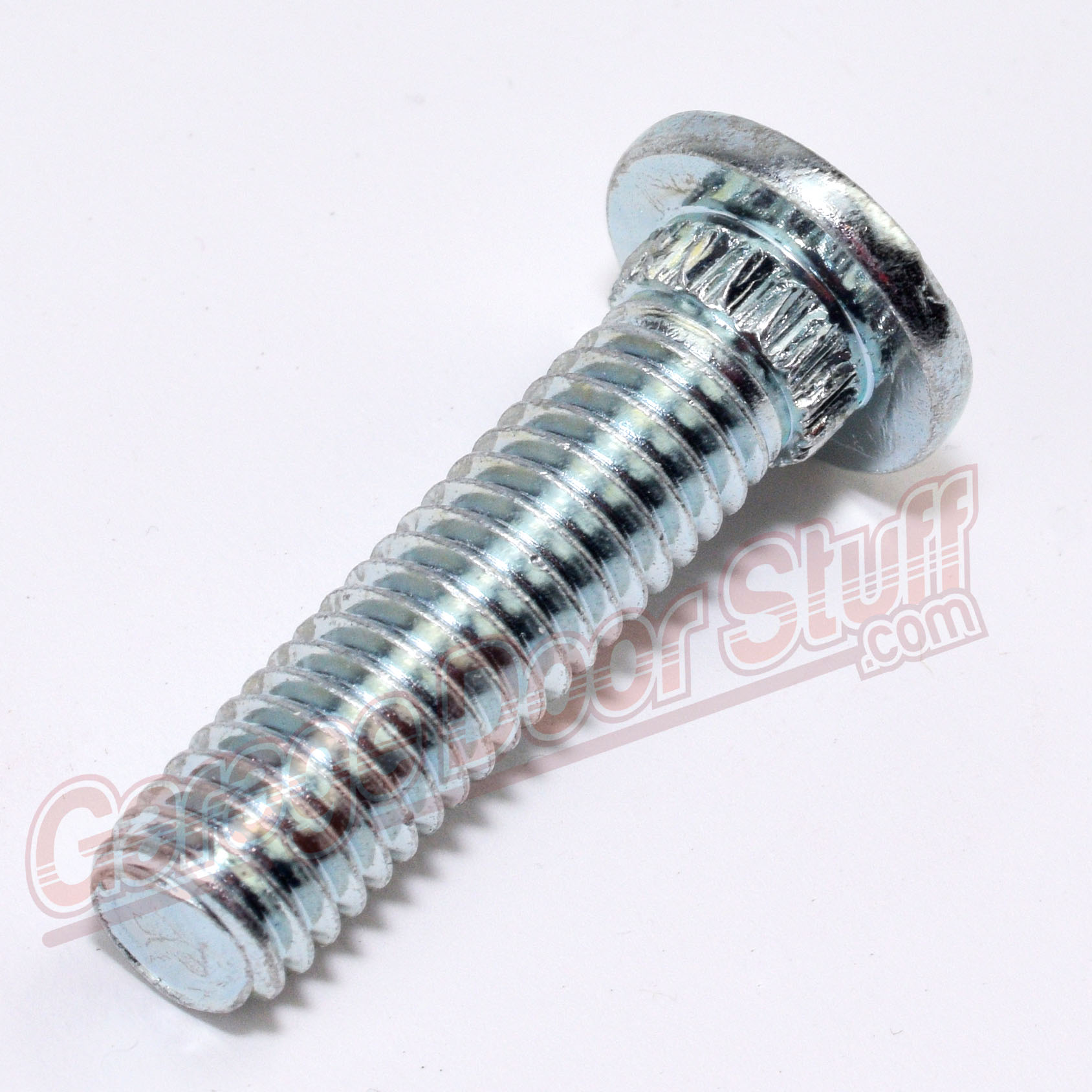

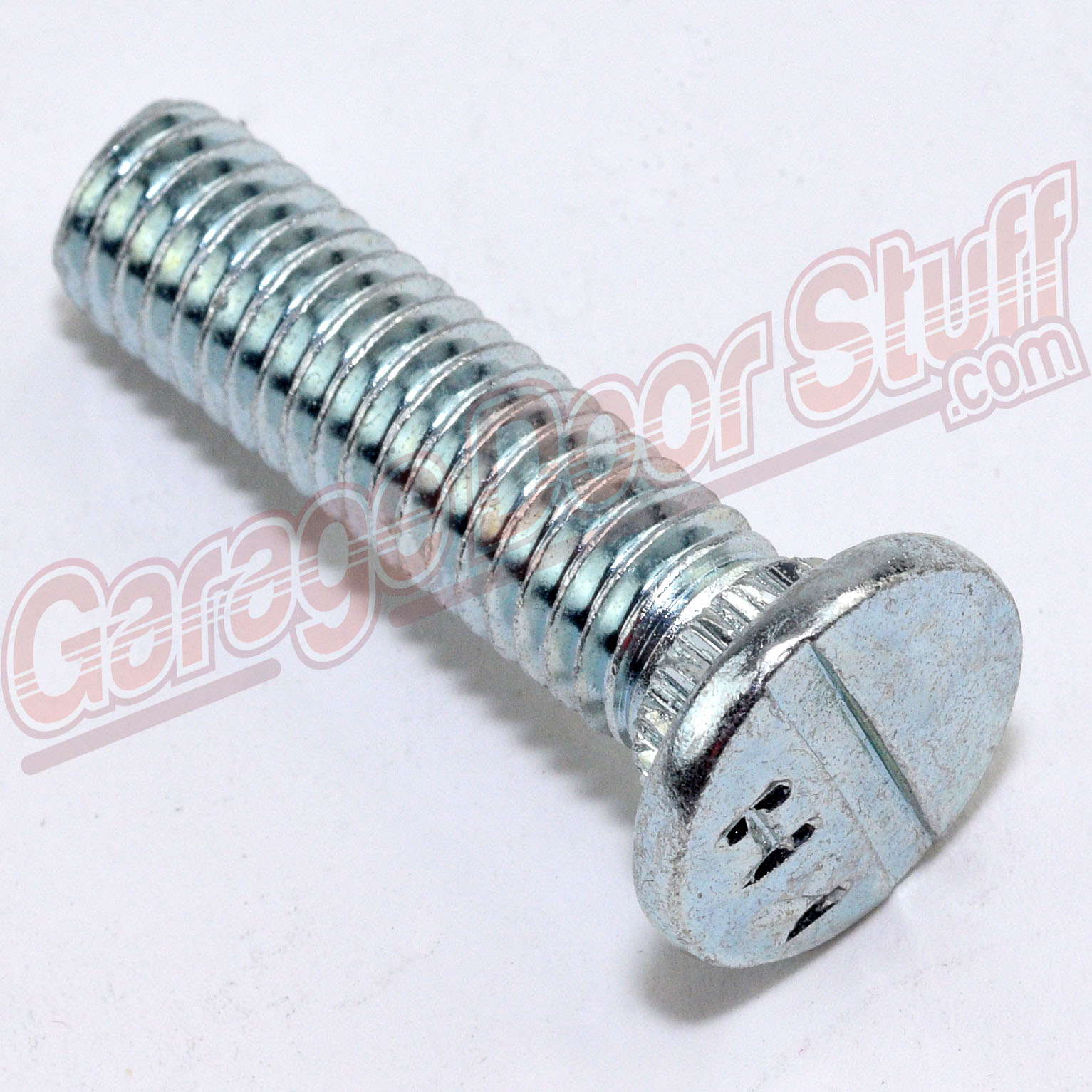

3/8″ Pan Head Bolt


Pan Head Bolt – 3/8 X 16 X 1-1/4″
Diameter-Thread Size: 3/8″ x 16
Finish: ZINK

Head: Round, slotted
Length: 1 1/2″
Material: Steel, zinc finish
Thread: Coarse Thread
Size: 16
Thread Type: Full Thread
Type: Pan Head Bolt

Check out are full line of garage door, garage door opener, and gate fasteners here – GARAGE DOOR FASTENERS

Splines will draw into the material when nut is tightened, the head draws tight to the materiel the bolt is passing through giving a near flush finish. The head of the bolt will draw into most material. Good to use in applications where a bolt head will be in the way when installed. Can be used in many applications. On Garage Doors we use these as track bolts on 3″ Track or heavy 2″ Track, bearing plates to clear the cable drums. Have had applications when the bolt was needed to mount torsion springs to the center bearing plate. This a good item to have a few of on hand in the shop or on the truck, hard to find in hardware stores or box stores.

We also stock a shorter 3/8″ track bolt, 3/8 x 3/4 – same splined head for recessed mounting

Always in stock and we can provide in bulk – email for a quote.

3/8″ Pan Head Bolt



Additional information

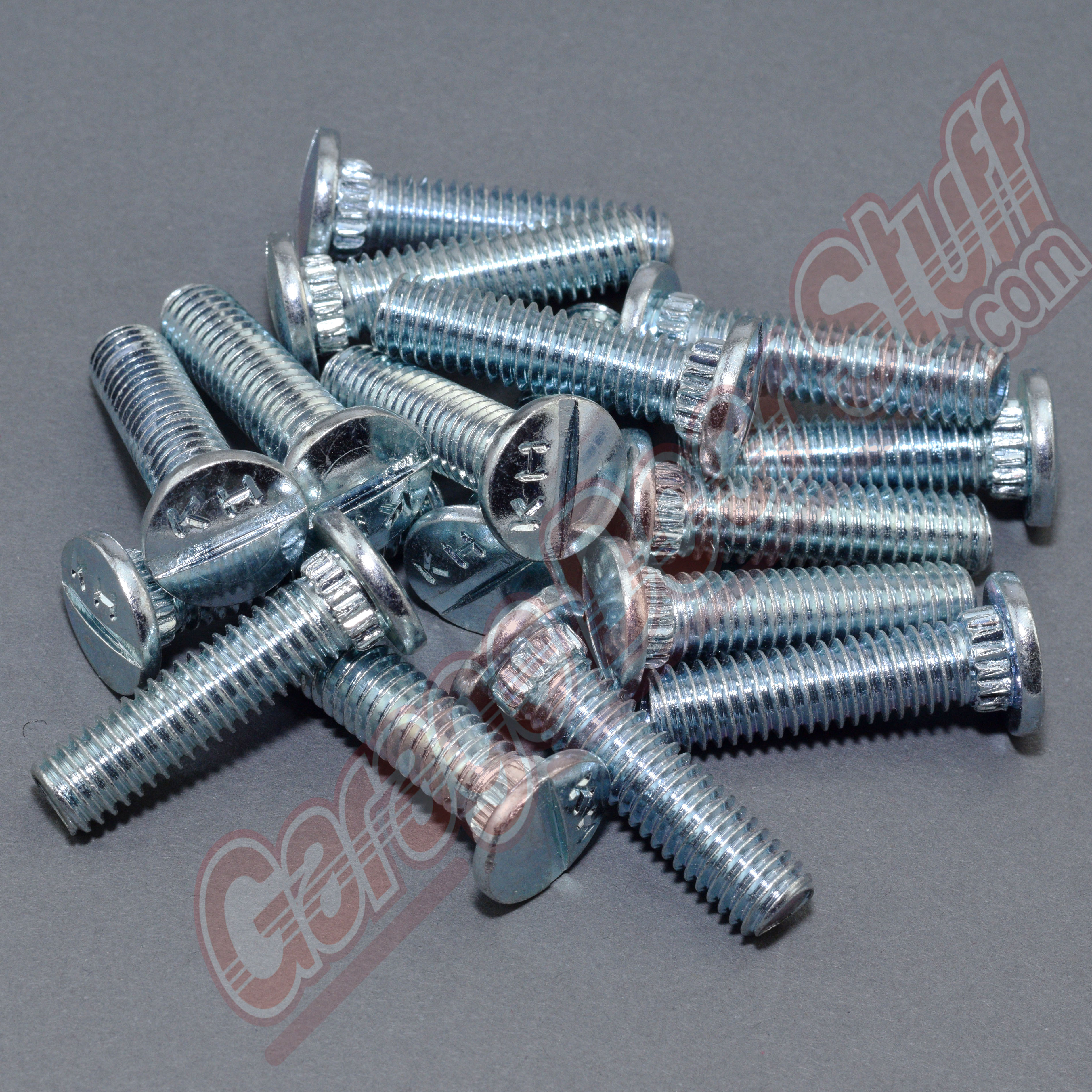

5 Bolts, 10 Bolts, 25 Bolts, 50 Bolts, 100 Bolts, 500 Bolts, 1000 Bolts
