Cast Iron Pulley


Free Shipping On This Item

Cast Iron Pulley Wheel

Cast Iron Barn Pulley

SKU: 5CIPLY Category:


Cast Iron Pulley

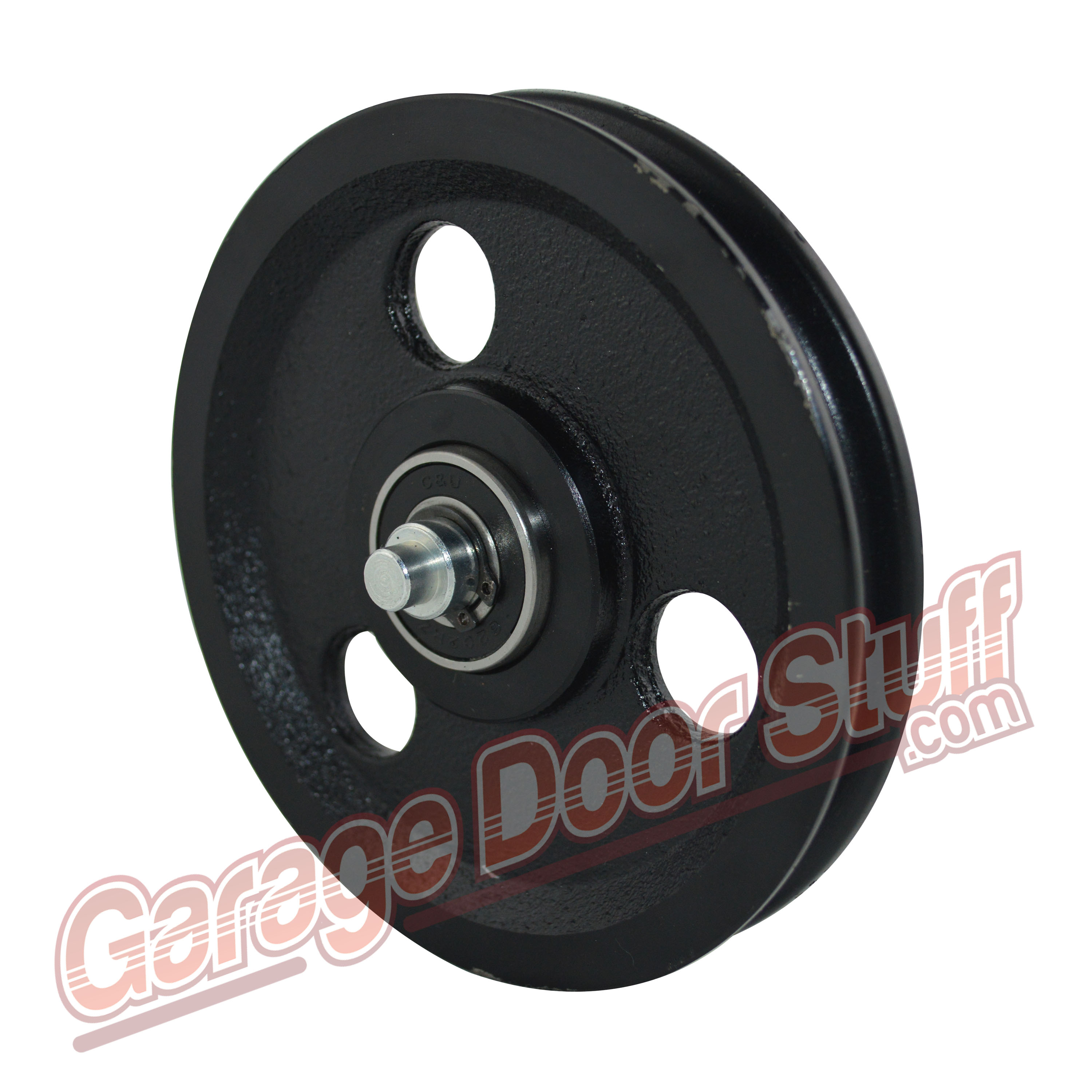

5″ Cast Iron Pulley

Rated at 900 Pounds @ 35K Cycles of a 12′ Tall Overhead Garage Door

5/8″ Bore

3/4″ Wide

5-1/2″ Across

Sealed ball bearings on each side pressed into the sheave.

Weighs 2.4 Pounds

Accepts up to 1/4″ Cable


We stock other pulleys including another cast iron pulley here – PULLEY – SHEAVES

We stock cable in any length up to 500′ in:

1/16″, 3/32″, 1/8″, 5/32″, 3/16″ & 1/4″

See our cable and cable fittings here – GARAGE DOOR CABLE

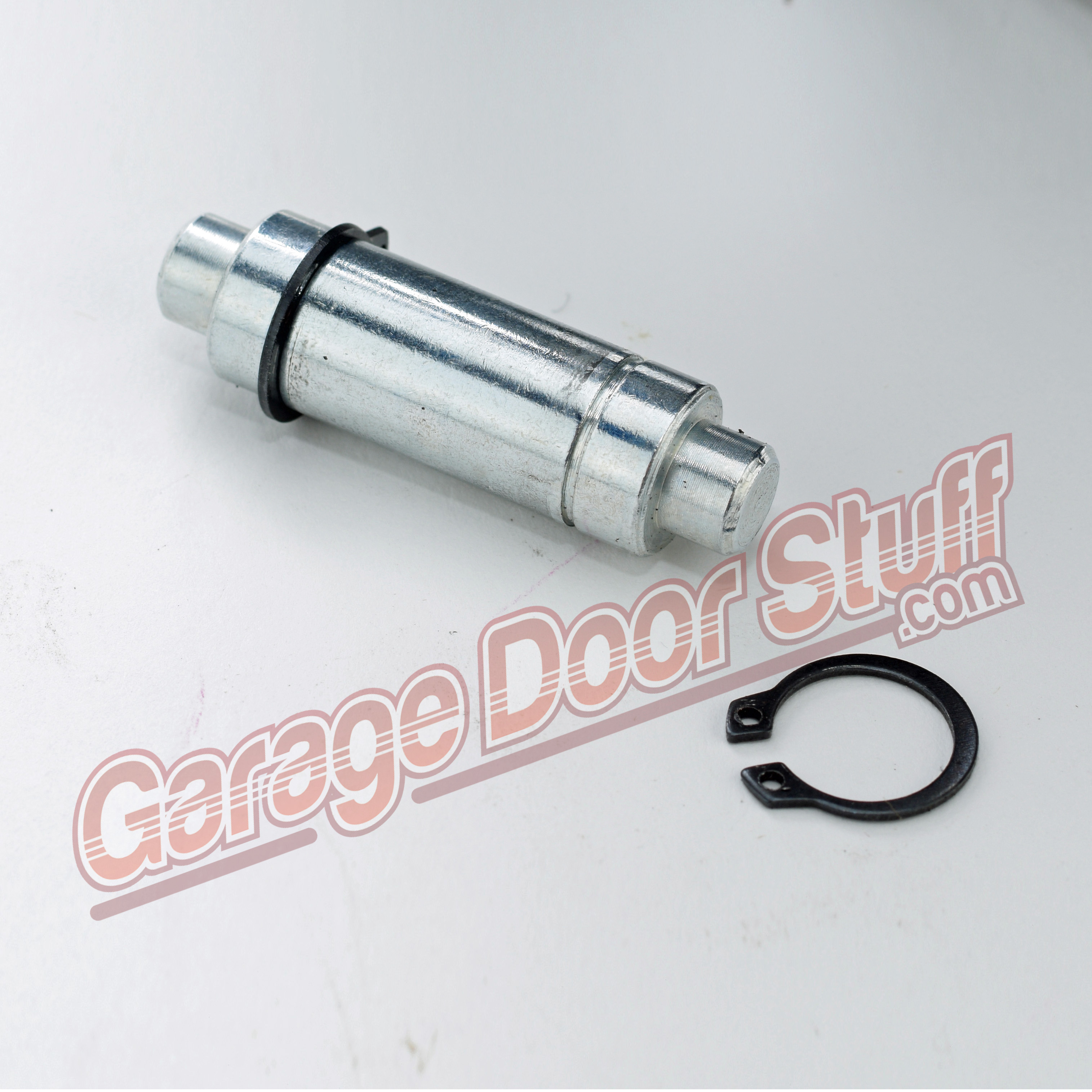

5″ Cast Iron Pulley comes with a hardened pin and two CIR Clips that can be easily removed  so you can use bolts or other means of fastening or attaching.

This is a heavy duty cast iron pulley wheel that can be utilized for any number of uses.

Commonly referred to as a Pulley and/or a Sheave this is an item that has been around a very long time and has near unlimited uses and potential! If you need a heavy duty pulley this may be just what you need. These are good to have on hand, great for rigging up material lifts, can used with rope but typically used with cable.

We stock what we sell and we ship as fast as possible, same or next working day six days a week in fact. We know you need your items and we take pride in shipping all our orders as we can. If you have any questions about an item or if you have any special needs give us a call or drop us an email and we will be glad to help. If you have a special project and perhaps some of our items can be used, send us some drawings if you need some feedback or input. Many of the things we carry can be used for things other than garage doors, garage door openers and gates.



Additional information

Weight 2.5 lbs
Dimensions 5 x .5 x 5 in
5" Cast Iron Pulley

1 Pulley, 2 Pulleys, 4 Pulleys, 10 Pulleys, 25 Pulleys
