Garage Door Bearing Plate 4 5/8″


Free Shipping On This Item

Overhead Door Bearing Plate

Bearing Plate

End Plate

SKU: 2438FEB8 - PAIR Categories: ,


Garage Door Bearing Plate 4 5/8″

Garage Door Bearing Plate.

Flat Bearing Plate.

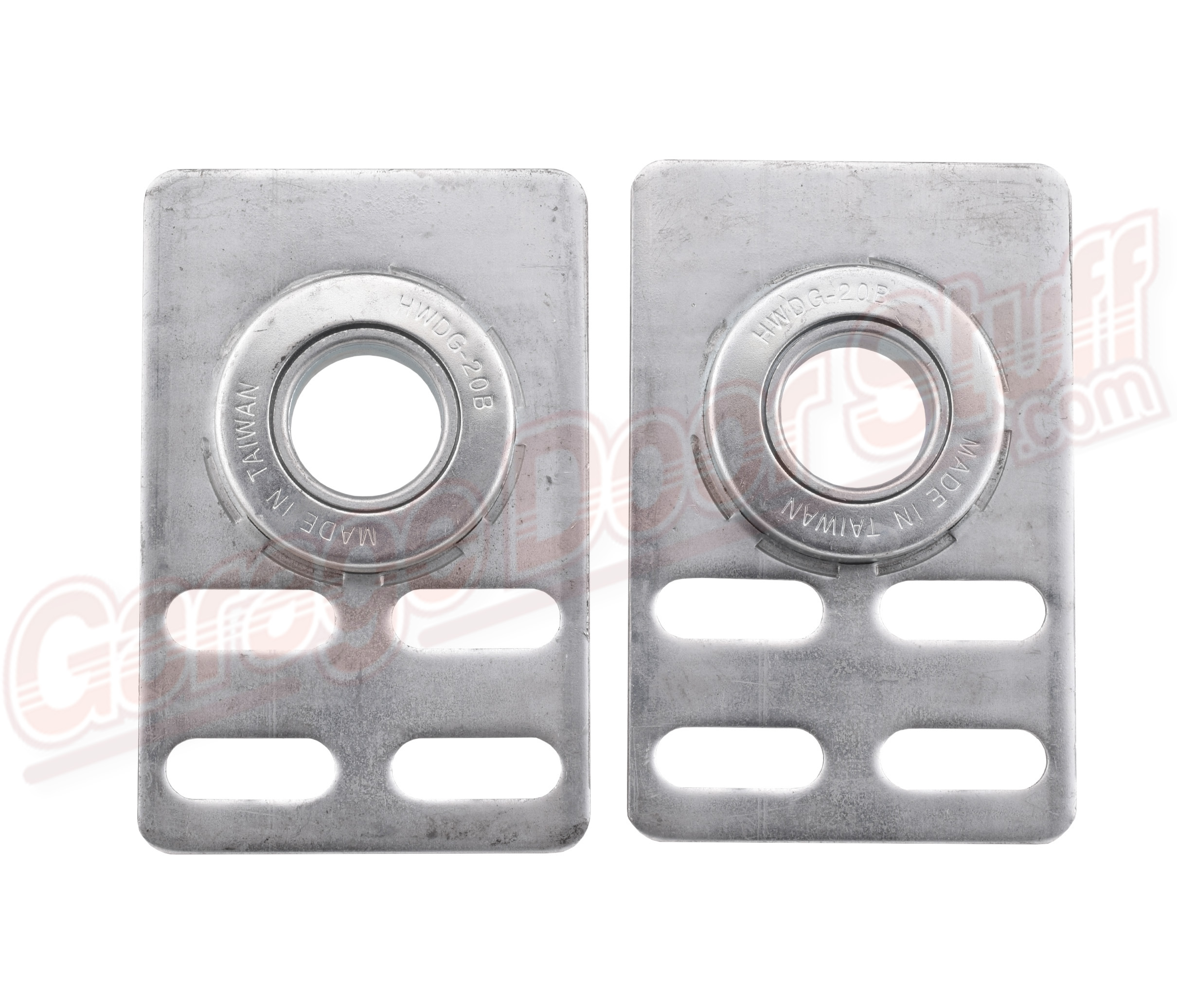

Sold in PAIRS.

1” Bore Steel sealed bearing.

4-5/8” TALL

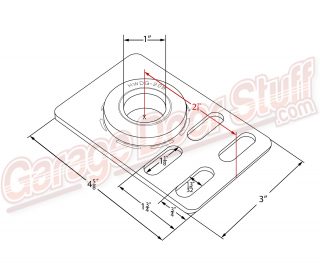

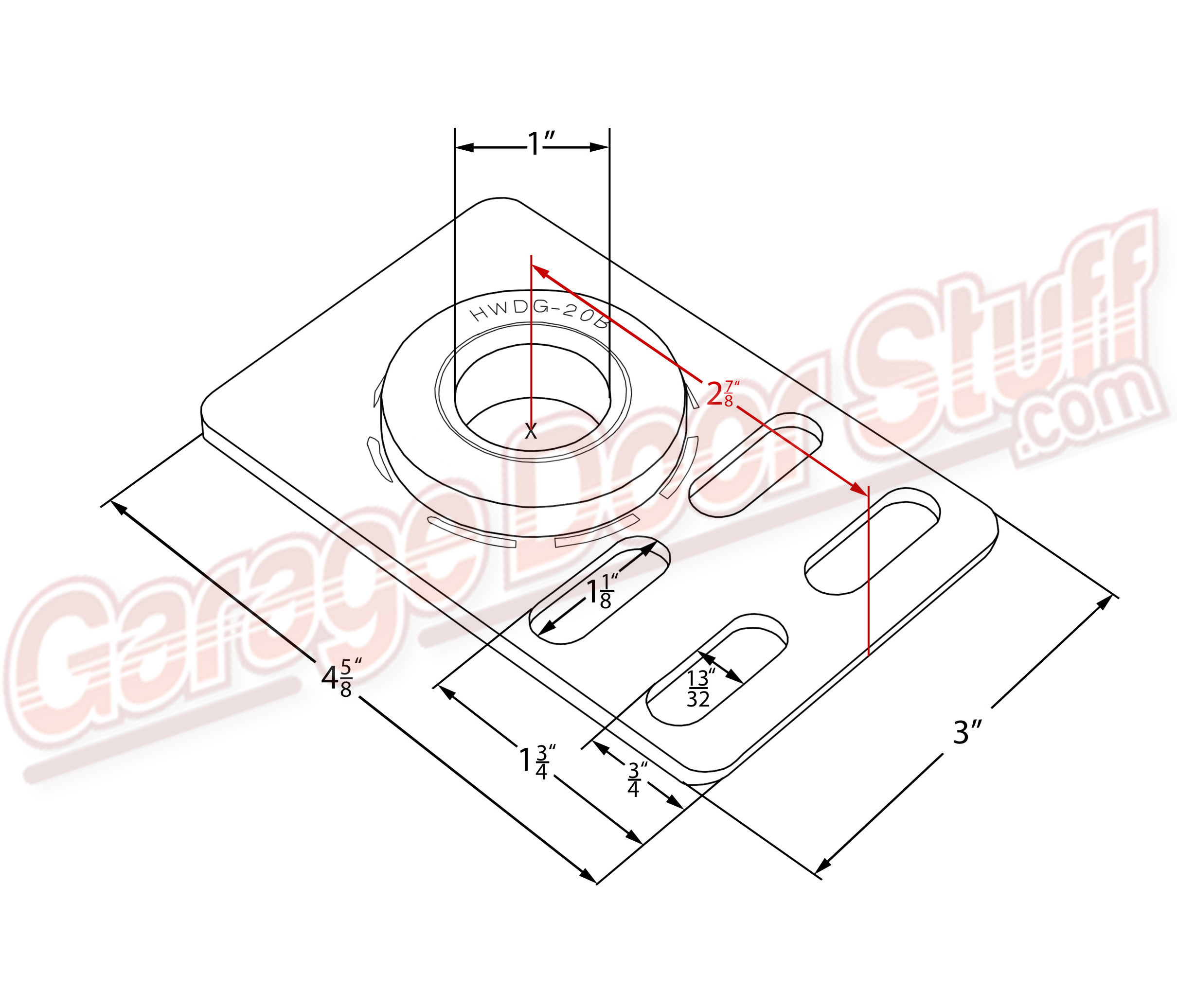

See and enlarge photos for additional measurements and a line drawing.

These smaller flat bearing plates are used on may applications other than garage doors, these particular bearing plates are found in may truck door applications.

The shorter profile works well in low clearance or low head room applications or any tight fitting situations.

This same type of bearing plate is available in several height options, always in stock and ready to ship to you same or next business day.

Heavy gauge metal, zink coated for superior strength and longevity.

Bearing plates such as these can be used as shaft supports when installing side mount garage door openers and chain hoists.

Also when extending the shaft is required, these bearing plates can be used as a shaft support.

Have also seen these types of bearing plates used in rolling tarp installations.

This is a very versatile bearing plate that can be used in an unlimited amount of applications.

We are a full service garage door and garage door opener company with the knowledge and desire to help you in any type of garage door or garage door opener repair.  We ship six days a week and we stock what we sell. We only stock professional grade parts, we do not stock any knock off or cheap imitation parts.  Everything we carry is made by and for the Garage Door Industry. All of our vendors stand behind their products so if there is ever any issues with anything we carry, not only do we stand behind the product but the actual manufacture or supplier does as well. We have developed long term relationships with our vendors and we only work with vendors that we trust. We are a family company and were in it for the long haul, we sell only garage door and garage door opener parts, we are here for you before, during and after your garage door or garage door opener repair and we want your project to be a rewarding and satisfying experience 100% of the way.

Thank you for the opportunity!

Garage Door Bearing Plate 4 5/8″

For any questions or special ordering please Send us an email or call.

Additional information

Weight 3 lbs
Dimensions 5 × 3 × 1 in
