Garage Door Bearing Plate

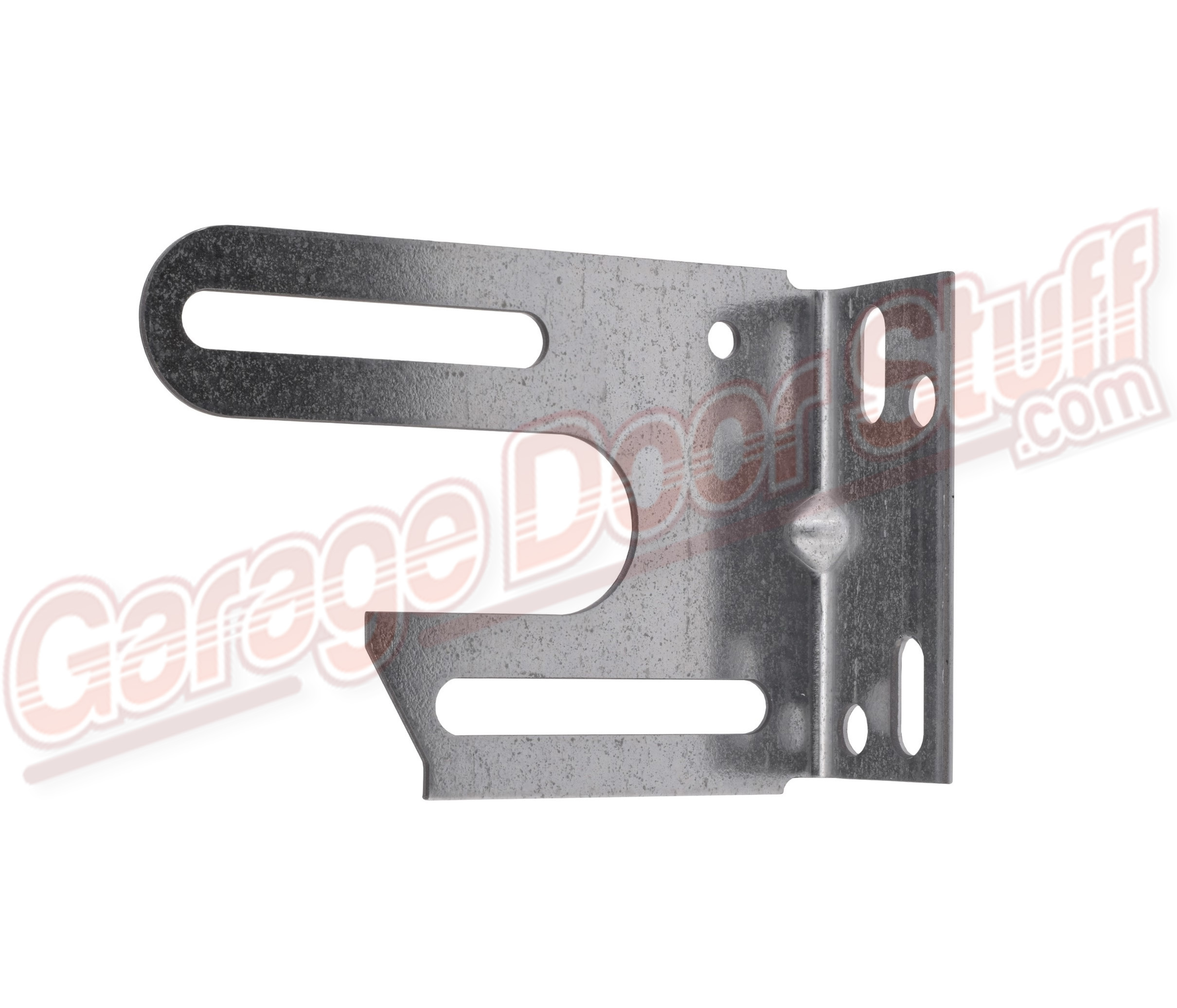

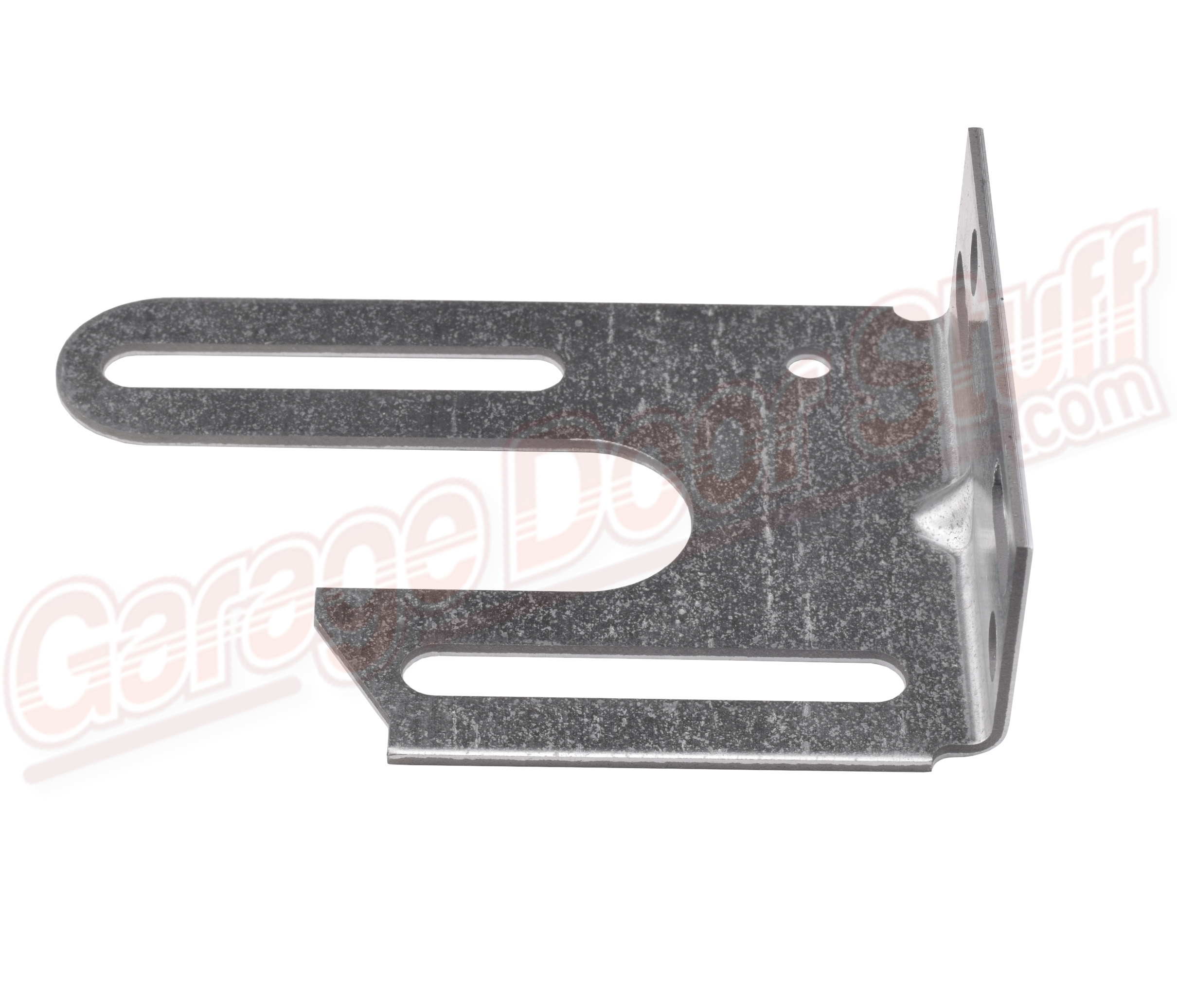

Center bearing plate for torsion spring garage doors. Torsion spring mounts directly to this garage door center bearing plate.

Will work with a single torsion spring or a pair bolted together.

This is the most common adjustable center bearing plate in use on residential and light to medium duty commercial garage doors.

Slotted spring mounting holes accommodate many different stationary spring cones / hubs of various diameters.

1-3/4″, 2″, 2-1/2″, 2-5/8″ inside diameter springs will all work with this garage door center bearing plate.

Fully adjustable for all residential and most light commercial doors

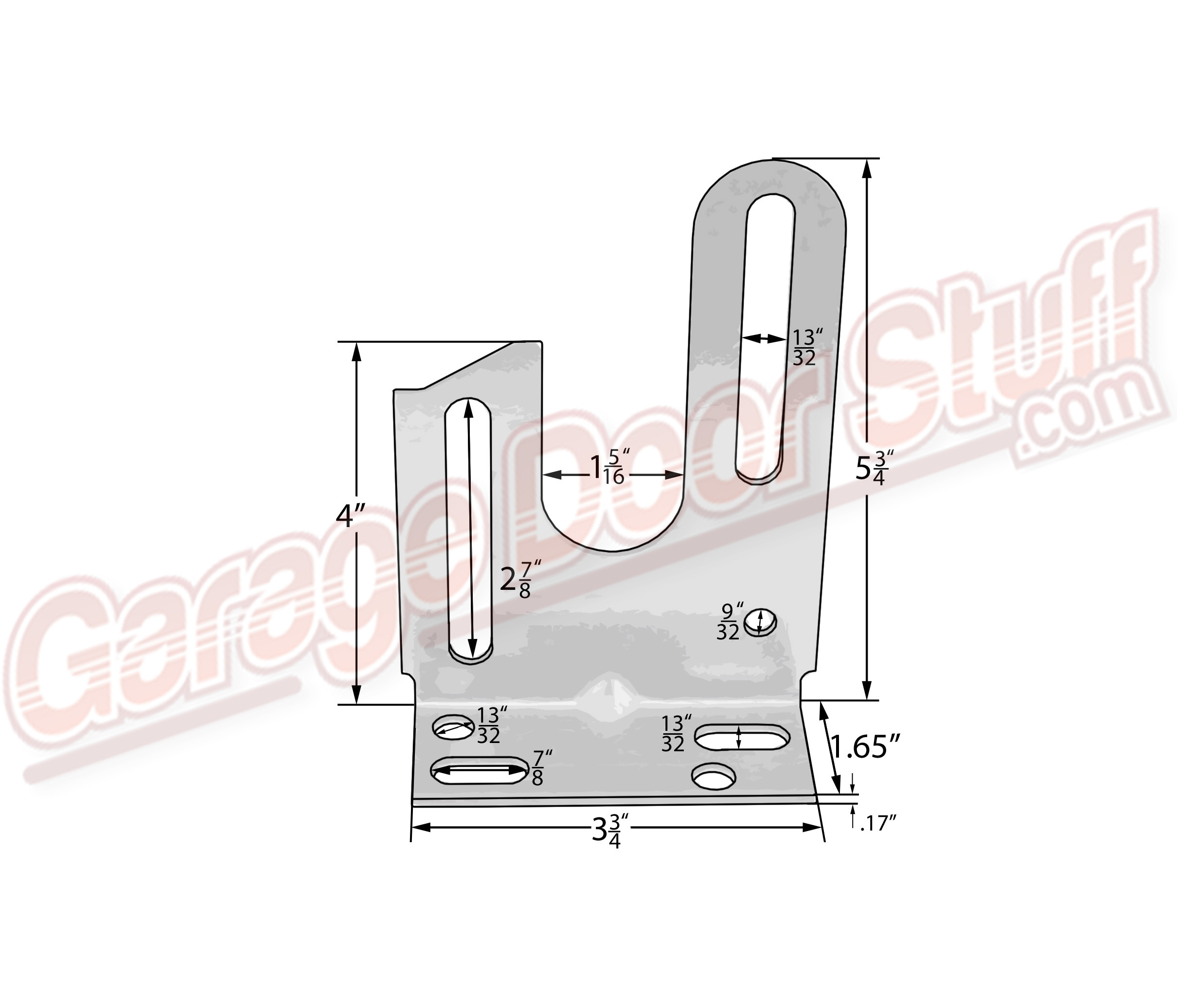

4” Tall

5-3/4 @ Top of flange

4” @ Bottom of flange

Accepts 3/8” bolts – We stock several length 3/8 bolts, nuts and lock washers that work perfectly with this bearing plate, see out store category – Fasteners under – Click here – FASTENERS

We recommend using 3″ long lag bolts when fastening to a wood jamb or pad, find them here – LAG BOLT

Regardless of the size of the torsion spring or springs that you will be attaching to this bearing plate there will be a lot of spring tension attached to the bearing plate, therefore using the above mentioned 3″ lag bolts is highly encouraged.

For any questions or special ordering please Send us an email or call.

Good choice when upgrading from cheap, light weight bearing plates often provided with box store type garage doors.

Also a good bearing plate to use when converting from extension spring to torsion spring or when adding hi lift to a garage door.

This is a vary versatile bearing plate that can be used in many different applications. Being that the mounting holes are slotted the garage door bearing plate gives you many options and is perfect for most residential and light duty commercial doors.

We stock several other center bearing plate options, end bearing plates, flat bearing plates and bearings as well.

See out bearing plate pages here – BEARING PLATES

Garage Door Bearing Plate

Additional information

Weight .8125 lbs
Dimensions 2 x 2 x 1 in
