Garage Door Bearings

This product is currently out of stock and unavailable.

SKU: FB38OC Category:

Description

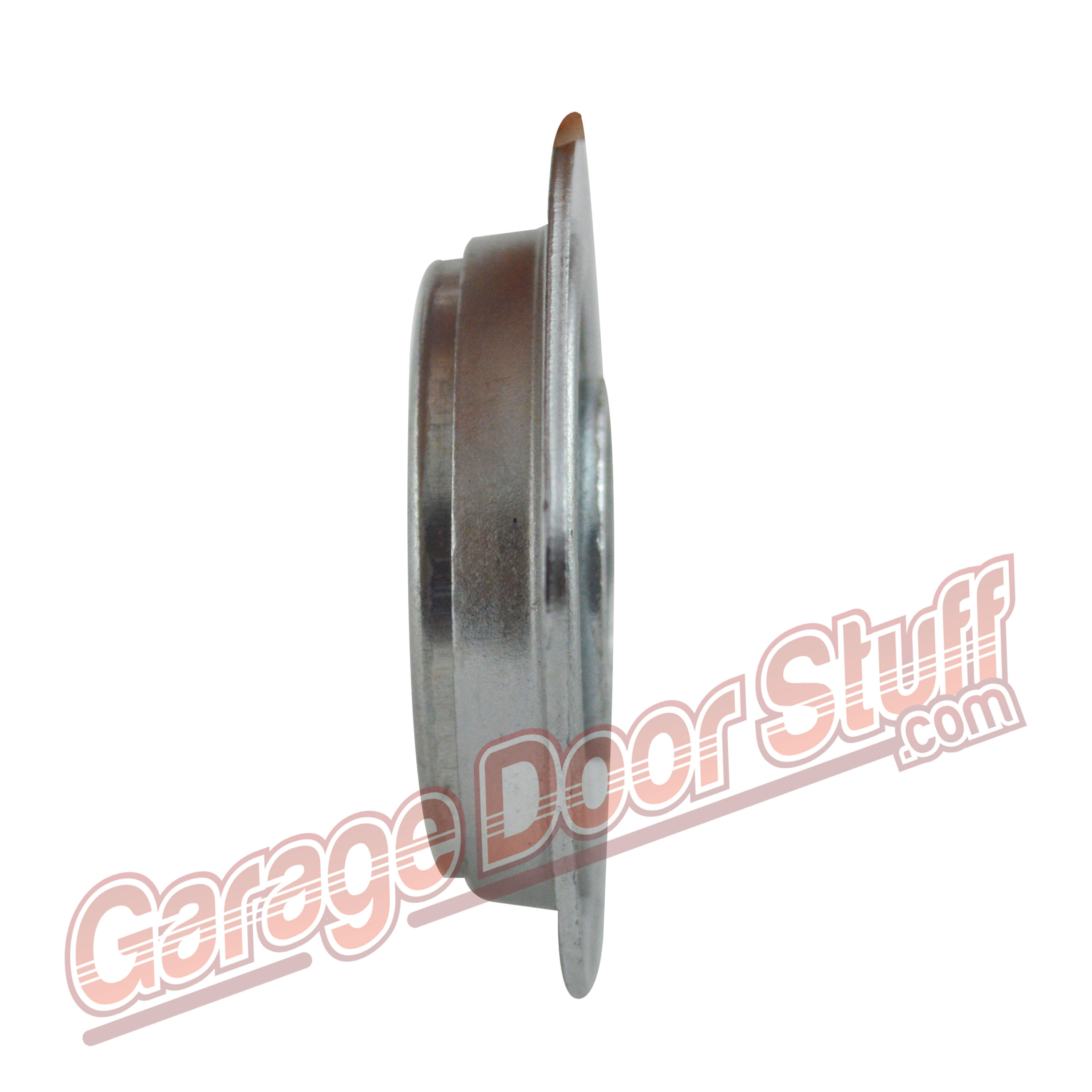

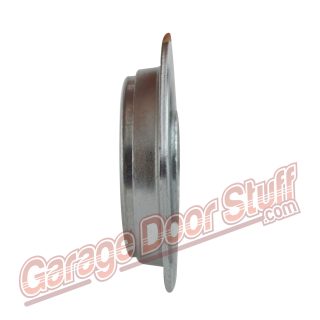

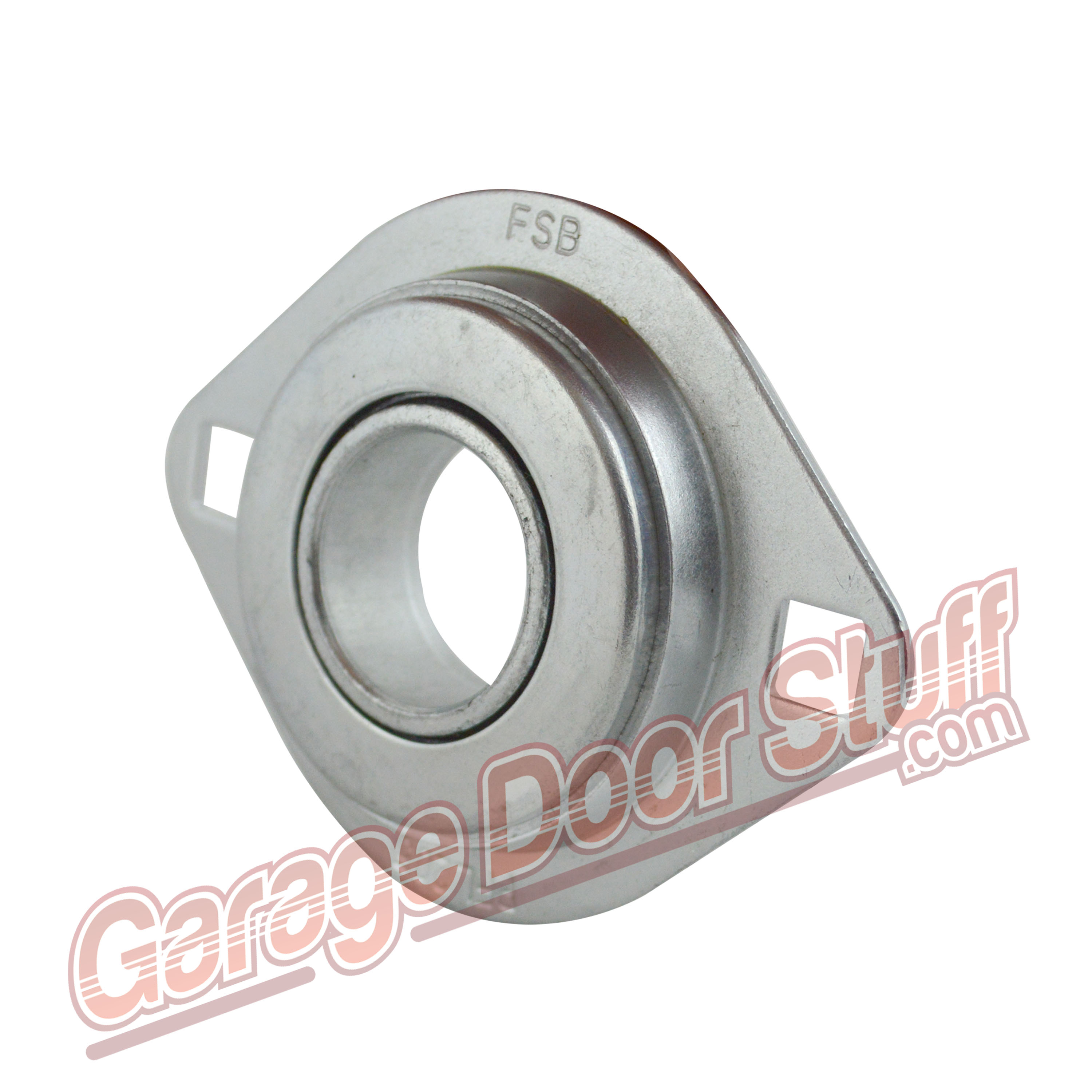

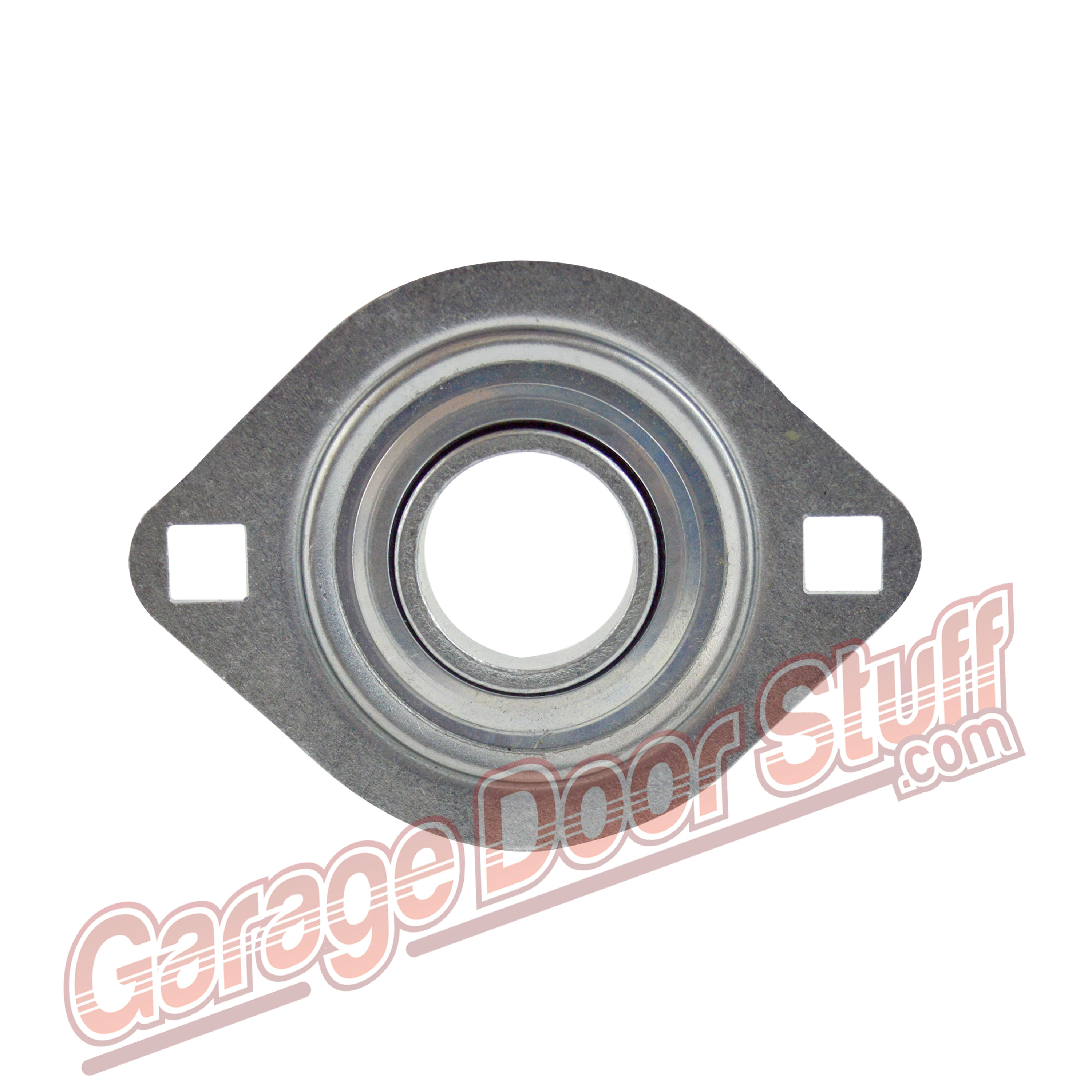

Garage Door Bearings

Bearing and bearing plate.

1″ Bore, Sealed Ball Bearing .

Bearing is pressed into the bearing plate but can be removed.

Bearing plate is .77 thick galvanized steel.

Square mounting holes accept 5/16 Bolts w/square shoulder.

Mounting holes are 3″ Center to Center.

Bearing plate is 3-3/4″ Wide X 2-13/16 Tall.

We carry a similar football style bearing and bearing plate with 3-3/8″ center to center mounting hole measurement here – BEARING

We stock other garage door bearings and garage door bearing plates here – GARAGE DOOR BEARING

This garage door bearing is used in many different applications on garage doors and garage door openers. The 1″ bore is common to most garage door torsion spring shafts. This bearing and bearing plate combination is frequently found in use on truck and trailer doors. It’s compact size is a real plus in the tight confines found on truck and trailer doors. Also common to overhead doors both commercial and residential. This is a very adaptable bearing and bearing plate combination. The sealed bearing is nice in the it does not require lubrication and that is a plus when working in tight situations common to truck and trailer doors. Using punched angle and this bearing, bearing plate combination allows for many custom mounting options.

If you have job site requirements that call for bearings or bearing plates other than we have listed, give us a call or send an email with dimensions and we will try to help you find what you need. We have access to every garage door bearing and bearing plate in production.



Additional information

Weight .5 lbs
Football Bearing

1 Bearing, 2 Bearings, 4 Bearings, 10 Bearings, 25 Bearings, 50 Bearings, 100 Bearings
