Garage Door Hinges

$5.99$10.69

Clear
SKU: #1-#10 HINGES Category:

Description

Garage Door Hinges

Garage Door Hinges
Heavy Duty 14 and 11 Gage Hinges
End Hinges stand off the garage door.

Sold as single hinge. For more than one please specify in quantity box

If you look at the edge of the door track you will see it is angled from the wall. The height of hinges accommodate for this angle. That is why you will notice the lower hinges will have less height while the next up hinges have more height, progressively to the top.

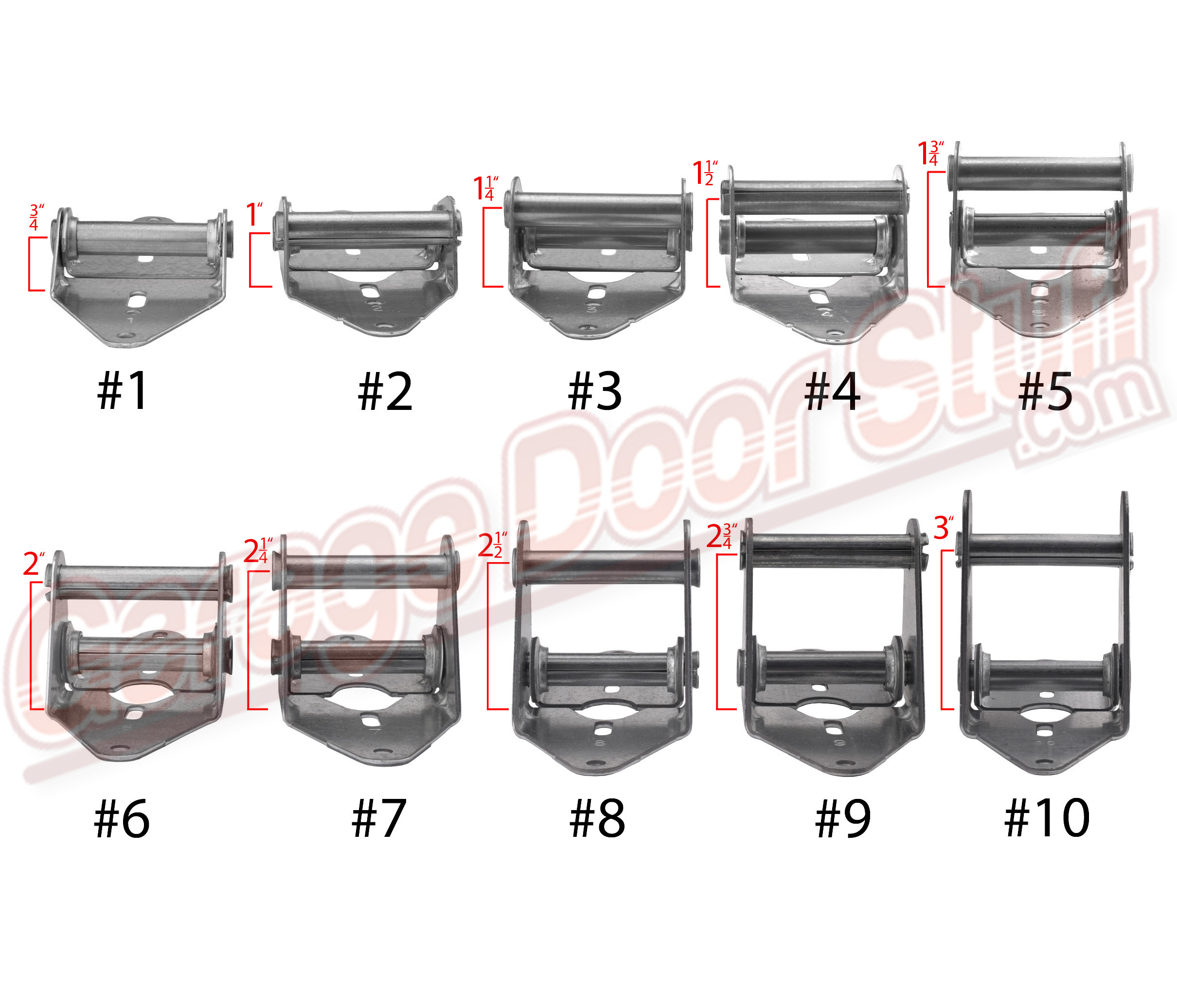

To correctly measure your garage door hinges, measure from the bottom to the center of the top roller shaft (demonstrated in photo). Unless marked on the hinge itself, use this measurement to find the hinge you need replaced

Below are the measurements (some may vary by a small margin)

Type and Size(from bottom to center of top Roller Shaft) Gage
#1 Hinge – 3/4″ 14 Gage
#2 Hinge – 1″ 14 Gage
#3 Hinge – 1-1/4″ 14 Gage
#4 Hinge – 1-1/2″ 14 Gage
#5 Hinge – 1-3/4″ 14 Gage
#6 Hinge – 2″ 13 Gage
#7 Hinge – 2-1/4″ 13 Gage
#8 Hinge – 2-1/2″ 11 Gage
#9 Hinge – 2-3/4″ 11 Gage
#10 Hinge – 3″ 11 Gage

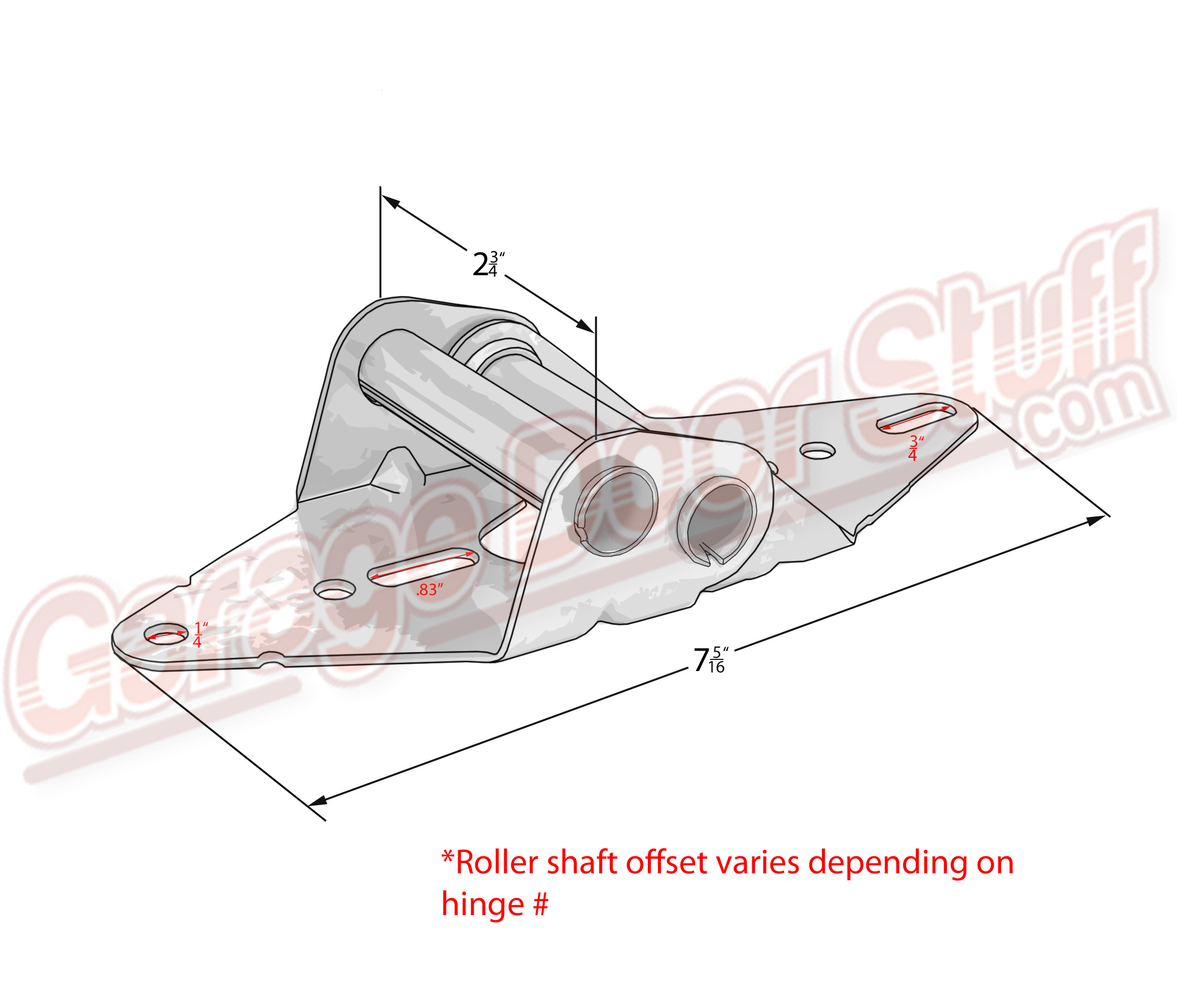

7-5/16″ Top to Bottom
2-3/4″ Hinge Width
3″ Barrel Width
Pre Drilled for easy fit on all Garage Doors
Hinges can wear out over time
Replace them with these quality steel hinges,
You will notice how much smoother your door will feel after replacing worn out hinges
Quieter and will last much longer
See other listing for Narrow hinges

For any questions or special ordering please Send us an email or call.

Additional information

Weight N/A
Dimensions N/A
Hinges

#1 HINGE, #2 HINGE, #3 HINGE, #4 HINGE, #5 HINGE, #6 HINGE, #7 HINGE, #8 HINGE, #9 HINGE, #10 HINGE
