Description
Garage Door Weather Stripping KIT
Complete kit for doors with Tongue and Groove bottoms.
Click the link below for an overview of garage door weather seal.
Garage Door Weather Seal Overview

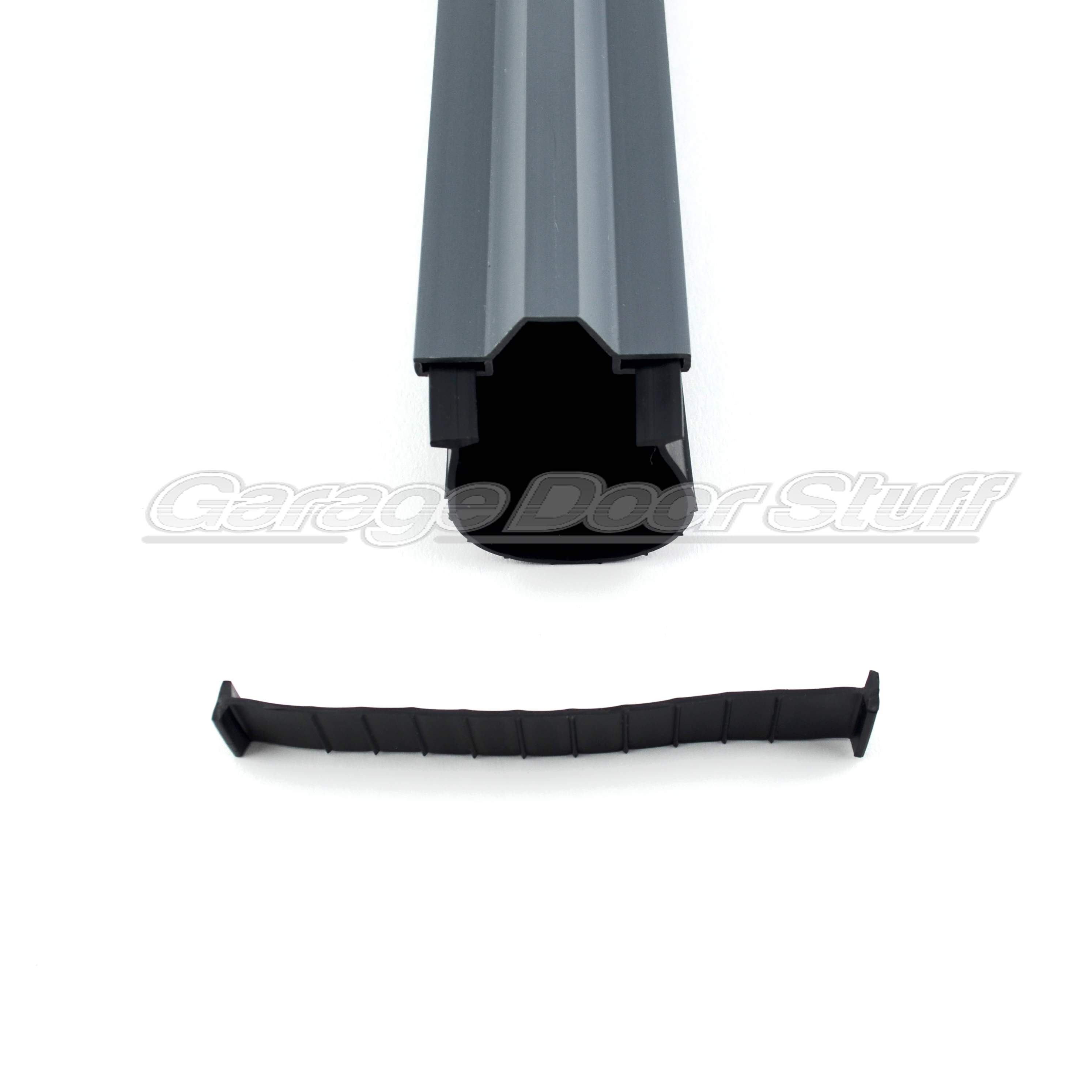

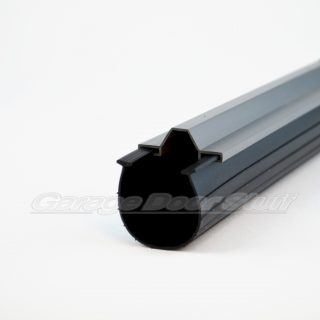

This retainer fits perfectly on the bottom of doors that
have the T & G bottom. Doors with T & G bottoms are
common, many manufactures use this type of system because
it allows them to use any section as a bottom section.
A intermediate section becomes a bottom section simply
by adding a retainer and sliding the weather seal into the retainer.
This kit contains 54” sections of retainer and 9’-2” or 18’-2”
of heavy duty 4” wide T style, U shaped weather seal.
This retainer is available separately and can be combined
with a variety of different style and sized T style weather seal.
We have many different types of retainer and weather seal
that will allow you to install the perfect retainer, weather seal
combination for your particular application.
Feel free to email, call or send photos if you are unsure
of what you need, we can and will help.
This kit is for doors 1-3/8” thick.
9’ Kit:
2 – 54” sections of Gray PVC Tongue and Groove Retainers
9’-2” Heavy Duty T style, U shaped weather seal
Fasteners.
18’ Kit:
4 – 54” sections of Gray PVC Tongue and Groove Retainers
18’-2” Heavy Duty T style, U shaped weather seal
Fasteners.
The retainer and weather seal can be easily cut to any length you require.
The retainers are square cut and butt together, the seal is one continuous length
and slides into the retainer.

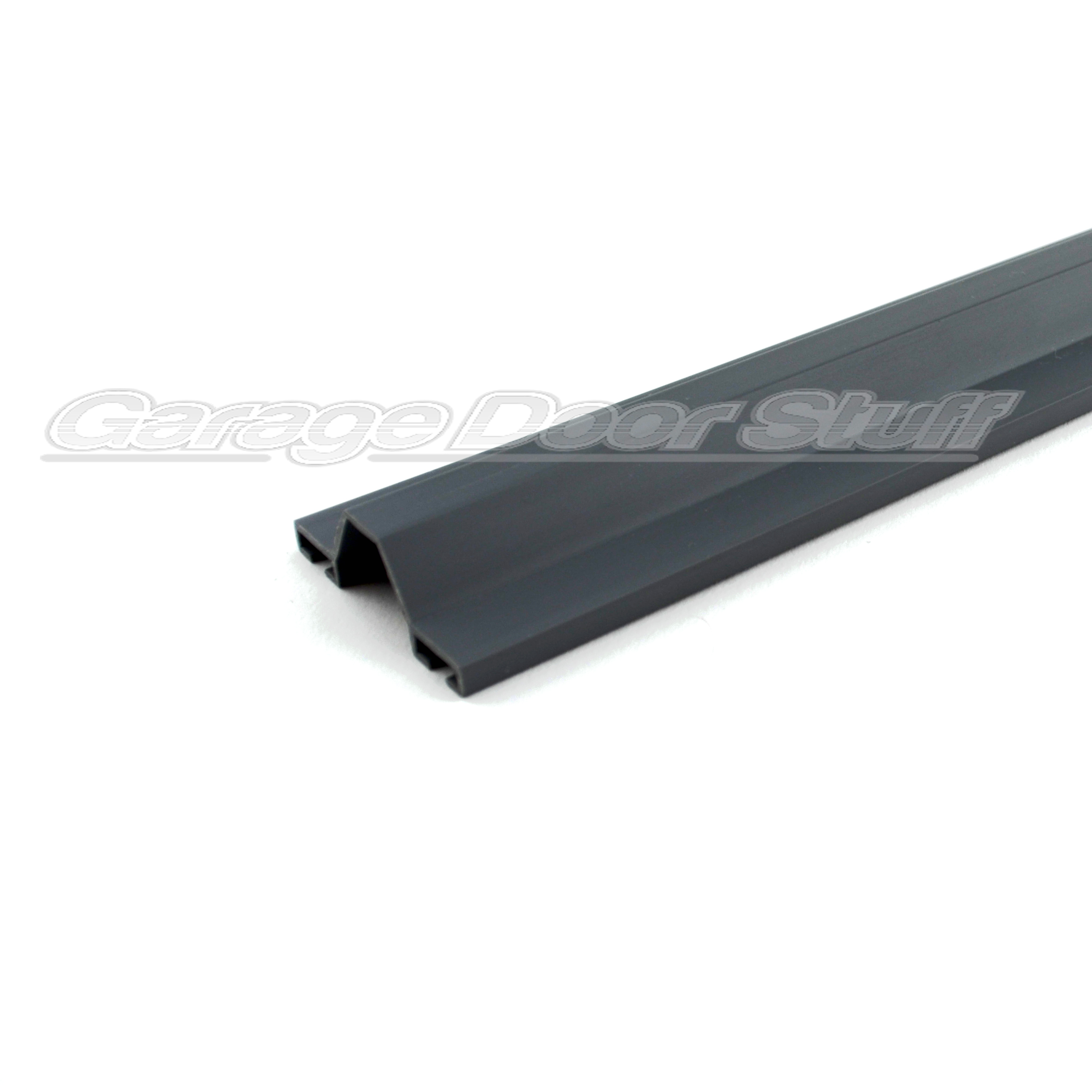

Retainer:
Made of durable PVC
Accepts ¼” T style bottom seal
For 1-3/8” wide doors.
1-11/16” wide.
