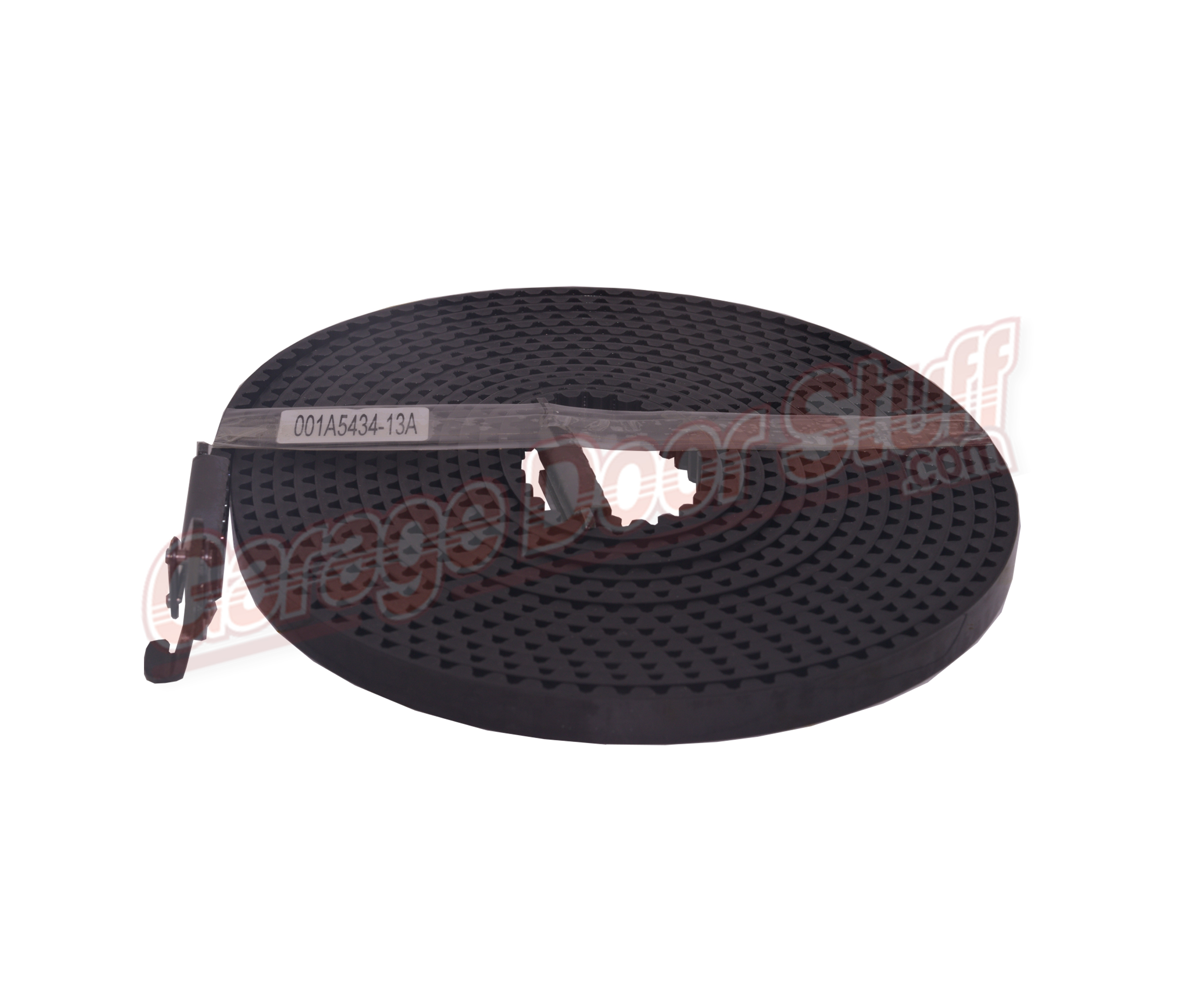

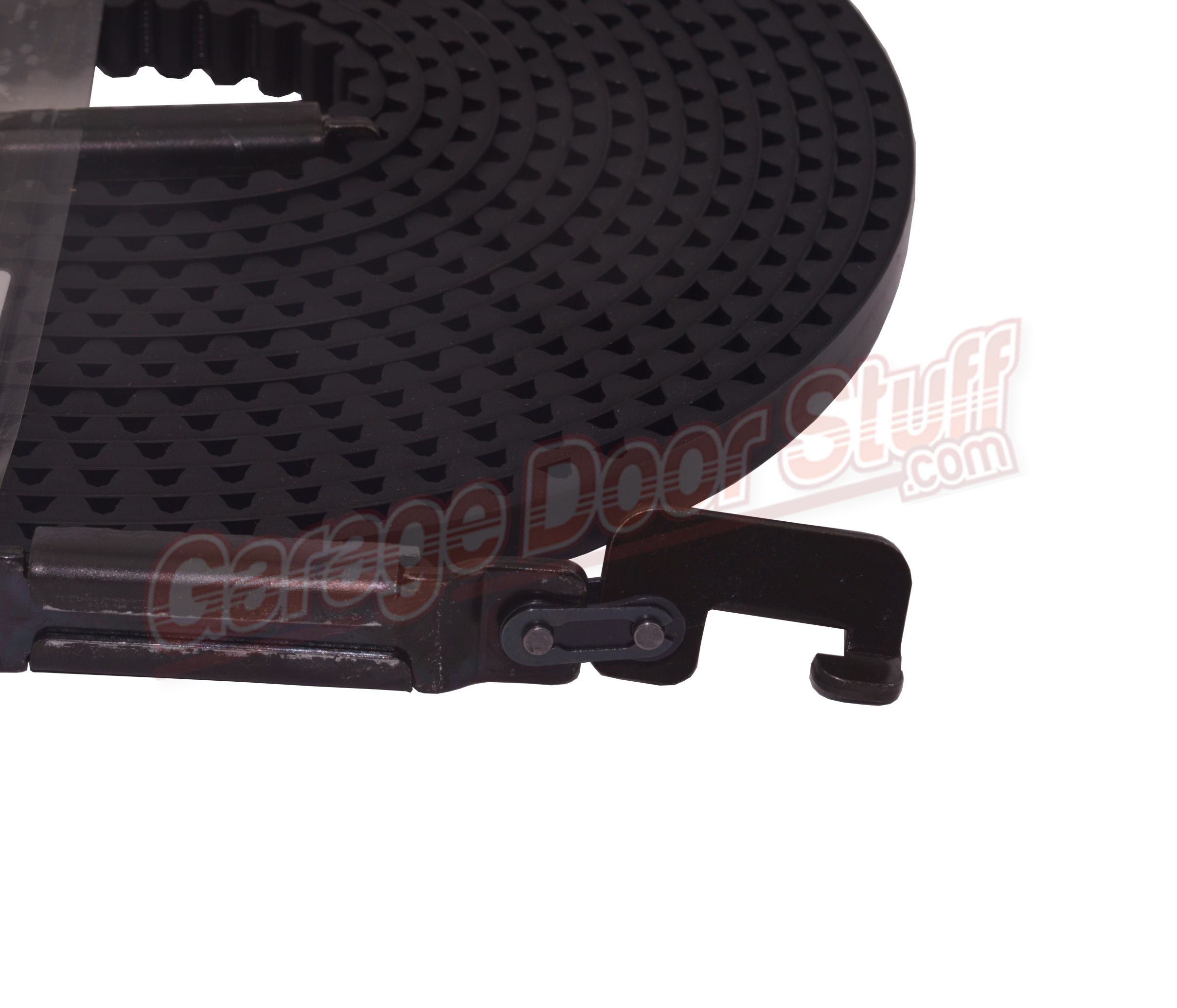

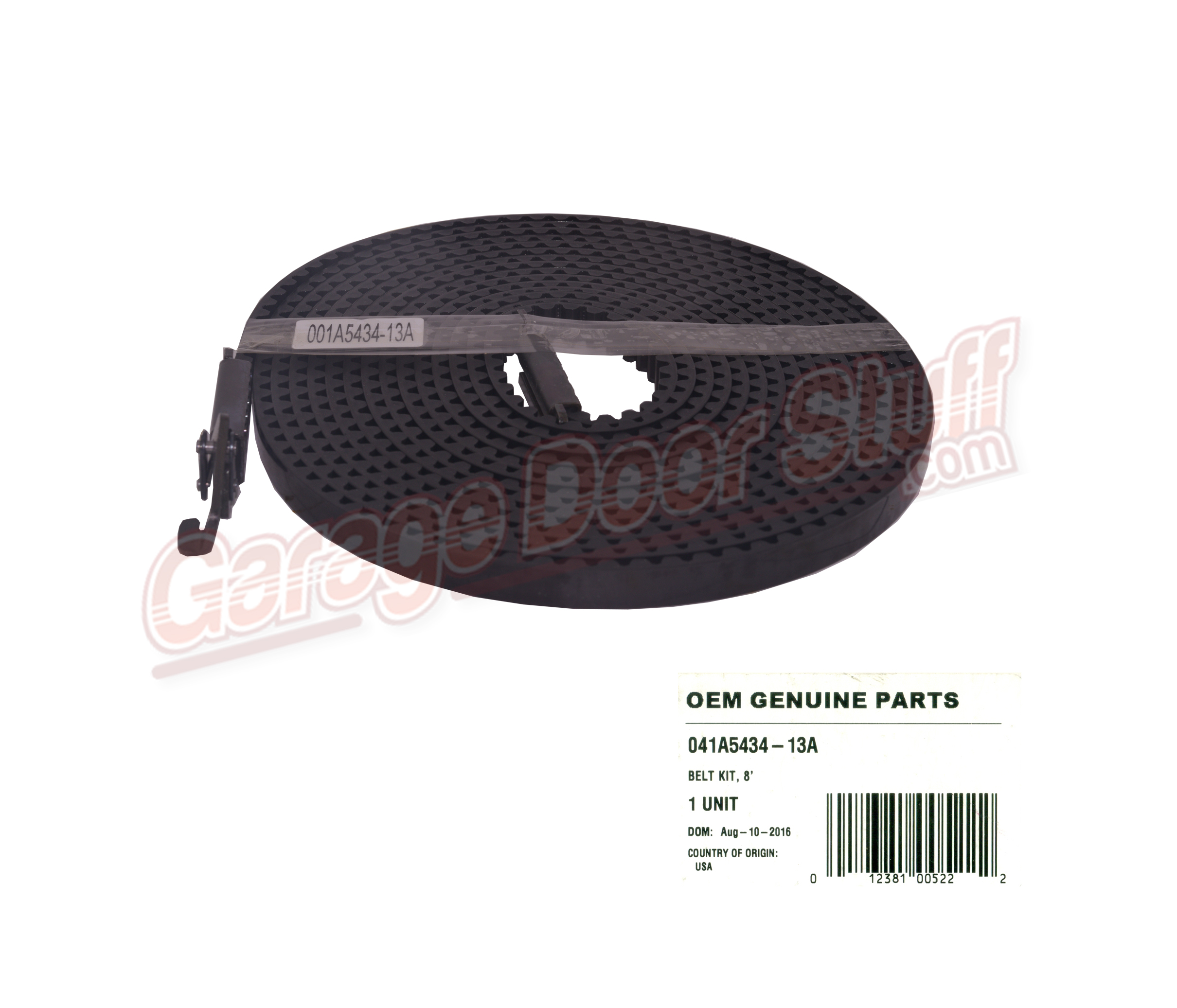

Liftmaster Belt Assembly 8′ – 41A5434-13

$72.99

Liftmaster, Chamberlain, Sears Garage Door Opener Belt

SKU: 041A5434-13A Category:

Description

Liftmaster Belt Assembly 8′ – 41A5434-13

Liftmaster Full Belt Assembly For 8′ Garage Door Opener 41A5434-13

Liftmaster Brand part, not a knock off.

Newer style, 2000 to present models

For Liftmaster, Chamberlain, Sears, Craftsman Models

Models: – WD822K, WD922K, WD912K, 2500, 2580, 2280, 3500, 3550, 3580, 3580M, 2585, 3585, 2500B, 2380M, 3500D, 8355, 8550, 3280

For models manufactured from – 2000 forward.

Belt measures 255″

20 Grooves per 6″ of length.

We carry the older style (1993 – 2000) of belt for 8′ high openers here – LIFTMASTER BELT- 41A3589-1

We carry the old style belt for 7′ high openers here – LIFTMASTER BELT- 41A3589-3

We carry the newer style belt for 7′ high openers here – LIFTMASTER BELT- 41A5434-11

We carry the belt drive carriage here – LIFTMASTER BELT DRIVE CARRIAGE

When replacing the belt, check both the front and rear pulleys for any sign of wear. Insure that the pulley is not loose or has worn at the mounting point.  The pulley should not wobble. Look for burrs or any type of wear. Now is the time to replace if needed. Installing a new belt on worn or damaged pulleys will result in belt failure. If there is any question of pulley wear, replace the pulleys now.

We carry the front Pulley assembly here –

The rear pulley is part of the gear kit and is not sold separately, you must purchase the entire kit.

To view Liftmasters exploded view of the various belt drive rail assemblies, click here – LIFTMASTER BELT DRIVE

To go to Liftmasters web site, click here – LIFTMASTER GARAGE DOOR OPENER

Liftmaster Belt Assembly 8′ – 41A5434-13

Additional information

Weight 2 lbs
Dimensions 12 x 12 x 1 in
