Wayne Dalton Weather Seal

This item has a shipping fee due to its size/weight

Wayne Dalton Garage Door Weather Stripping

Garage Door Bottom Seal Kit

This product is currently out of stock and unavailable.


Wayne Dalton Weather Seal

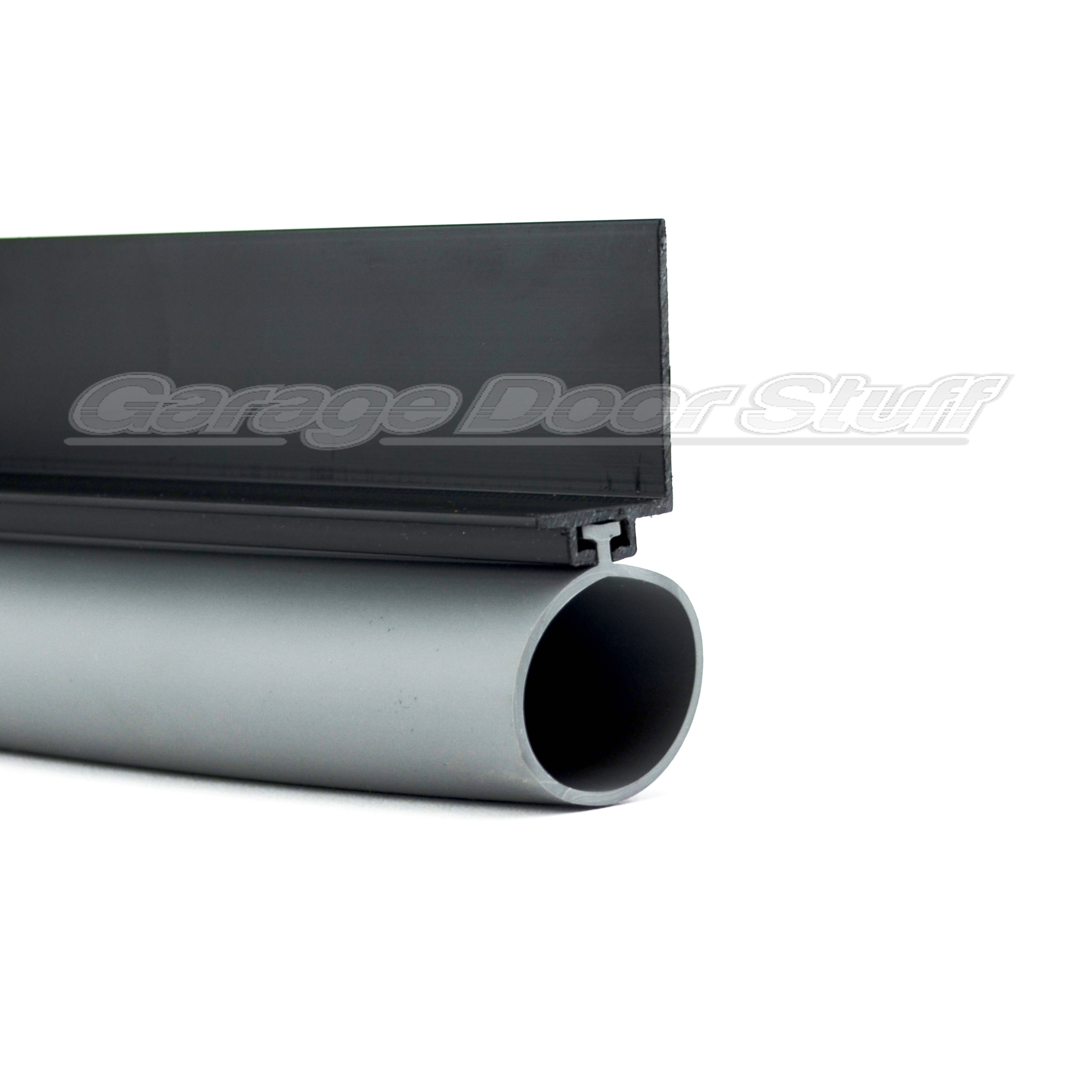

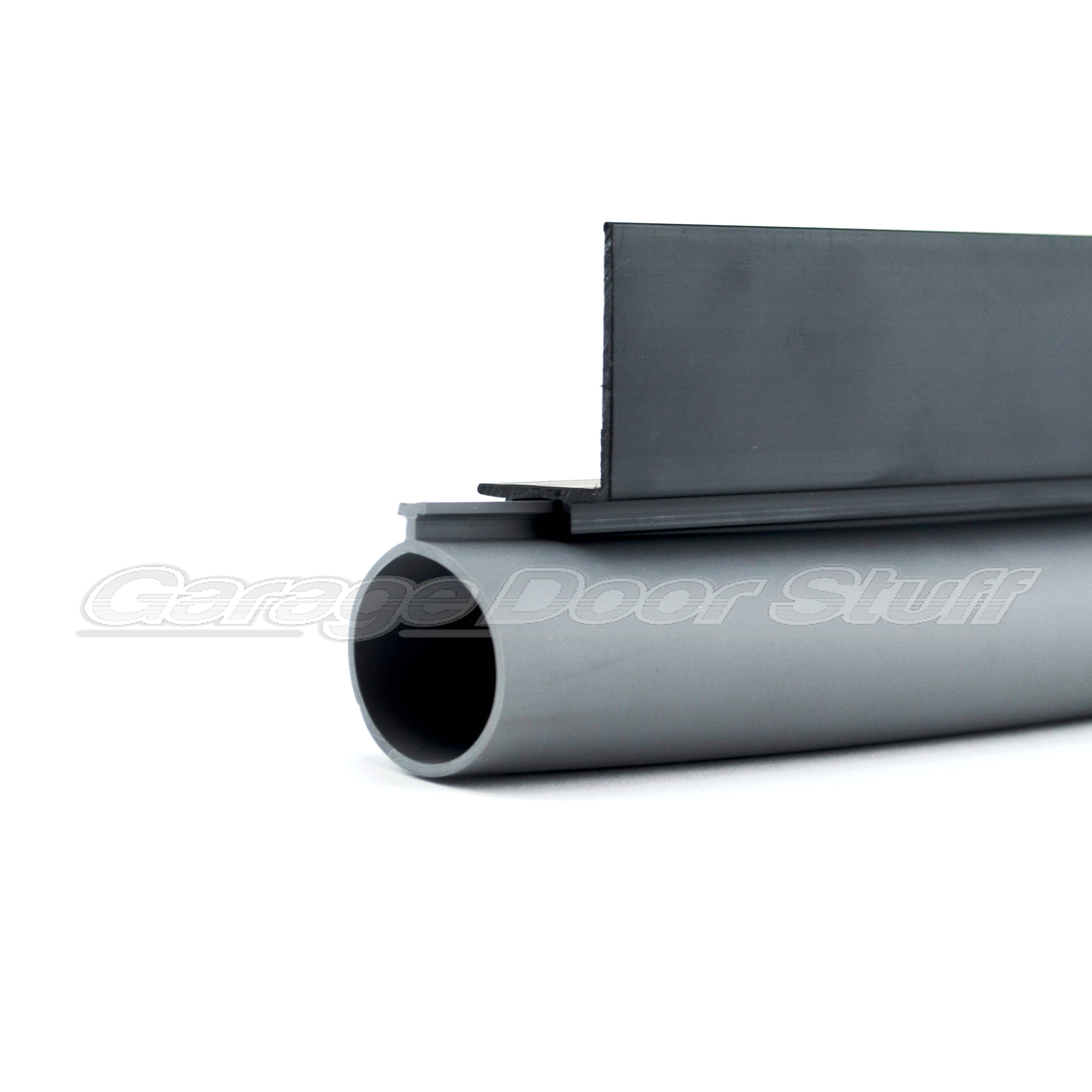

Garage Door Bottom Weather Seal KIT.

Complete kit for the hard to find Wayne Dalton 1″ thick garage doors.

The weather seal included in this kit is much better than the factory seal that came with the door.

We offer this kit in two sizes, one for doors up to 9′ wide, the other for doors 9′ to 18′ wide.

Both the retainer and the weather seal are very easy to cut and trim to an exact fit.

Included in the kit:

9′ foot kit:

2 – 54″ PVC retainers.

1 – 9′-2″ Bulb type weather seal.

Self tapping, stainless steel screws.


18′ kit:

4 – 54″ PVC retainers.

1 – 18′-2″ Bulb type weather seal.

Self tapping, stainless steel screws.


Weather seal is nice and heavy, .075 Thick T – Bulb style

providing a superior seal to original.

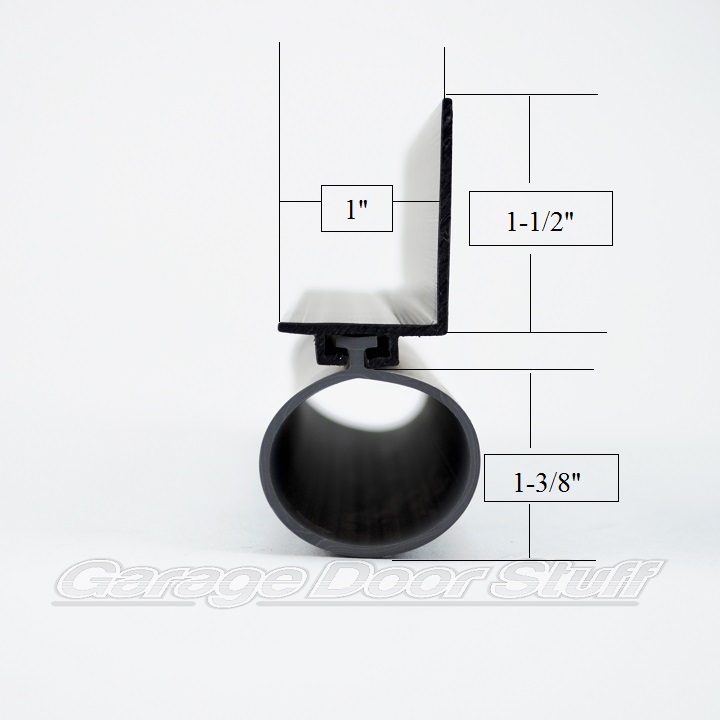

Click to enlarge photos, we have included one that has a measured drawing of this item.

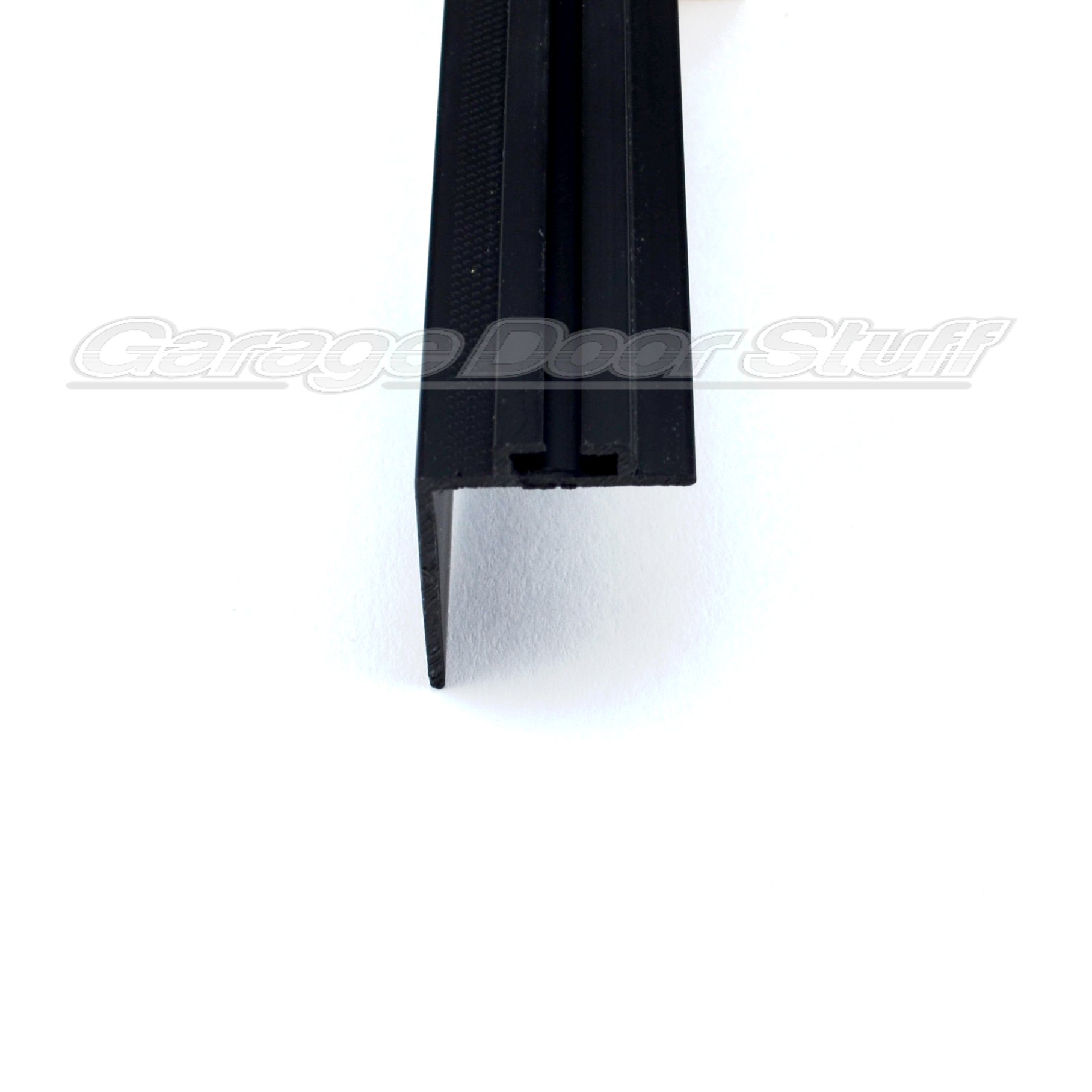

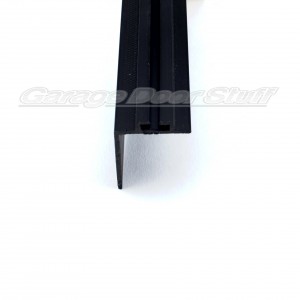

We offer both the retainer and the weather seal as stand alone items as well.


Very easy to install. In some cases you will need to remove the existing retainer, others, this retainer can

be installed over the old retainer.

Cut and install the retainer using the included screws, fastening the long leg of the retainer to the inside of the door.

Slide the weather seal into the bottom channel of the retainer. We suggest running one of the screws into the

retainer pinning the weather seal in place at both ends. Do not stretch the weather seal, leave it loose in the retainer.

Using a lubricant such as WD40 in the channel helps slide the weather seal down the lenght of the channel. It

also helps to have tow people to do this, one to feed the weather seal the other to pull it down the channel.

This is a nice, simple do it yourself project that will pay big dividends.


We carry a full line of garage door weather seal and can help you seal up any garage door

and are glad to help. If you have a non standard situation email or call, send us some photos if possible.

Check out all our weather seal under our store category WEATHER SEAL.
