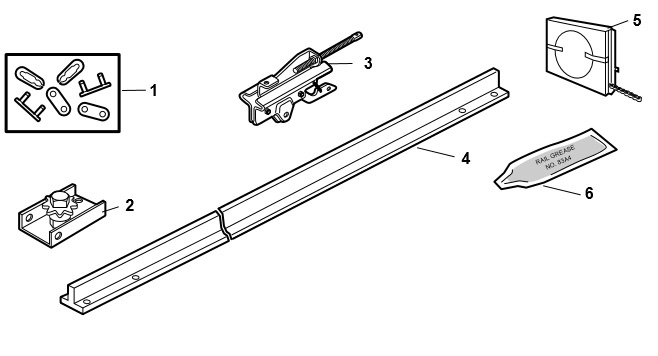

Repair Parts
Key no. |
Part no. |
Description |
| 1 | 1A995 | Master Link kit |
| 2 | 41A4813 | Chain Pulley Bracket |
| 3 | 41A3489 | Complete trolley assembly |
| 4 | 183B99 | One-piece T-rail |
| 5 | 41D3484 | Full Chain Assembly |
| 6 | 83A4 | Rail Grease |

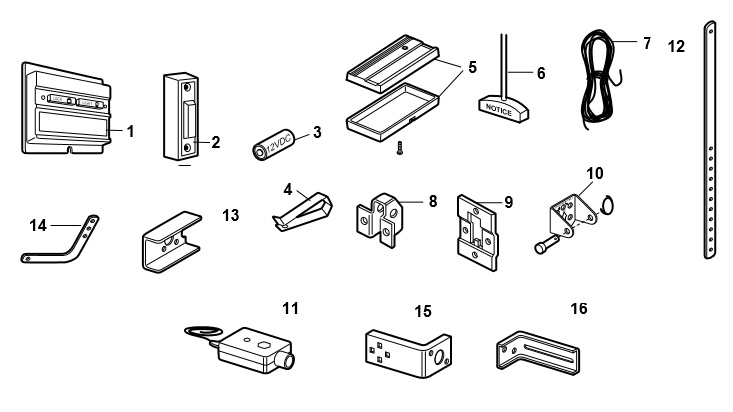

Installation Parts
Key no. |
Part no. |
Description |
| 1 | 41A4202A | Multi-function door control panel |
| 2 | 41A4166 | Lighted door control button |
| 3 | 10A14 | 12V Battery |
| 4 | 29C128 | Transmitter visor clip |
| 5 | 41A3984-7 | Transmitter case, cover & screw only |
| 6 | 41A2828 | Manual Rope & hand assembly |
| 7 | 217A238 | 2-Conductor bell wire, white & white/red |
| 8 | 12B374 | Door bracket |
| 9 | 12B380 | Door bracket plate |
| 10 | 41A4353 | Header bracket w/clevis pin & fastener |
| 11 | 41A4373A | Safety Sensor kit (receiving and sending eyes) with 3′ 2-conductor bell wire attached |
| 12 | 178B34 | Straight door arm section |
| 13 | 12B483 | “C” Wrap bracket |
| 14 | 178B35 | Curved door arm section |
| 15 | 12B484 | Square hole mounting bracket |
| 16 | 12B485 | Slotted mounting bracket |
|
NOT SHOWN |
||
| 41A2770 | Installation hardware bag | |
| 41A4116 | Safety sensor hardware | |
| 114A1905 | Owner’s Manual |
