Garage Door Opener Keypad

$39.99

Garage Door Key Pad

Garage Door Opener Keyless Entry

Description

Garage Door Opener Keypad

WORKS ON ALL GARAGE DOOR OPENERS

NEW IN BOX

DOMINO ENGINEERING KEYLESS ENTRY SYSTEM

Complete system, instructions included

Works on ALL Garage Door Openers

This a wired system that is VERY easy to install and program

The DOMINO GARAGE DOOR KEYPAD is a simple and convenient way to open and close garage doors.

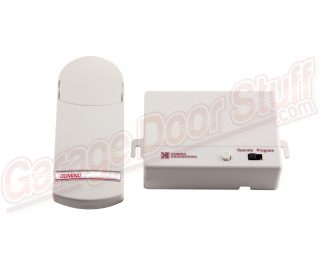

Consisting of an outside mounted keypad and inside control box, the DOMINO GARAGE DOOR KEYPAD features personalized code setting, making the system as easy to program as it is to install.

• Universal Use Compatible with all garage door openers.

• Easy Programming Keypad is quickly programmed in three simple steps.

• Code Security Keypad shuts off for one minute after five wrong entries have been pressed.

•Protective Cover Flip-Up cover design protects the unit against the elements.

• Personalized User Code A 1 through 6 digit code may be chosen, over 1,000,000 possibilities.

• Back Lighting lighted keypad for easy nighttime operation. Additional indicator light provides verification as keys are pressed.

• Low Power Warning / Battery Saver Lights dim to indicate batteries should be replaced soon. Special sleep circuitry conserves battery life.

• Instant Stop After code is entered and garage door opener is activated, the “enter” key may be pressed again to stop or reverse the door, without re-entering the code. The “enter” key remains active for 20 seconds.

• Additional Push Button conveniently located on control box.

Garage Door Keypad Installation/Instructions

Garage Door Opener Keypad

Installation:

1.

Outside: Choose a convenient location to mount the keypad. Drill a ½” (or larger) hole

from outside to inside the garage. Carefully, feed cable from keypad to inside of garage.

Screw keypad to outside surface with 2 screws (included). DO NOT OVER TIGHTEN.

The keypad is meant to “stand off” the surface so moisture can run behind the unit.

2.

Inside:

a. Disconnect power to garage door opener.

b. Connect control box to push button terminals on opener with two low voltage (18-

24 gauge) wires.

[OPTIONAL:

If there is a nearby wall push button already wired to your garage

opener, you can connect the control box to the terminals of this wall push button. ]

b. Strip ¼” insulation from connecting wires, insert and screw wires into the two

terminals marked “OPENER” in control box. There is no polarity on the

connecting wires. Either wire in either terminal is ok.

c. Insert 3 “AA” alkaline batteries (included), observing polarity.

d. Snap keypad cable plug, with locking tab on bottom, into receptacle marked

“KEYPAD” in control box.

e. Mount control box to wall with Styrofoam over batteries. Styrofoam keeps

batteries from vibrating out of position.

f. Reconnect power to garage door opener.

How to Code Keypad:

Step 1. Slide switch to “program” or “on” – (switch is located on control box)

Step 2. Press “

ENTER

Step 3. Press your

code numbers (you can use up to six digit in your code)

Step 4. Press “

ENTER

Step 5. Slide switch to “operate” or “off”

How to use Keypad:

Press your code numbers and press “ENTER”

That is it! Very easy to program and to re program, install a one time usage # with ease.

We are a full service garage door and garage door opener company with the knowledge and desire to help you in any type of garage door or garage door opener repair.  We ship six days a week and we stock what we sell. We only stock professional grade parts, we do not stock any knock off or cheap imitation parts.  Everything we carry is made by and for the Garage Door Industry. All of our vendors stand behind their products so if there is ever any issues with anything we carry, not only do we stand behind the product but the actual manufacture or supplier does as well. We have developed long term relationships with our vendors and we only work with vendors that we trust. We are a family company and were in it for the long haul, we sell only garage door and garage door opener parts, we are here for you before, during and after your garage door or garage door opener repair and we want your project to be a rewarding and satisfying experience 100% of the way.

Thank you for the opportunity!

Garage Door Opener Keypad

Additional information

Weight .8125 lbs
Dimensions 5 x 6 x 1 in
