Garage Door Bottom Weather Stripping

$22.99$169.99

3″, 4″ & 6″ WIDTHS

Overhead Door Bottom Seal

TAYLOR GARAGE DOORS

Clear
SKU: BLACK BEAD Categories: ,

Description

Garage Door Bottom Weather Stripping

Click the link below for an overview of garage door weather seal.

Garage Door Weather Seal Overview

Flexible premium PVC.

Tested to remain flexible to minus 40 degrees.

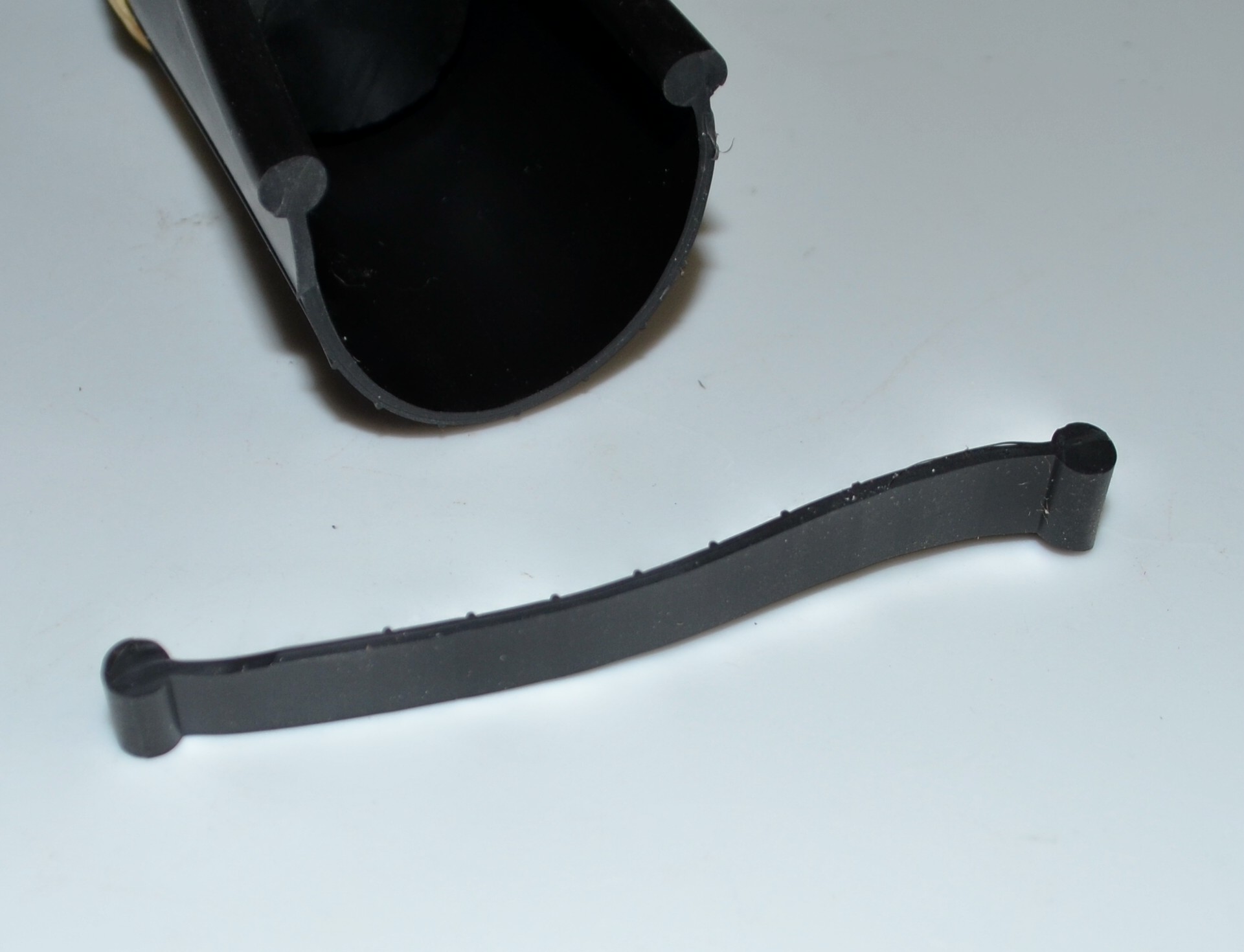

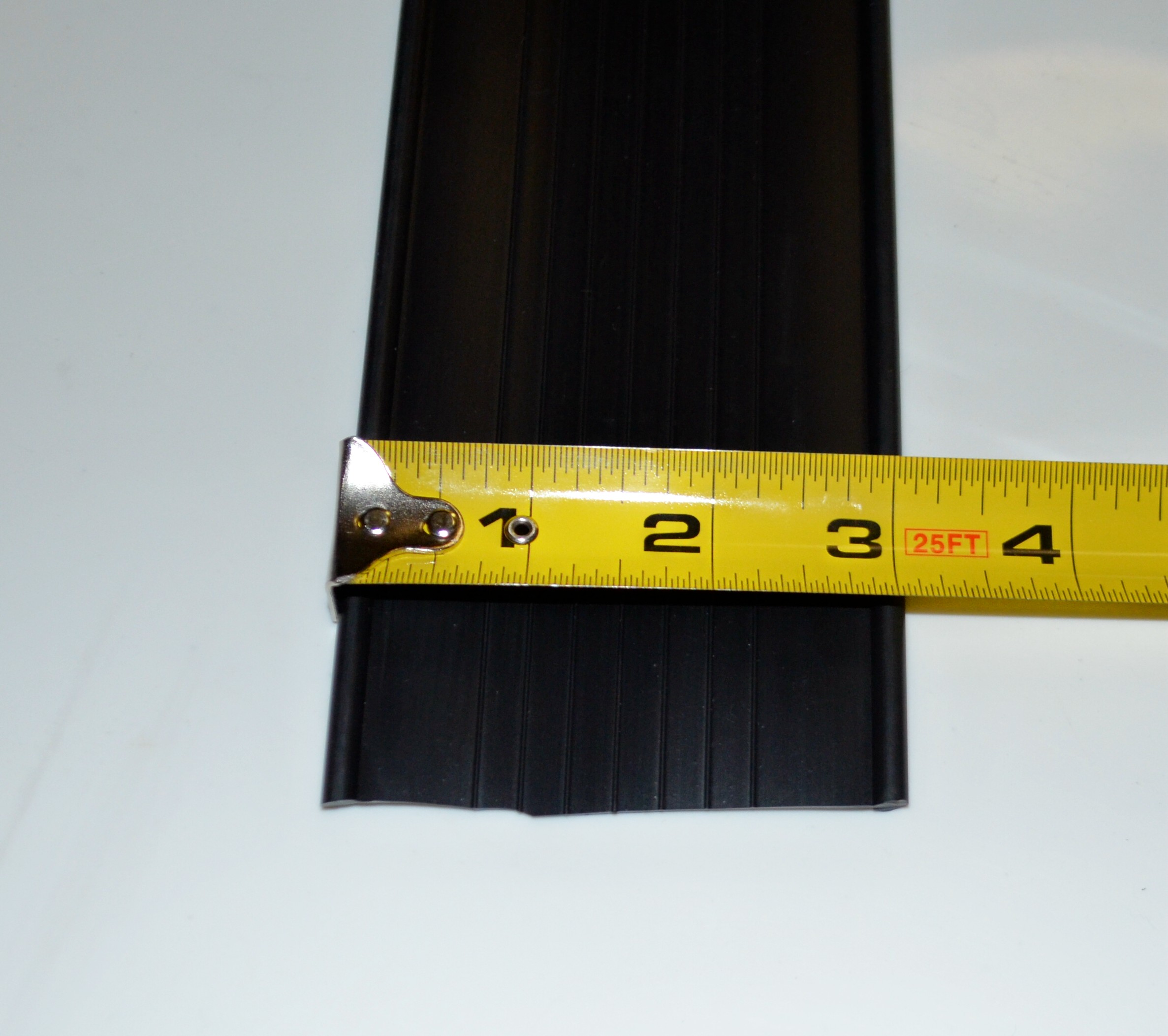

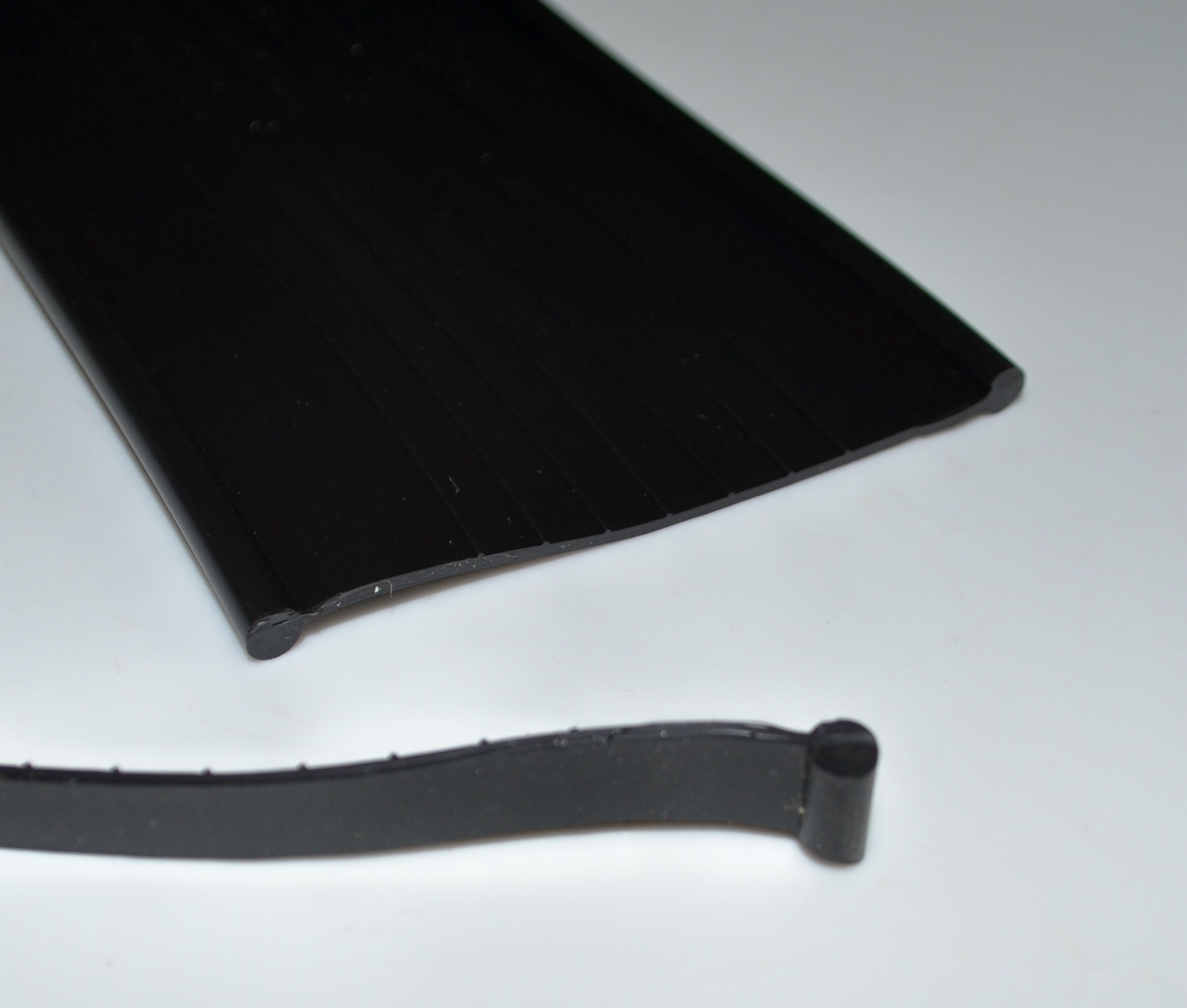

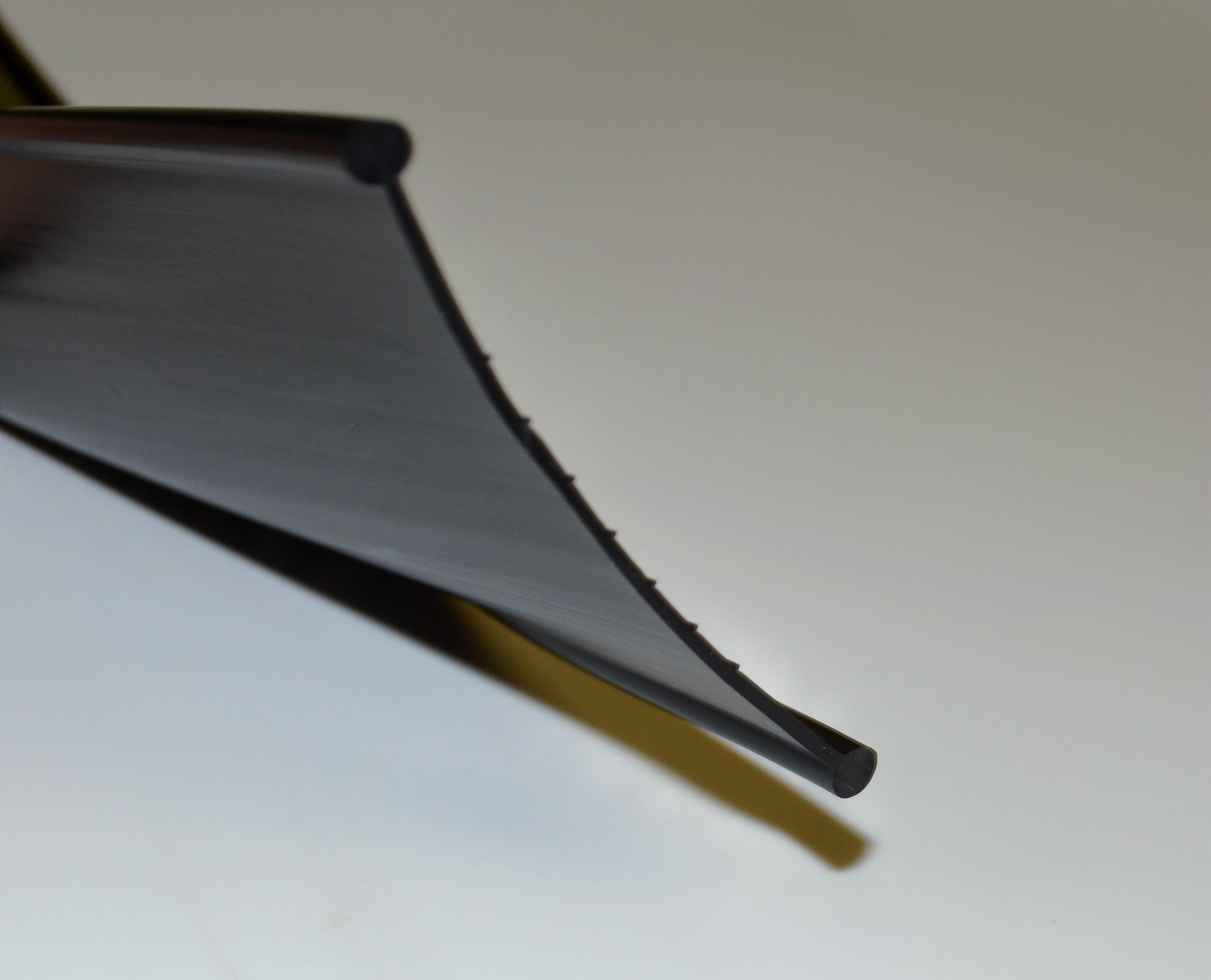

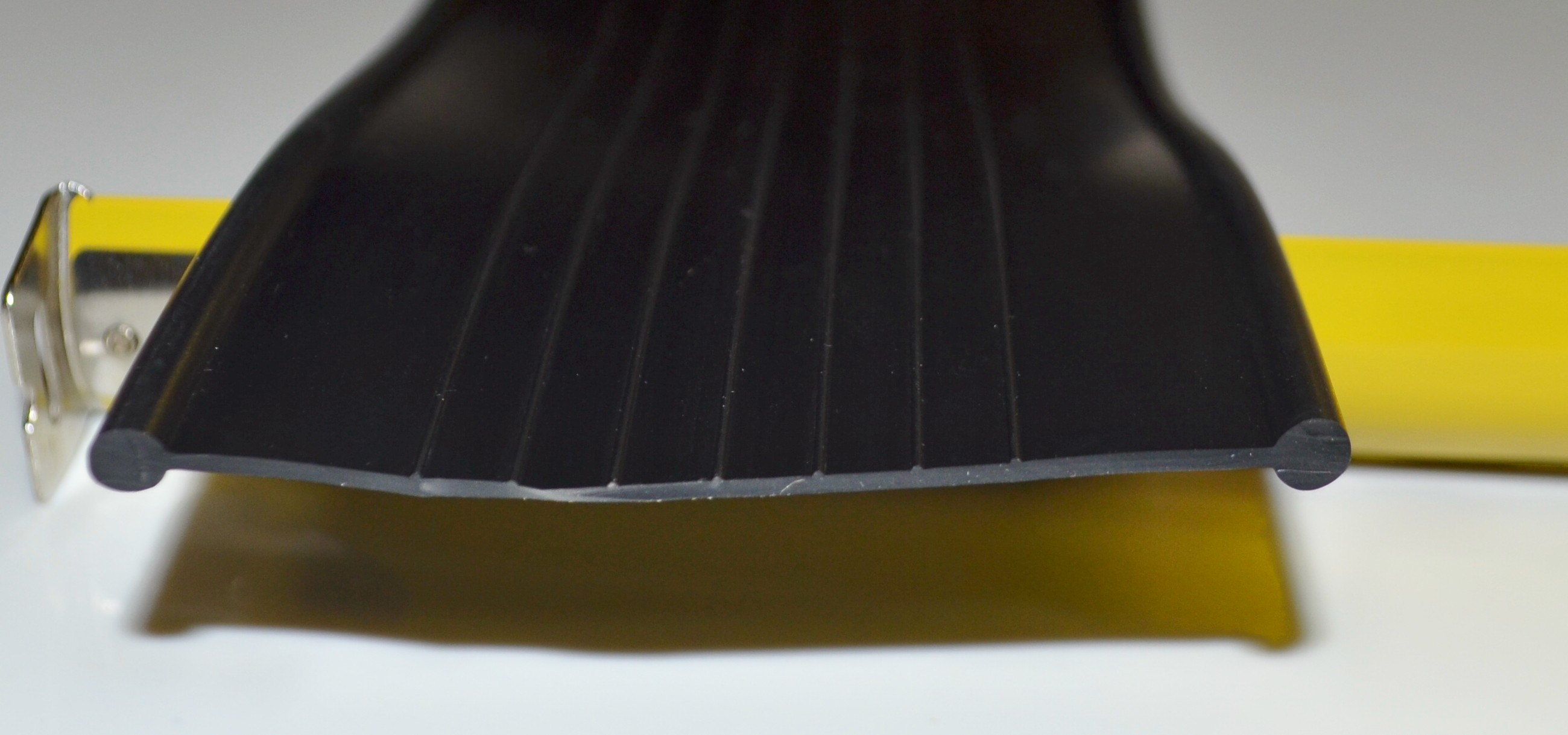

3″, 4″ & 6″  Wide, Round bead ends measure 3/16″ – Black, also available in Gray.

Choose your width and lenght.

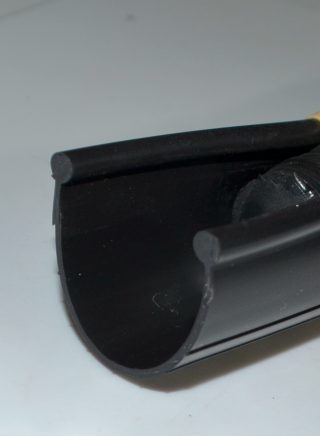

Designed to slide into a round channel on the bottom of the door.

We also stock a smaller bead style seal common for Finish line Garage Doors.

The beads are perfectly round, do not confuse with the similar Wayne Dalton style that is not completely round.

This garage door bottom weather stripping is an exact match to Taylor brand and other garage doors.

All lengths are 2″ minimum longer than lenght stated for a perfect fit.

If you have a situation that requires a wider seal, or if there is a gap issue that

will not be corrected with this standard weather seal, consider replacing the bottom retainer to a

more standard 1/4″ T style. That will allow you to use a wide variety of types and styles

of weather seal. We stock many different bottom retainers and a wide variety of weather seal in the common 1/4″ style.

Easy to install, remove old weather seal, clean and straighten the bottom retainer if needed.

Check the ends of the retainer, they may have been pinched at time of original install, open those ends up if needed.

Spray lubricant into the channels of the retainer. One person guides the seal into the tracks, one person pulls the

weather seal. Do not stretch the weather seal tight, move it along the bottom of the door until it is not

being stressed or stretched, cut off any access and lightly crimp the ends of the channel

to hold the garage door bottom weather stripping in place.



TAYLOR GARAGE DOOR SEAL

OVEREHAD DOOR SEAL

 GARAGE DOOR RUBBER

GARAGE DOOR PART

Additional information

Weight N/A
Dimensions N/A
WIDTH

3" WIDE, 4" WIDE, 6" WIDE

LENGTH

8' LENGTH, 9' LENGTH, 10' LENGTH, 12' LENGTH, 16' LENGTH, 18' LENGTH, 20' LENGTH, 50' LENGTH, 100' LENGTH
