Garage Door Lock Bar Assembly

$27.99

Garage Door Lock Rod

Garage Door Lock Bar

Garage Door Parts

SKU: LR-2D Category:

Description

Garage Door Lock Bar Assembly

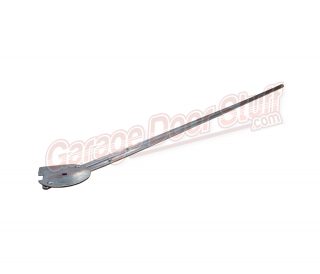

Solid Lock Rod / Lock Bar

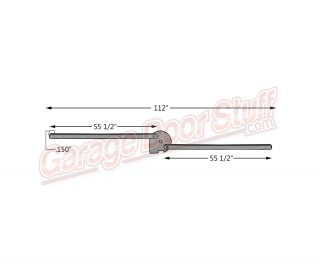

2 – 55-1/2″ Long X 5/8″ Wide X 1/8″ Thick – solid steel, galvanized zink finish Lock Bars / Lock Rods.

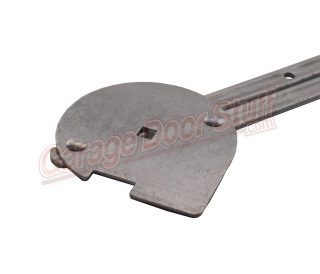

Rods are riveted to a lock disc.

For lock rod guides, click here – GARAGE DOOR LOCK ROD GUIDE



Here is the lock rod disc w/o the rod –  LOCK ROD DISC

Used on a variety of different types and styles of garage door locks. Typically garage door locks that utilize rods/bars are more robust than garage door locks using cable or chain.

If you need a lock rod that is longer than 55-1/2″, use two, over lap the rods roughly 6″, drill two 1/4″ holes and bolt and nut them together, purchase an additional single lock rod, see link below.



We also carry two other lock rod options, we have a single rod and we have a single rod attached to a lock disc.

To see the single lock rod, click here – LOCK ROD

To see the single rod attached to a lock disc, click here – LOCK ROD – TORSION

If the door is torsion spring, a spring or springs would on a bar above the door, you only need to lock or secure one side of the door, you need a single rod type.

If the door is extension spring, springs above the horizontal tracks running front to back, you need to lock both sides of the door, you need a double rod type.



We stock many garage door lock kits and parts. Typically we have the parts needed to repair any common garage door lock. If you need a complete lock kit we have several options

Click here – GARAGE DOOR LOCK KITS

If you need any help determining the correct lock kit or lock part, drop us an email or call.  Email us some photos and we can more times than not link you right to the correct item.

Garage door lock bar assembly

Additional information

Weight 3 lbs
Dimensions 57 x 3 x 2 in
