Free Shipping On This Item

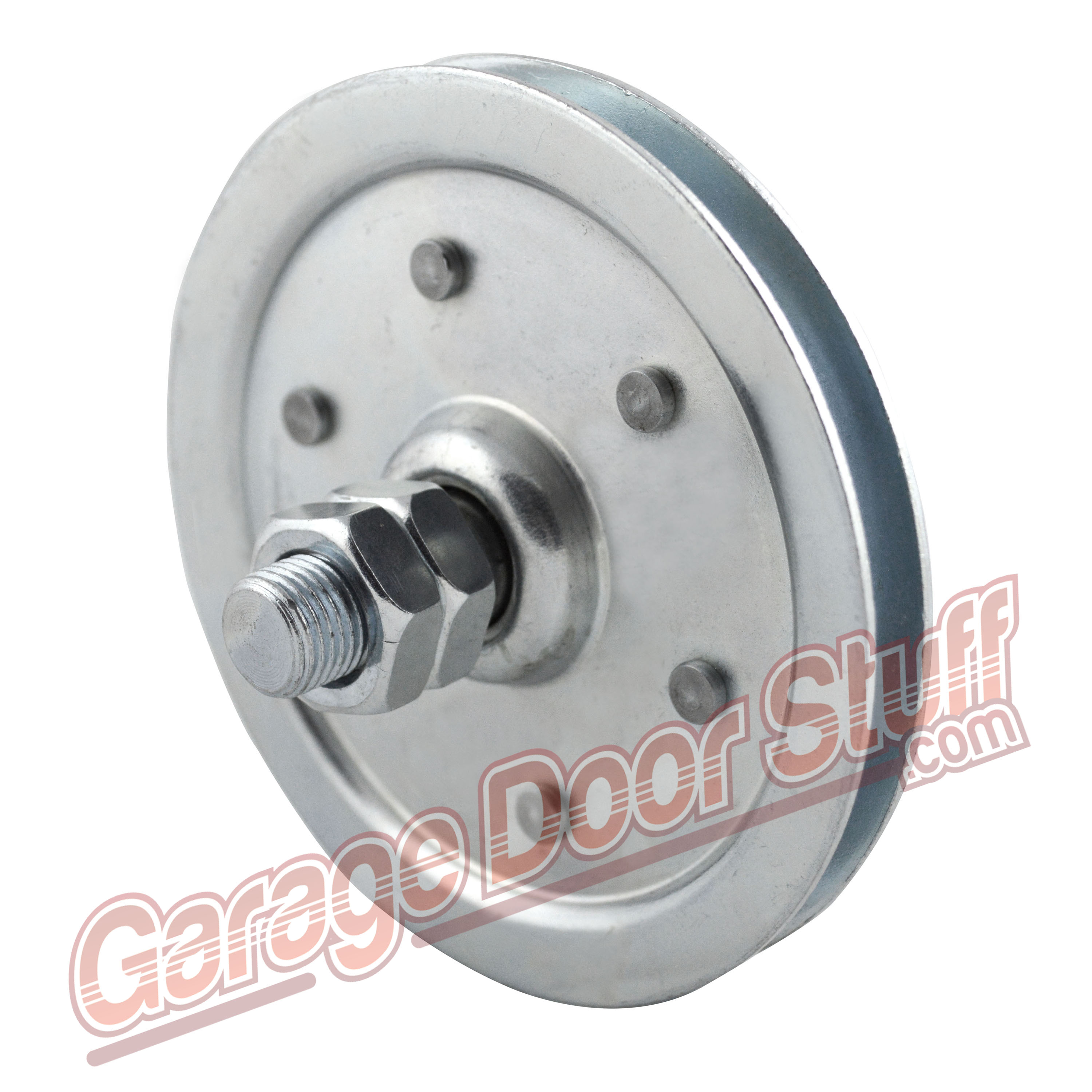

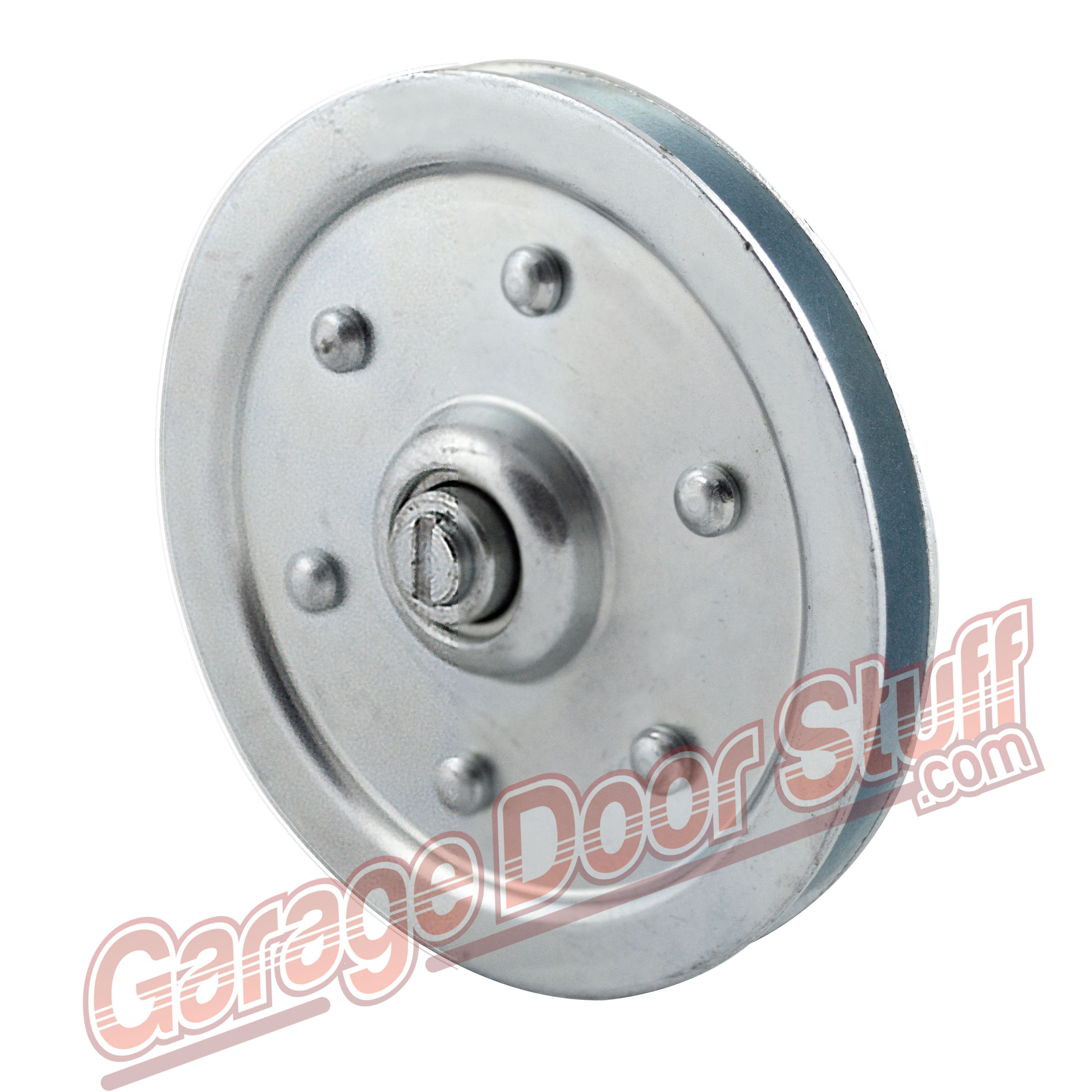

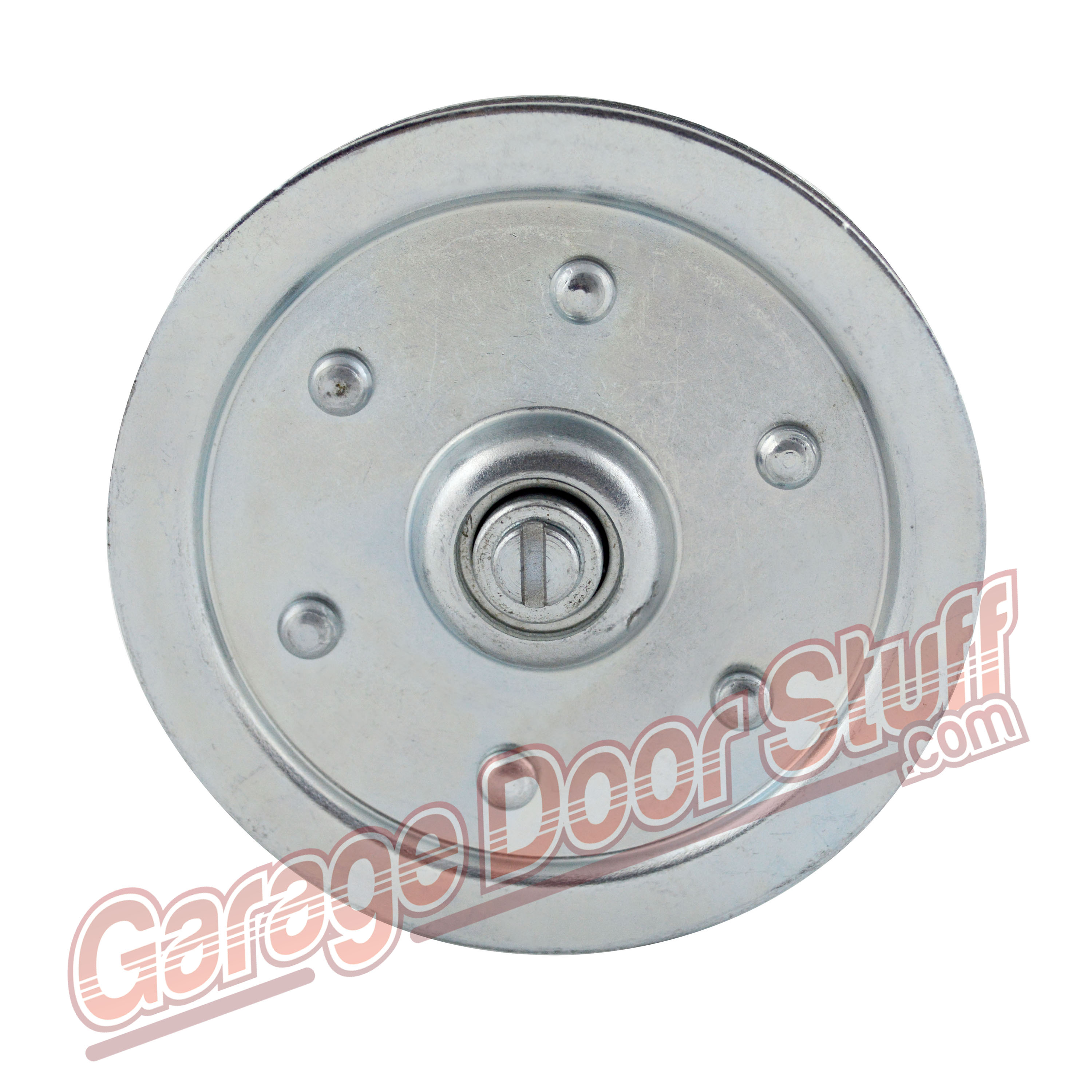

Sheave Pulley

Garage Door Pulley

SKU: 4PLYWSTUD Category:



Garage Door Pulley

Sheave Pulley

4″  Pulley



1/2″ Bolt pressed into sealed ball bearing center.

4-5/16″ Across

Sealed ball bearing pressed into the sheave.

Accepts up to 1/4″ Cable

Rated at 200LBS @35K 12′ tall door cycles.


We stock other pulleys here – SHEAVE

We stock cable in any length up to 500′ in:

1/16″, 3/32″, 1/8″, 5/32″, 3/16″ & 1/4″

See our cable and cable fittings here – GARAGE DOOR CABLE


Comes with a pressed in place 1/2″ bolt with two nuts, nuts take a 7/8 wrench or socket. The bolt is pressed into a sealed bearing. This bolt is not removable. If you need a 4″ sheave w/o a fixed bolt, we carry that, click the link above.


This is sheave is used as a fixed sheave in most cases, the pressed in place bolt makes it convenient for many applications where a fixed or stud pulley is needed.

Commonly referred to as a Pulley and or a Sheave this is an item that has been around a very long time and as stated has near unlimited uses and potential. If you need a heavy duty pulley this may be just what you need. These are good to have on hand, great for rigging up material lifts using rope but typically used with cable.

We stock what we sell and we ship as fast as possible, same or next working day six days a week in fact. We know you need your items and we take pride in shipping all our orders as we can. If you have any questions about an item or if you have any special needs give us a call or drop us an email and we will be glad to help. If you have a special project and perhaps some of our items can be used, send us some drawings if you need some feedback or input. Many of the things we carry can be used for things other than garage doors, garage door openers and gates.


Additional information

Weight 1 lbs
Dimensions 4 x 4 x 2 in
4" Pulley

1 Pulley, 2 Pulleys, 4 Pulleys, 10 Pulleys, 25 Pulleys, 50 Pulleys, 100 Pulleys
