Garage Door Seal Round Bead
Garage door bottom seal
RUBBER – not Vinyl

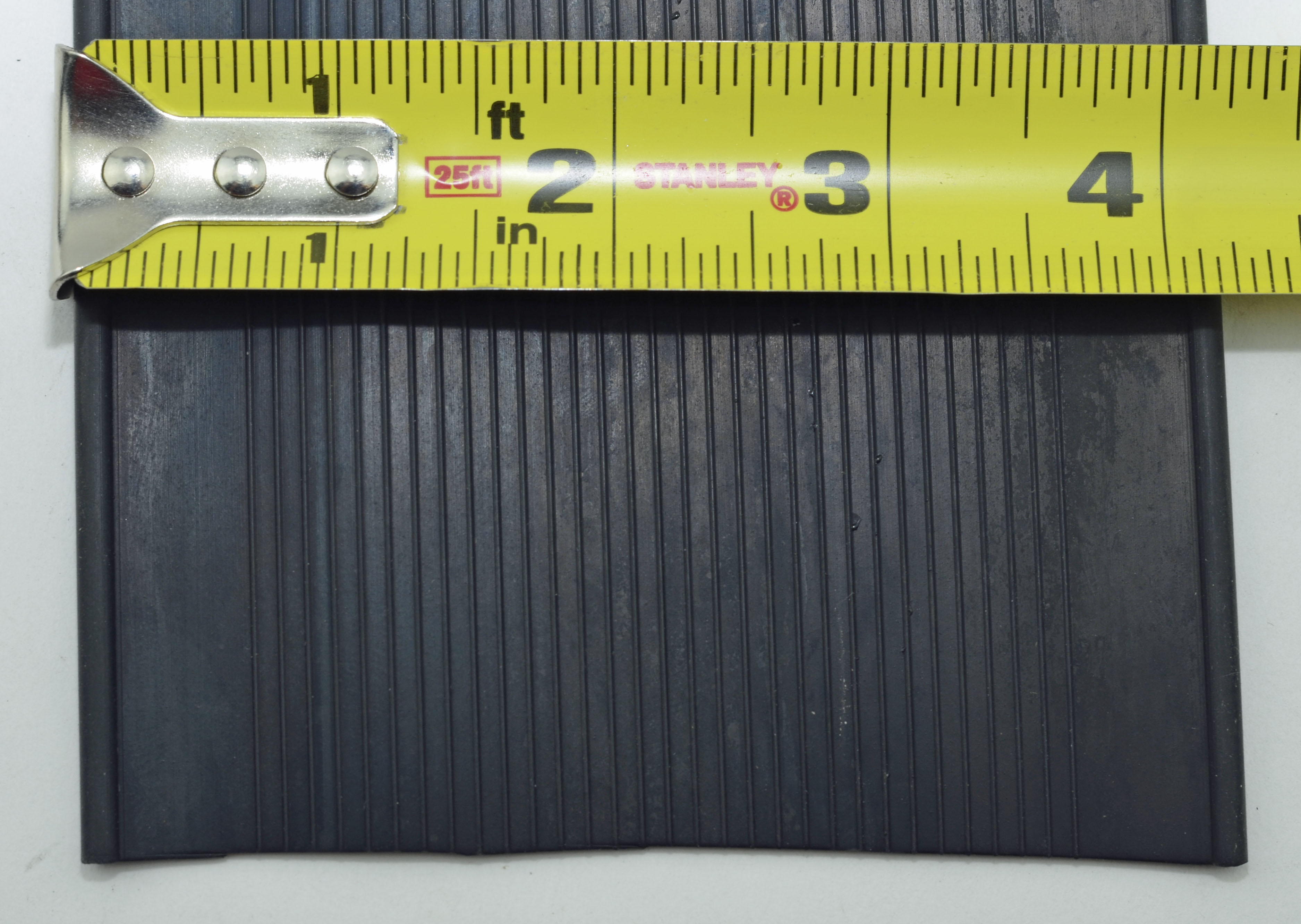

Bead end measures .140 (1/8″ Approx)
This seal is the more uncommon .140″ bead
Used on Finishline and other brand garage doors.
The bead on this seal is smaller than the more common 3/16″ bead used on Taylor and other brand doors.
3/16″ Is the most common bead size, this is smaller.
Please measure the bead of the existing seal.

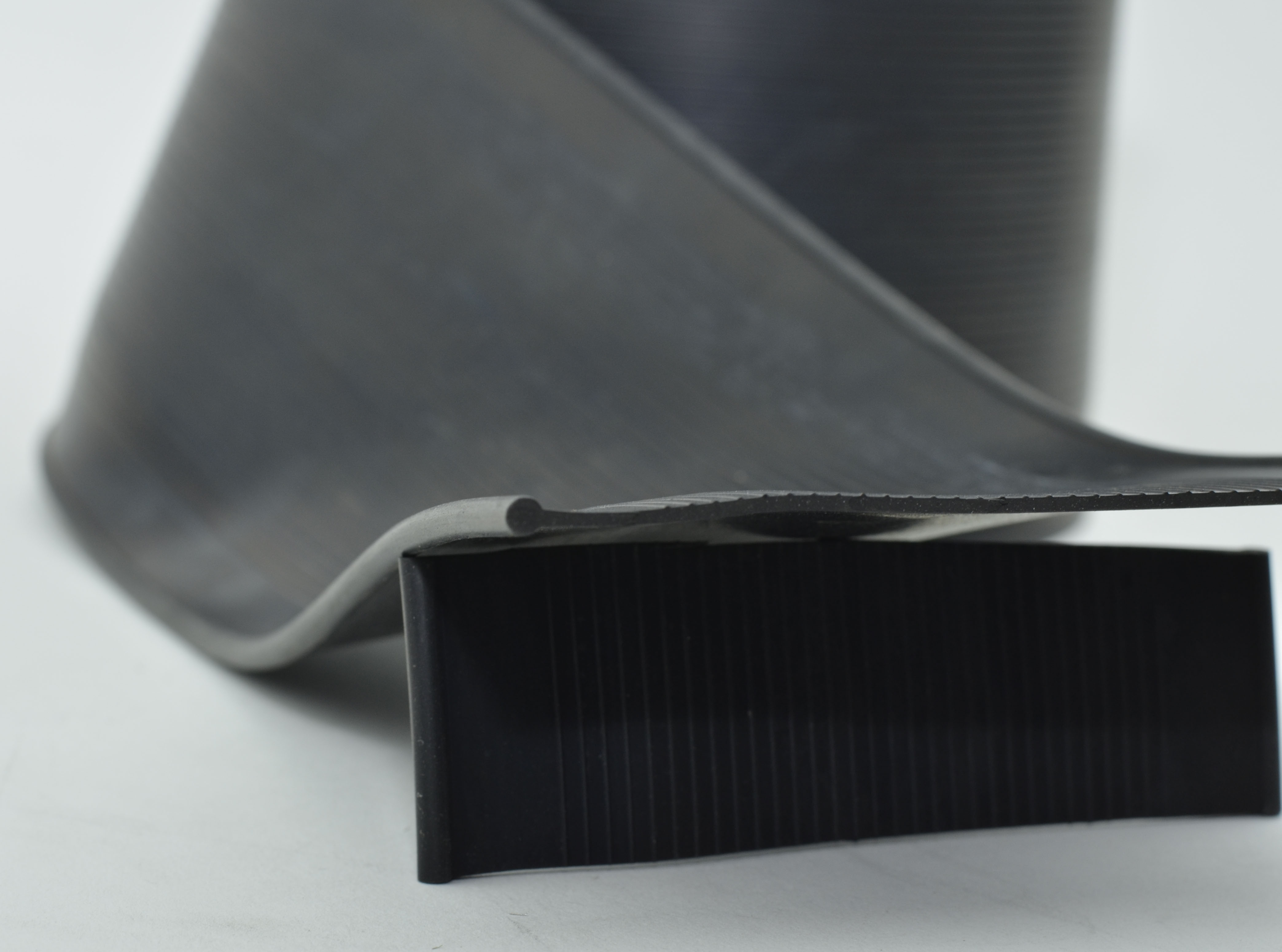

Designed to slide into a round track on the bottom of the garage door.
For Finishline and other brand Garage Doors
Perfectly round on the ends.
All lengths are 2” minimum longer than the length listed.
Easy to install, one person guides seal into the track, the second person pulls.
Lubricate channel with a WD40 type product to facilitate sliding the seal into the channels.
Ribbed side to the floor, ribs helps prevent freezing to the floor.
Provides better conformity to irregular floor situations.
• Stays flexible below Zeroº
• Seals against snow, water, dirt and wind.
It is possible to convert from this style of weather seal to the more common T style U shape simply by
replacing the retainer on the bottom of the garage door. If you have an uneven floor or other issues sealing the
garage door to the floor that this style of weather seal will not accommodate, consider replacing the retainer.
There is a wide variety of weather seal available int the T style, U shape.
Different widths, thickness, rubber and vinyl. If your door is not sealing the floor and this is the type of seal that
is on the door we can help you solve that issue.
Browse our store under weather seal to see a variety of options.
